DEMO_febio_0028_sphere_indentation_friction_twist
Below is a demonstration for:
- Building geometry for a slab with hexahedral elements, and a triangulated sphere.
- Defining the boundary conditions
- Coding the febio structure
- Running the model
- Importing and visualizing the displacement results
Contents
- Keywords
- Plot settings
- Control parameters
- Creating model geometry and mesh
- Creating triangulated sphere surface model
- Joining node sets
- Define contact surfaces
- Define boundary conditions
- Defining the FEBio input structure
- Quick viewing of the FEBio input file structure
- Exporting the FEBio input file
- Running the FEBio analysis
- Import FEBio results
Keywords
- febio_spec version 4.0
- febio, FEBio
- indentation
- contact, sliding, sticky, friction
- rigid body constraints
- hexahedral elements, hex8
- triangular elements, tri3
- slab, block, rectangular
- sphere
- static, solid
- hyperelastic, Ogden
- displacement logfile
- stress logfile
clear; close all; clc;
Plot settings
fontSize=15; faceAlpha1=0.8; faceAlpha2=0.3; markerSize=40; lineWidth=3;
Control parameters
% Path names defaultFolder = fileparts(fileparts(mfilename('fullpath'))); savePath=fullfile(defaultFolder,'data','temp'); % Defining file names febioFebFileNamePart='tempModel'; febioFebFileName=fullfile(savePath,[febioFebFileNamePart,'.feb']); %FEB file name febioLogFileName=[febioFebFileNamePart,'.txt']; %FEBio log file name febioLogFileName_disp=[febioFebFileNamePart,'_disp_out.txt']; %Log file name for exporting displacement febioLogFileName_sed=[febioFebFileNamePart,'_sed_out.txt']; %Log file name for exporting strain energy density %Sphere parameters numRefineStepsSphere=4; sphereRadius=4; %Specifying dimensions and number of elements for slab sampleHeight=sphereRadius*2; %Height sampleWidth=sampleHeight; %Width sampleThickness=sampleHeight; %Thickness pointSpacings=1*ones(1,3); %Desired point spacing between nodes numElementsWidth=round(sampleWidth/pointSpacings(1)); %Number of elemens in dir 1 numElementsThickness=round(sampleThickness/pointSpacings(2)); %Number of elemens in dir 2 numElementsHeight=round(sampleHeight/pointSpacings(3)); %Number of elemens in dir 3 %Define applied displacement sphereDisplacement=0.5*sampleHeight; lcDisp_time=linspace(0,1,50); %Load curve time for twist lcDisp_mag=lcDisp_time; %Load curve variation for twist %Define prescribed rotation prescribedRotation=pi/2; lcTwist_time=linspace(0,1,50); %Load curve time for twist lcTwist_mag=(1-cos(lcTwist_time*2*pi))/2; %Load curve variation for twist %Material parameter set c1=1e-3; %Shear-modulus-like parameter m1=2; %Material parameter setting degree of non-linearity k_factor=1e2; %Bulk modulus factor k=c1*k_factor; %Bulk modulus % FEA control settings numTimeSteps=10; %Number of time steps desired max_refs=25; %Max reforms max_ups=0; %Set to zero to use full-Newton iterations opt_iter=10; %Optimum number of iterations max_retries=5; %Maximum number of retires dtmin=(1/numTimeSteps)/100; %Minimum time step size dtmax=1/numTimeSteps; %Maximum time step size symmetric_stiffness=0; runMode='external';% 'internal' or 'external' %Contact parameters contactInitialOffset=0.01; contactPenalty=100; fric_coeff=0.25; laugon=0; minaug=1; maxaug=10;
Creating model geometry and mesh
A box is created with tri-linear hexahedral (hex8) elements using the hexMeshBox function. The function offers the boundary faces with seperate labels for the top, bottom, left, right, front, and back sides. As such these can be used to define boundary conditions on the exterior.
% Create a box with hexahedral elements beamDimensions=[sampleWidth sampleThickness sampleHeight]; %Dimensions beamElementNumbers=[numElementsWidth numElementsThickness numElementsHeight]; %Number of elements outputStructType=2; %A structure compatible with mesh view [meshStruct]=hexMeshBox(beamDimensions,beamElementNumbers,outputStructType); %Access elements, nodes, and faces from the structure E1=meshStruct.elements; %The elements V1=meshStruct.nodes; %The nodes (vertices) Fb1=meshStruct.facesBoundary; %The boundary faces Cb1=meshStruct.boundaryMarker; %The "colors" or labels for the boundary faces elementMaterialIndices=ones(size(E1,1),1); %Element material indices
Creating triangulated sphere surface model
[E2,V2]=quadSphere(numRefineStepsSphere,sphereRadius,2);
%Offset indentor
minZ=min(V2(:,3));
V2(:,3)=V2(:,3)-minZ+(sampleHeight/2)+contactInitialOffset;
center_of_mass=mean(V2,1);

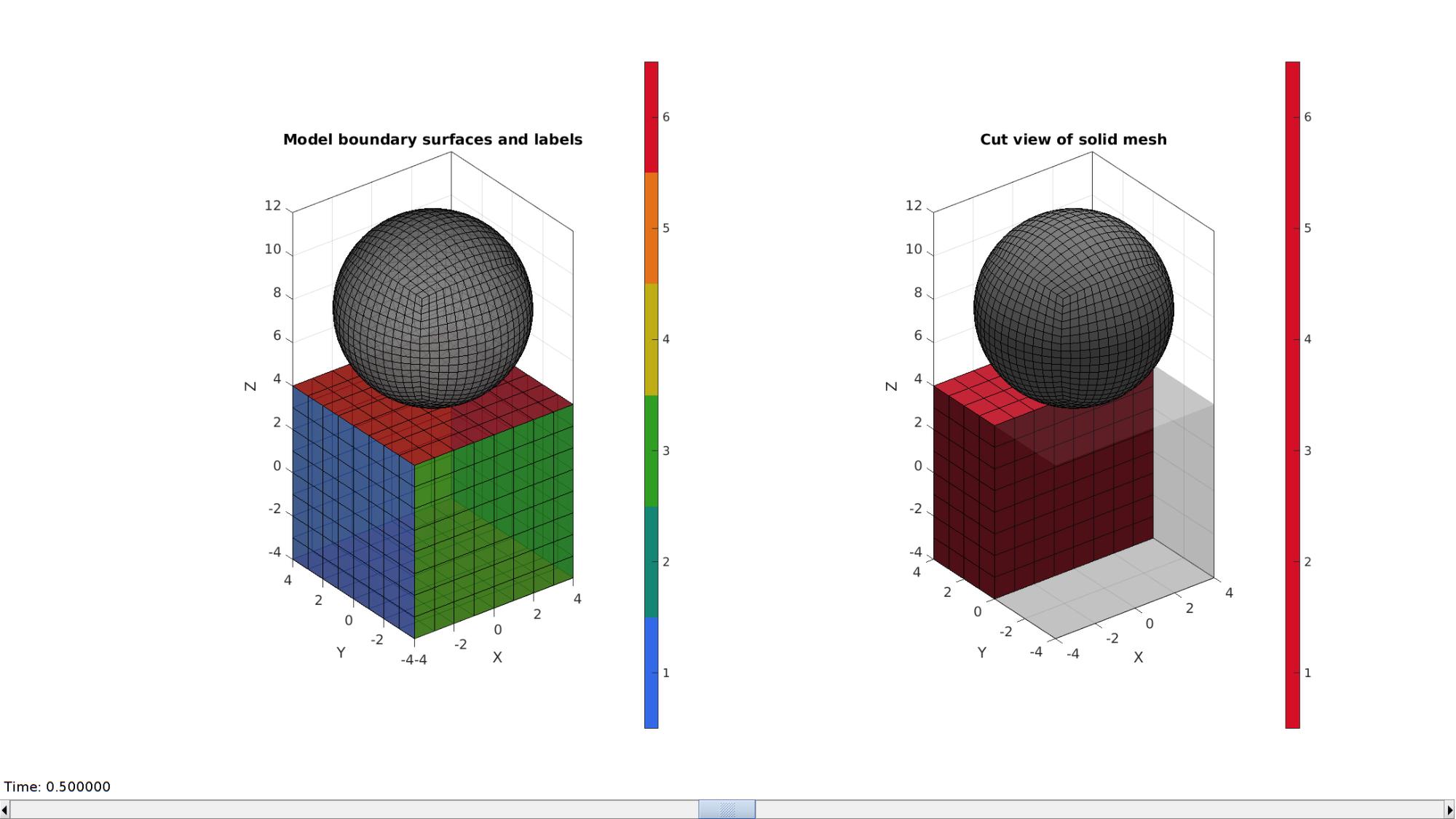

Plotting model boundary surfaces and a cut view
hFig=cFigure; subplot(1,2,1); hold on; title('Model boundary surfaces and labels','FontSize',fontSize); gpatch(Fb1,V1,Cb1,'k',faceAlpha1); gpatch(E2,V2,'kw','k',faceAlpha1); colormap(gjet(6)); icolorbar; axisGeom(gca,fontSize); camlight headlight; hs=subplot(1,2,2); hold on; title('Cut view of solid mesh','FontSize',fontSize); optionStruct.hFig=[hFig hs]; gpatch(E2,V2,'kw','k',1); meshView(meshStruct,optionStruct); axisGeom(gca,fontSize); drawnow;
Joining node sets
V=[V1;V2;]; %Combined node sets E2=E2+size(V1,1); %Fixed element indices

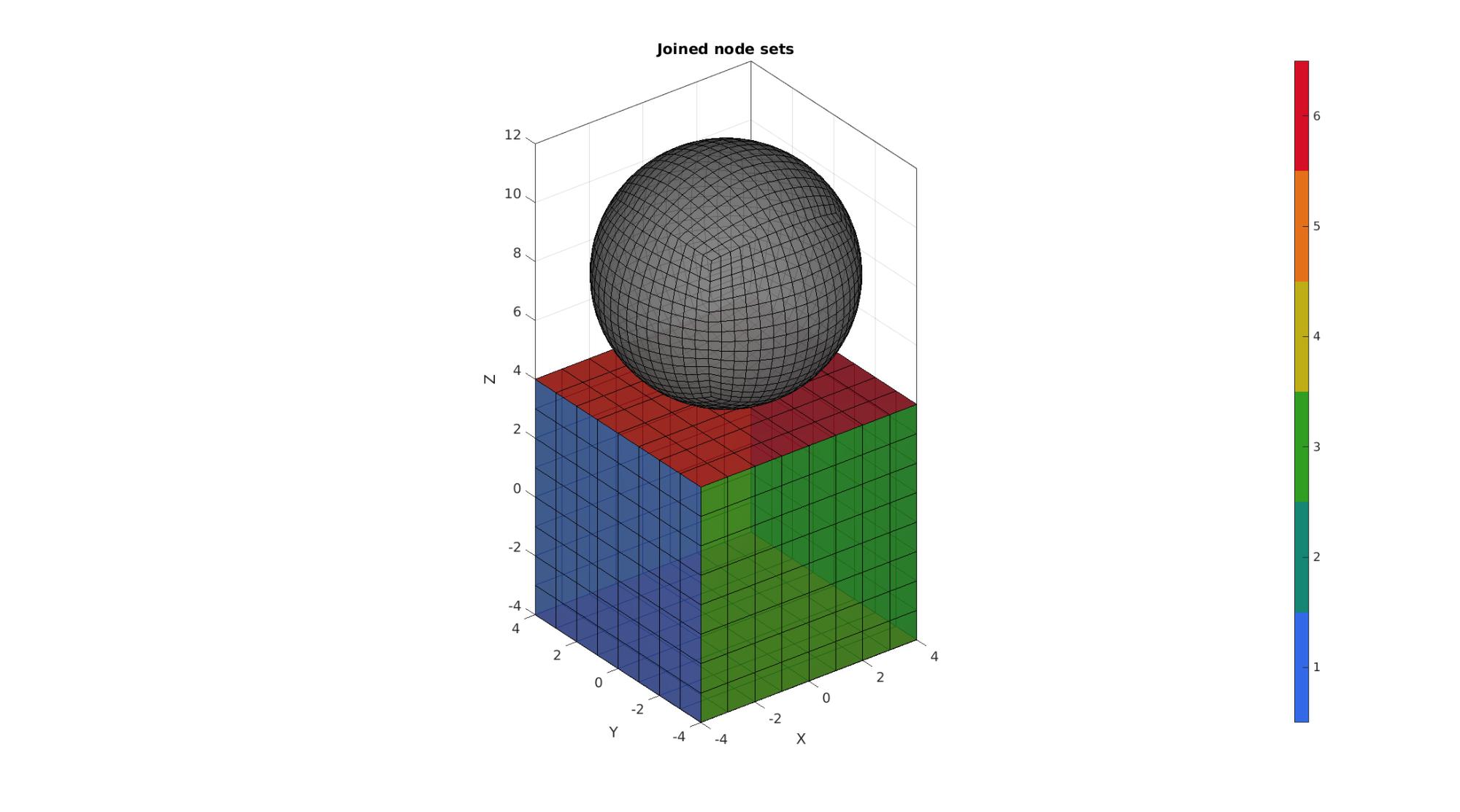

Plotting joined geometry
cFigure; title('Joined node sets','FontSize',fontSize); xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize); hold on; gpatch(Fb1,V,Cb1,'k',faceAlpha1); gpatch(E2,V,'kw','k',faceAlpha1); colormap(gjet(6)); icolorbar; axisGeom(gca,fontSize); camlight headlight; drawnow;

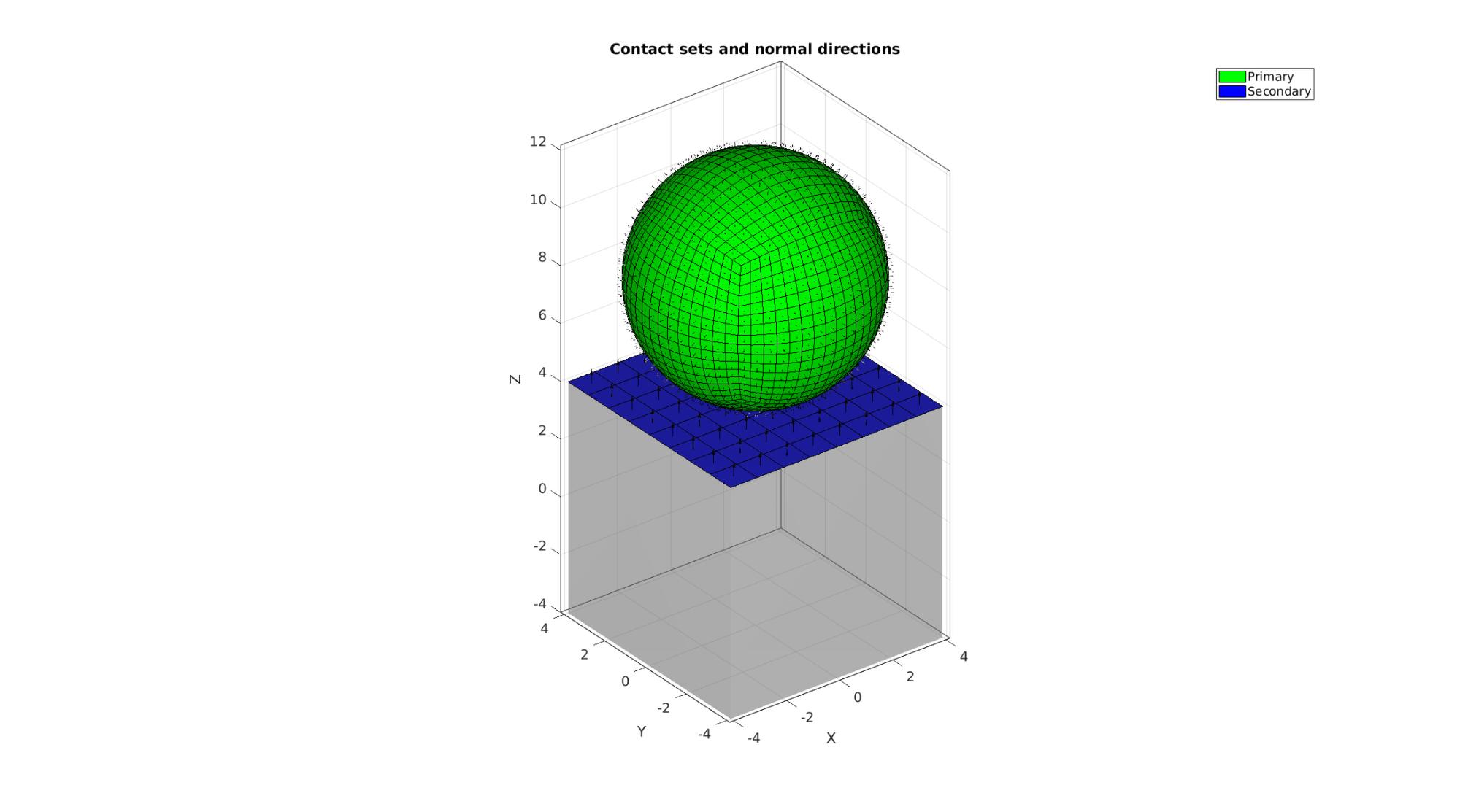

Define contact surfaces
% The rigid surface of the sphere F_contact_secondary=E2; % The deformable surface of the slab F_contact_primary=Fb1(Cb1==6,:); % Plotting surface models cFigure; hold on; title('Contact sets and normal directions','FontSize',fontSize); gpatch(Fb1,V,'kw','none',faceAlpha2); hl(1)=gpatch(F_contact_secondary,V,'g','k',1); patchNormPlot(F_contact_secondary,V); hl(2)=gpatch(F_contact_primary,V,'b','k',1); patchNormPlot(F_contact_primary,V); legend(hl,{'Primary','Secondary'}); axisGeom(gca,fontSize); camlight headlight; drawnow;
Define boundary conditions
%Supported nodes
bcSupportList=unique(Fb1(Cb1==5,:));

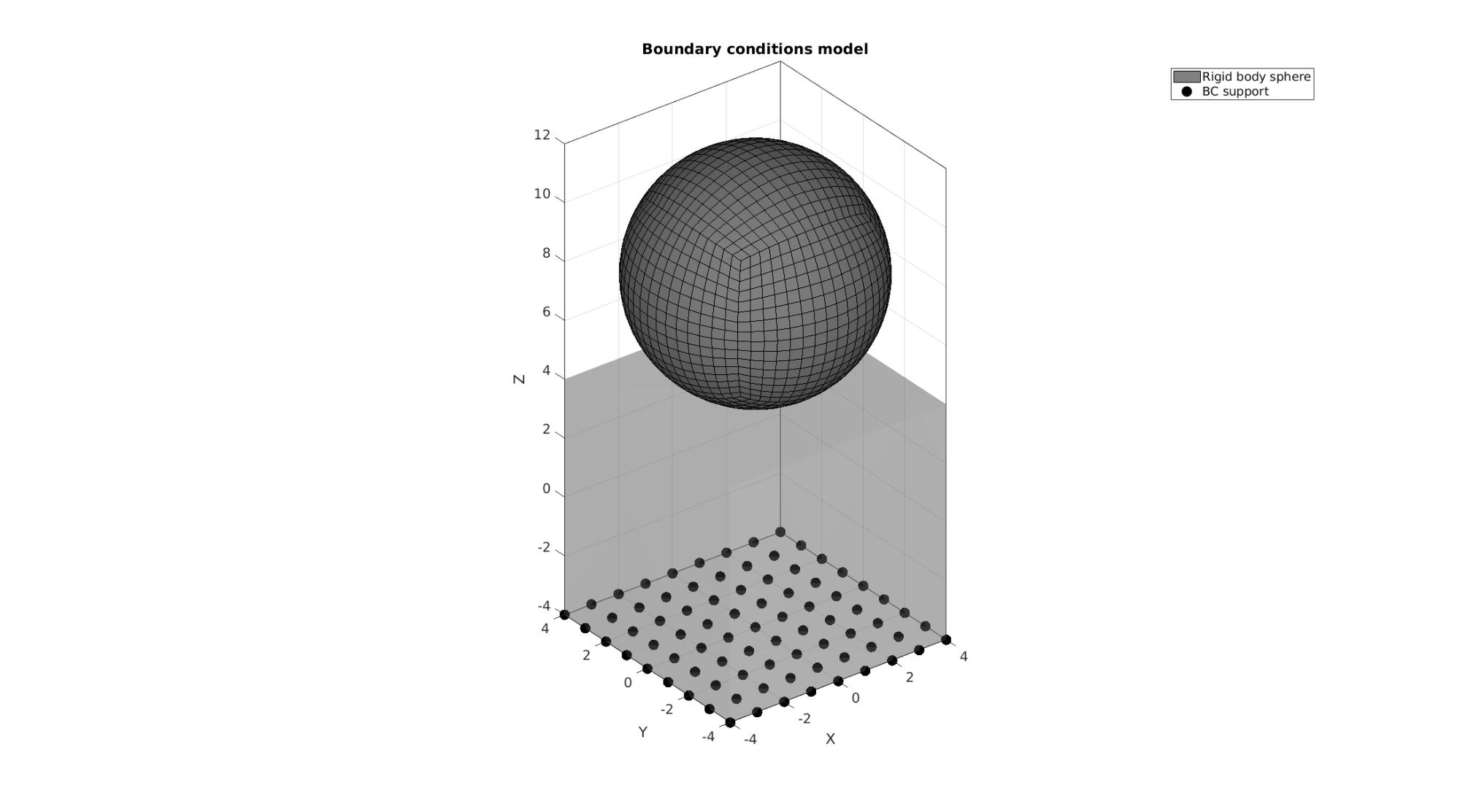

Visualize BC's
hf=cFigure; title('Boundary conditions model','FontSize',fontSize); xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize); hold on; gpatch(Fb1,V,'kw','none',faceAlpha2); hl2(1)=gpatch(E2,V,'kw','k',1); hl2(2)=plotV(V(bcSupportList,:),'k.','MarkerSize',markerSize); legend(hl2,{'Rigid body sphere','BC support'}); axisGeom(gca,fontSize); camlight headlight; drawnow;

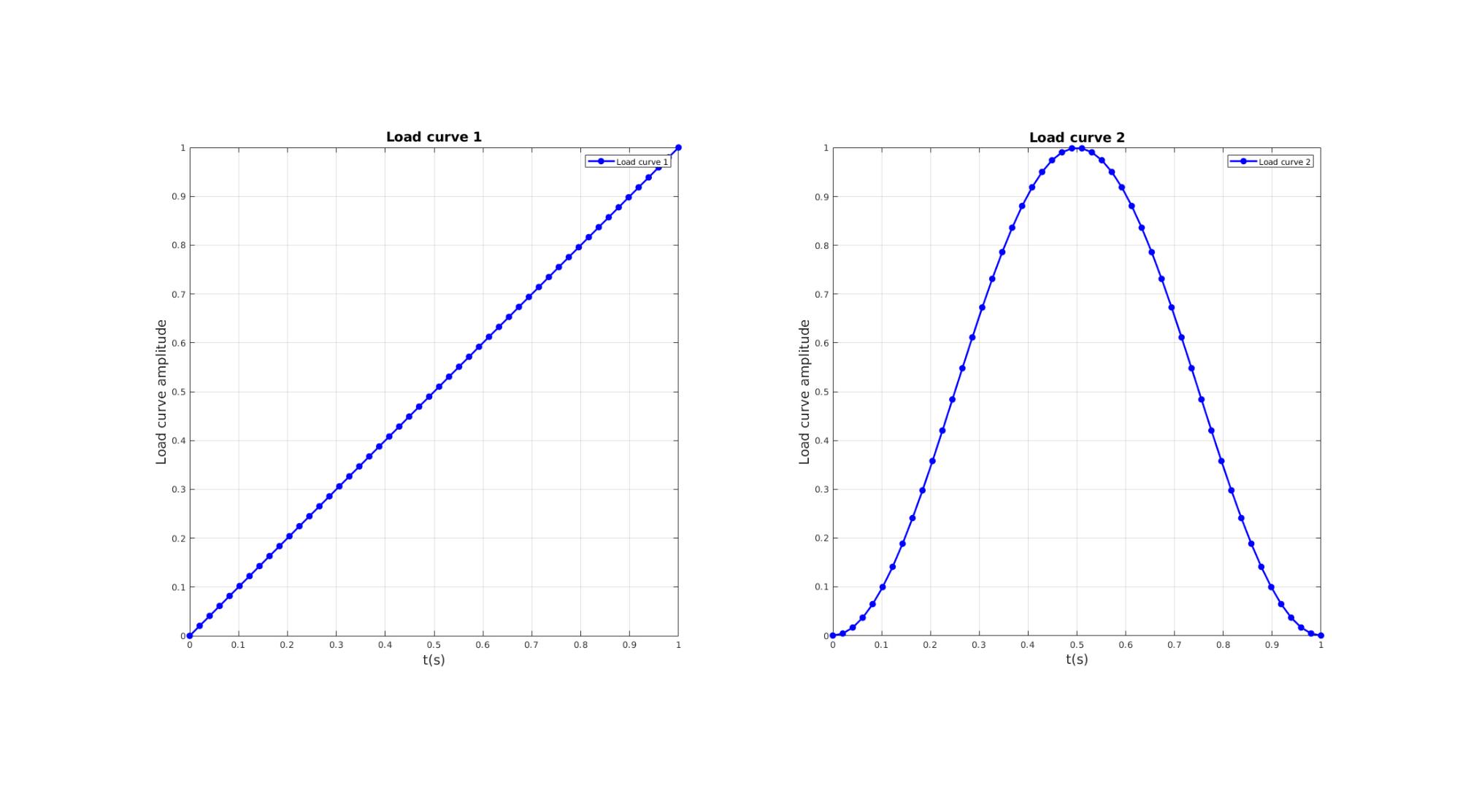

Show load curve
cFigure; subplot(1,2,1); hold on; title('Load curve 1','FontSize',fontSize); xlabel('t(s)','FontSize',fontSize); ylabel('Load curve amplitude','FontSize',fontSize); hp=plot(lcDisp_time,lcDisp_mag,'b.-','LineWidth',2,'MarkerSize',25); legend(hp,{'Load curve 1'}); axis square; grid on; box on; subplot(1,2,2); hold on; title('Load curve 2','FontSize',fontSize); xlabel('t(s)','FontSize',fontSize); ylabel('Load curve amplitude','FontSize',fontSize); hp=plot(lcTwist_time,lcTwist_mag,'b.-','LineWidth',2,'MarkerSize',25); legend(hp,{'Load curve 2'}); axis square; grid on; box on; drawnow;
Defining the FEBio input structure
See also febioStructTemplate and febioStruct2xml and the FEBio user manual.
%Get a template with default settings [febio_spec]=febioStructTemplate; %febio_spec version febio_spec.ATTR.version='4.0'; %Module section febio_spec.Module.ATTR.type='solid'; %Control section febio_spec.Control.analysis='STATIC'; febio_spec.Control.time_steps=numTimeSteps; febio_spec.Control.step_size=1/numTimeSteps; febio_spec.Control.solver.max_refs=max_refs; febio_spec.Control.solver.qn_method.max_ups=max_ups; febio_spec.Control.solver.symmetric_stiffness=symmetric_stiffness; febio_spec.Control.time_stepper.dtmin=dtmin; febio_spec.Control.time_stepper.dtmax=dtmax; febio_spec.Control.time_stepper.max_retries=max_retries; febio_spec.Control.time_stepper.opt_iter=opt_iter; %Material section materialName1='Material1'; febio_spec.Material.material{1}.ATTR.name=materialName1; febio_spec.Material.material{1}.ATTR.type='Ogden'; febio_spec.Material.material{1}.ATTR.id=1; febio_spec.Material.material{1}.c1=c1; febio_spec.Material.material{1}.m1=m1; febio_spec.Material.material{1}.c2=c1; febio_spec.Material.material{1}.m2=-m1; febio_spec.Material.material{1}.k=k; materialName2='Material2'; febio_spec.Material.material{2}.ATTR.name=materialName2; febio_spec.Material.material{2}.ATTR.type='rigid body'; febio_spec.Material.material{2}.ATTR.id=2; febio_spec.Material.material{2}.density=1; febio_spec.Material.material{2}.center_of_mass=center_of_mass; %Mesh section % -> Nodes febio_spec.Mesh.Nodes{1}.ATTR.name='nodeSet_all'; %The node set name febio_spec.Mesh.Nodes{1}.node.ATTR.id=(1:size(V,1))'; %The node id's febio_spec.Mesh.Nodes{1}.node.VAL=V; %The nodel coordinates % -> Elements partName1='Part1'; febio_spec.Mesh.Elements{1}.ATTR.name=partName1; %Name of this part febio_spec.Mesh.Elements{1}.ATTR.type='hex8'; %Element type febio_spec.Mesh.Elements{1}.elem.ATTR.id=(1:1:size(E1,1))'; %Element id's febio_spec.Mesh.Elements{1}.elem.VAL=E1; %The element matrix partName2='Part2'; febio_spec.Mesh.Elements{2}.ATTR.name=partName2; %Name of this part febio_spec.Mesh.Elements{2}.ATTR.type='quad4'; %Element type febio_spec.Mesh.Elements{2}.elem.ATTR.id=size(E1,1)+(1:1:size(E2,1))'; %Element id's febio_spec.Mesh.Elements{2}.elem.VAL=E2; %The element matrix % -> NodeSets nodeSetName1='bcSupportList'; febio_spec.Mesh.NodeSet{1}.ATTR.name=nodeSetName1; febio_spec.Mesh.NodeSet{1}.VAL=mrow(bcSupportList); %MeshDomains section febio_spec.MeshDomains.SolidDomain.ATTR.name=partName1; febio_spec.MeshDomains.SolidDomain.ATTR.mat=materialName1; febio_spec.MeshDomains.ShellDomain.ATTR.name=partName2; febio_spec.MeshDomains.ShellDomain.ATTR.mat=materialName2; % -> Surfaces surfaceName1='contactSurface1'; febio_spec.Mesh.Surface{1}.ATTR.name=surfaceName1; febio_spec.Mesh.Surface{1}.quad4.ATTR.id=(1:1:size(F_contact_secondary,1))'; febio_spec.Mesh.Surface{1}.quad4.VAL=F_contact_secondary; surfaceName2='contactSurface2'; febio_spec.Mesh.Surface{2}.ATTR.name=surfaceName2; febio_spec.Mesh.Surface{2}.quad4.ATTR.id=(1:1:size(F_contact_primary,1))'; febio_spec.Mesh.Surface{2}.quad4.VAL=F_contact_primary; % -> Surface pairs febio_spec.Mesh.SurfacePair{1}.ATTR.name='Contact1'; febio_spec.Mesh.SurfacePair{1}.primary=surfaceName2; febio_spec.Mesh.SurfacePair{1}.secondary=surfaceName1; %Boundary condition section % -> Fix boundary conditions febio_spec.Boundary.bc{1}.ATTR.name='zero_displacement_xyz'; febio_spec.Boundary.bc{1}.ATTR.type='zero displacement'; febio_spec.Boundary.bc{1}.ATTR.node_set=nodeSetName1; febio_spec.Boundary.bc{1}.x_dof=1; febio_spec.Boundary.bc{1}.y_dof=1; febio_spec.Boundary.bc{1}.z_dof=1; %Rigid section % ->Rigid body fix boundary conditions febio_spec.Rigid.rigid_bc{1}.ATTR.name='RigidFix'; febio_spec.Rigid.rigid_bc{1}.ATTR.type='rigid_fixed'; febio_spec.Rigid.rigid_bc{1}.rb=2; febio_spec.Rigid.rigid_bc{1}.Rx_dof=1; febio_spec.Rigid.rigid_bc{1}.Ry_dof=1; febio_spec.Rigid.rigid_bc{1}.Ru_dof=1; febio_spec.Rigid.rigid_bc{1}.Rv_dof=1; % ->Rigid body prescribe boundary conditions febio_spec.Rigid.rigid_bc{2}.ATTR.name='RigidPrescribe_disp'; febio_spec.Rigid.rigid_bc{2}.ATTR.type='rigid_displacement'; febio_spec.Rigid.rigid_bc{2}.rb=2; febio_spec.Rigid.rigid_bc{2}.dof='z'; febio_spec.Rigid.rigid_bc{2}.value.ATTR.lc=1; febio_spec.Rigid.rigid_bc{2}.value.VAL=-(sphereDisplacement+contactInitialOffset); febio_spec.Rigid.rigid_bc{2}.relative=0; febio_spec.Rigid.rigid_bc{3}.ATTR.name='RigidPrescribe_rot'; febio_spec.Rigid.rigid_bc{3}.ATTR.type='rigid_rotation'; febio_spec.Rigid.rigid_bc{3}.rb=2; febio_spec.Rigid.rigid_bc{3}.dof='Rw'; febio_spec.Rigid.rigid_bc{3}.value.ATTR.lc=2; febio_spec.Rigid.rigid_bc{3}.value.VAL=prescribedRotation; febio_spec.Rigid.rigid_bc{3}.relative=0; %Contact section febio_spec.Contact.contact{1}.ATTR.type='sliding-elastic'; febio_spec.Contact.contact{1}.ATTR.surface_pair=febio_spec.Mesh.SurfacePair{1}.ATTR.name; febio_spec.Contact.contact{1}.two_pass=1; febio_spec.Contact.contact{1}.laugon=laugon; febio_spec.Contact.contact{1}.tolerance=0.2; febio_spec.Contact.contact{1}.gaptol=0; febio_spec.Contact.contact{1}.minaug=minaug; febio_spec.Contact.contact{1}.maxaug=maxaug; febio_spec.Contact.contact{1}.search_tol=0.01; febio_spec.Contact.contact{1}.search_radius=0.1*sqrt(sum((max(V,[],1)-min(V,[],1)).^2,2)); febio_spec.Contact.contact{1}.symmetric_stiffness=0; febio_spec.Contact.contact{1}.auto_penalty=1; febio_spec.Contact.contact{1}.penalty=contactPenalty; febio_spec.Contact.contact{1}.fric_coeff=fric_coeff; %LoadData section % -> load_controller febio_spec.LoadData.load_controller{1}.ATTR.name='LC_1'; febio_spec.LoadData.load_controller{1}.ATTR.id=1; febio_spec.LoadData.load_controller{1}.ATTR.type='loadcurve'; febio_spec.LoadData.load_controller{1}.interpolate='LINEAR'; %febio_spec.LoadData.load_controller{1}.extend='CONSTANT'; febio_spec.LoadData.load_controller{1}.points.pt.VAL=[0 0; 1 1]; febio_spec.LoadData.load_controller{2}.ATTR.name='LC_1'; febio_spec.LoadData.load_controller{2}.ATTR.id=2; febio_spec.LoadData.load_controller{2}.ATTR.type='loadcurve'; febio_spec.LoadData.load_controller{2}.interpolate='LINEAR'; %febio_spec.LoadData.load_controller{2}.extend='CONSTANT'; febio_spec.LoadData.load_controller{2}.points.pt.VAL=[lcTwist_time(:) lcTwist_mag(:)]; %Output section % -> log file febio_spec.Output.logfile.ATTR.file=febioLogFileName; febio_spec.Output.logfile.node_data{1}.ATTR.file=febioLogFileName_disp; febio_spec.Output.logfile.node_data{1}.ATTR.data='ux;uy;uz'; febio_spec.Output.logfile.node_data{1}.ATTR.delim=','; febio_spec.Output.logfile.element_data{1}.ATTR.file=febioLogFileName_sed; febio_spec.Output.logfile.element_data{1}.ATTR.data='sed'; febio_spec.Output.logfile.element_data{1}.ATTR.delim=','; % Plotfile section febio_spec.Output.plotfile.compression=0;
Quick viewing of the FEBio input file structure
The febView function can be used to view the xml structure in a MATLAB figure window.
febView(febio_spec); %Viewing the febio file
Exporting the FEBio input file
Exporting the febio_spec structure to an FEBio input file is done using the febioStruct2xml function.
febioStruct2xml(febio_spec,febioFebFileName); %Exporting to file and domNode
Running the FEBio analysis
To run the analysis defined by the created FEBio input file the runMonitorFEBio function is used. The input for this function is a structure defining job settings e.g. the FEBio input file name. The optional output runFlag informs the user if the analysis was run succesfully.
febioAnalysis.run_filename=febioFebFileName; %The input file name febioAnalysis.run_logname=febioLogFileName; %The name for the log file febioAnalysis.disp_on=1; %Display information on the command window febioAnalysis.disp_log_on=1; %Display convergence information in the command window febioAnalysis.runMode=runMode; febioAnalysis.t_check=0.25; %Time for checking log file (dont set too small) febioAnalysis.maxtpi=1e99; %Max analysis time febioAnalysis.maxLogCheckTime=10; %Max log file checking time [runFlag]=runMonitorFEBio(febioAnalysis);%START FEBio NOW!!!!!!!!
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
--------> RUNNING/MONITORING FEBIO JOB <-------- 20-Apr-2023 10:46:38
FEBio path: /home/kevin/FEBioStudio2/bin/febio4
# Attempt removal of existing log files 20-Apr-2023 10:46:38
* Removal succesful 20-Apr-2023 10:46:38
# Attempt removal of existing .xplt files 20-Apr-2023 10:46:38
* Removal succesful 20-Apr-2023 10:46:38
# Starting FEBio... 20-Apr-2023 10:46:38
Max. total analysis time is: 1e+99 s
* Waiting for log file creation 20-Apr-2023 10:46:38
Max. wait time: 10 s
* Log file found. 20-Apr-2023 10:46:38
# Parsing log file... 20-Apr-2023 10:46:38
number of iterations : 7 20-Apr-2023 10:46:39
number of reformations : 7 20-Apr-2023 10:46:39
------- converged at time : 0.1 20-Apr-2023 10:46:39
number of iterations : 9 20-Apr-2023 10:46:40
number of reformations : 9 20-Apr-2023 10:46:40
------- converged at time : 0.183333 20-Apr-2023 10:46:40
number of iterations : 9 20-Apr-2023 10:46:40
number of reformations : 9 20-Apr-2023 10:46:40
------- converged at time : 0.267568 20-Apr-2023 10:46:40
number of iterations : 11 20-Apr-2023 10:46:41
number of reformations : 11 20-Apr-2023 10:46:41
------- converged at time : 0.324293 20-Apr-2023 10:46:41
number of iterations : 8 20-Apr-2023 10:46:41
number of reformations : 8 20-Apr-2023 10:46:41
------- converged at time : 0.378425 20-Apr-2023 10:46:41
number of iterations : 9 20-Apr-2023 10:46:42
number of reformations : 9 20-Apr-2023 10:46:42
------- converged at time : 0.437971 20-Apr-2023 10:46:42
number of iterations : 9 20-Apr-2023 10:46:42
number of reformations : 9 20-Apr-2023 10:46:42
------- converged at time : 0.499705 20-Apr-2023 10:46:42
number of iterations : 7 20-Apr-2023 10:46:43
number of reformations : 7 20-Apr-2023 10:46:43
------- converged at time : 0.563509 20-Apr-2023 10:46:43
number of iterations : 18 20-Apr-2023 10:46:44
number of reformations : 18 20-Apr-2023 10:46:44
------- converged at time : 0.634379 20-Apr-2023 10:46:44
number of iterations : 10 20-Apr-2023 10:46:45
number of reformations : 10 20-Apr-2023 10:46:45
------- converged at time : 0.687458 20-Apr-2023 10:46:45
number of iterations : 9 20-Apr-2023 10:46:45
number of reformations : 9 20-Apr-2023 10:46:45
------- converged at time : 0.73169 20-Apr-2023 10:46:45
number of iterations : 12 20-Apr-2023 10:46:46
number of reformations : 12 20-Apr-2023 10:46:46
------- converged at time : 0.771064 20-Apr-2023 10:46:46
number of iterations : 9 20-Apr-2023 10:46:47
number of reformations : 9 20-Apr-2023 10:46:47
------- converged at time : 0.807094 20-Apr-2023 10:46:47
number of iterations : 11 20-Apr-2023 10:46:47
number of reformations : 11 20-Apr-2023 10:46:47
------- converged at time : 0.846585 20-Apr-2023 10:46:47
number of iterations : 12 20-Apr-2023 10:46:48
number of reformations : 12 20-Apr-2023 10:46:48
------- converged at time : 0.884284 20-Apr-2023 10:46:48
number of iterations : 12 20-Apr-2023 10:46:49
number of reformations : 12 20-Apr-2023 10:46:49
------- converged at time : 0.918786 20-Apr-2023 10:46:49
number of iterations : 11 20-Apr-2023 10:46:50
number of reformations : 11 20-Apr-2023 10:46:50
------- converged at time : 0.950369 20-Apr-2023 10:46:50
number of iterations : 8 20-Apr-2023 10:46:50
number of reformations : 8 20-Apr-2023 10:46:50
------- converged at time : 0.980528 20-Apr-2023 10:46:50
number of iterations : 8 20-Apr-2023 10:46:51
number of reformations : 8 20-Apr-2023 10:46:51
------- converged at time : 1 20-Apr-2023 10:46:51
Elapsed time : 0:00:13 20-Apr-2023 10:46:51
N O R M A L T E R M I N A T I O N
# Done 20-Apr-2023 10:46:51
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
Import FEBio results
if runFlag==1 %i.e. a succesful run
Importing nodal displacements from a log file
dataStruct=importFEBio_logfile(fullfile(savePath,febioLogFileName_disp),0,1);
%Access data
N_disp_mat=dataStruct.data; %Displacement
timeVec=dataStruct.time; %Time
%Create deformed coordinate set
V_DEF=N_disp_mat+repmat(V,[1 1 size(N_disp_mat,3)]);
Importing element stress from a log file
dataStruct=importFEBio_logfile(fullfile(savePath,febioLogFileName_sed),0,1);
%Access data
E_energy=dataStruct.data;

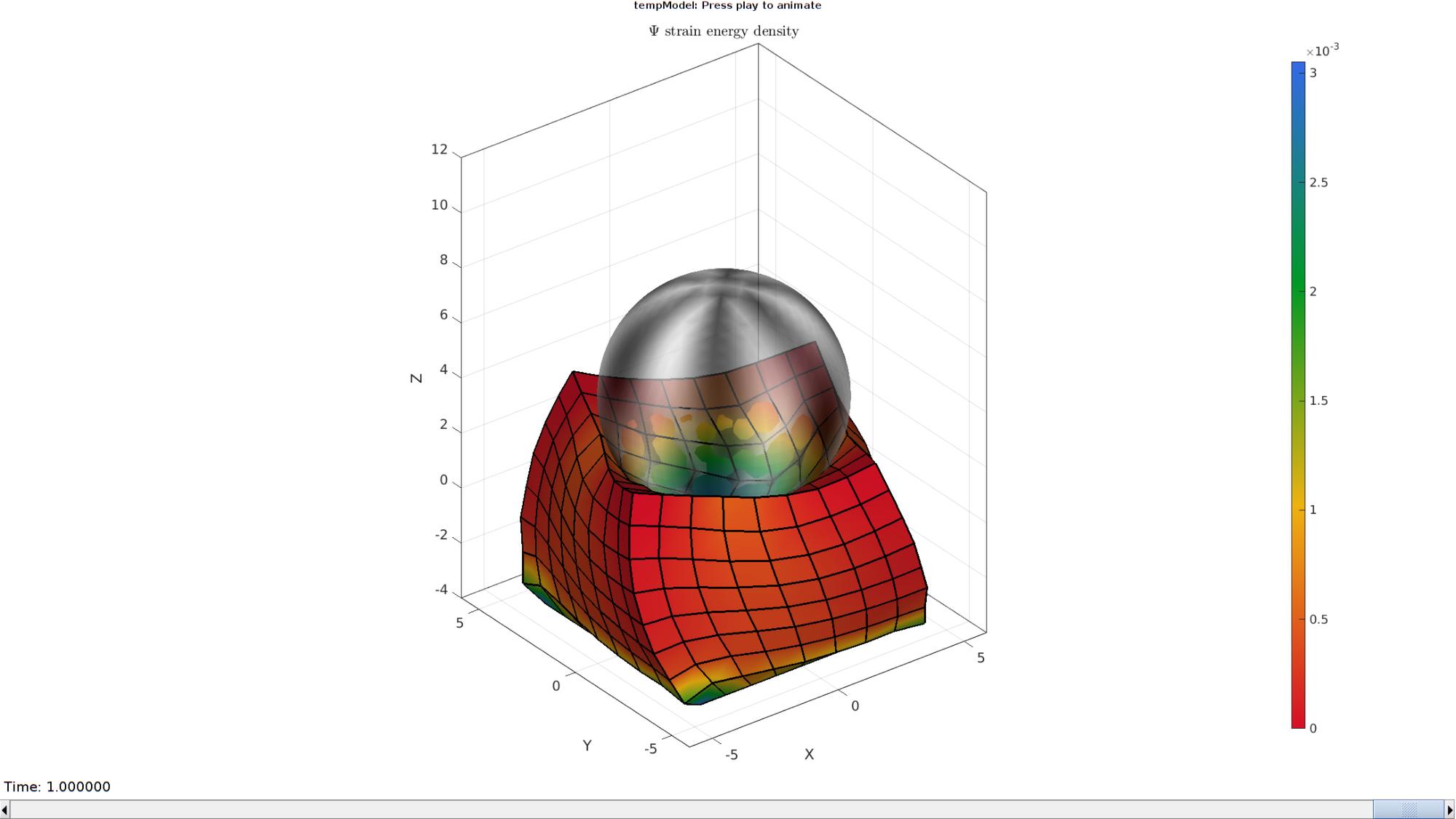

Plotting the simulated results using anim8 to visualize and animate deformations
%Create ball color [t,p,R]=cart2sph(V(:,1),V(:,2),V(:,3)); ballColor=[0.5*(sin(6*t)+1)*ones(1,3)]; [CV]=faceToVertexMeasure(E1,V,E_energy(:,:,end)); % Create basic view and store graphics handle to initiate animation hf=cFigure; %Open figure gtitle([febioFebFileNamePart,': Press play to animate']); title('$\Psi$ strain energy density','Interpreter','Latex') hp1=gpatch(Fb1,V_DEF(:,:,end),CV,'k',1,2); %Add graphics object to animate hp1.FaceColor='interp'; hp2=gpatch(E2,V_DEF(:,:,end),ballColor,'none',0.5); %Add graphics object to animate hp2.FaceColor='interp'; axisGeom(gca,fontSize); colormap(flipud(gjet(250))); colorbar; caxis([min(E_energy(:)) max(E_energy(:))]); axis(axisLim(V_DEF)); %Set axis limits statically camlight headlight; % Set up animation features animStruct.Time=timeVec; %The time vector for qt=1:1:size(N_disp_mat,3) %Loop over time increments [CV]=faceToVertexMeasure(E1,V,E_energy(:,:,qt)); %Set entries in animation structure animStruct.Handles{qt}=[hp1 hp1 hp2]; %Handles of objects to animate animStruct.Props{qt}={'Vertices','CData','Vertices'}; %Properties of objects to animate animStruct.Set{qt}={V_DEF(:,:,qt),CV,V_DEF(:,:,qt)}; %Property values for to set in order to animate end anim8(hf,animStruct); %Initiate animation feature drawnow;
end
