% DEMO_febio_0090_expanding_lattice_01
% Below is a demonstration for:
%
% * Building geometry for a thin sheet featuring a cut pattern
% * Defining the sheet as solid or shell elements
% * Defining the boundary conditions
% * Coding the febio structure
% * Running the model
% * Importing and visualizing the results

Keywords

clear; close all; clc;

Plot settings

fontSize=20;
faceAlpha1=0.8; %transparency
markerSize=40; %For plotted points
markerSize2=10; %For nodes on patches
lineWidth1=1; %For meshes
lineWidth2=2; %For boundary edges
cMap=spectral(250); %colormap

% Geometry parameters
length_cut = 25; % Uneven and larger than 2
length_spacing = 3;
num_repeat_x = 9;
num_repeat_y = 3;

num_nodes_x = 1+(length_spacing+1)*(num_repeat_x+1);
num_nodes_y = num_repeat_y*length_cut + length_spacing*(num_repeat_y+1);

plateEl = [num_nodes_x-1,num_nodes_y-1];
plateDim = plateEl;

layerThickness = length_spacing/2;
elementType = 'hex8';%'quad4';
numRefine = 6;

appliedStretch = 1.8;
displacementMagnitude = (plateDim(1)*(appliedStretch-1));

%Material parameter set
E_youngs1=1; %Material Young's modulus
nu1=0.4; %Material Poisson's ratio

% FEA control settings
numTimeSteps=15; %Number of time steps desired
max_refs=50; %Max reforms
max_ups=0; %Set to zero to use full-Newton iterations
opt_iter=10; %Optimum number of iterations
max_retries=5; %Maximum number of retires
dtmin=(1/numTimeSteps)/100; %Minimum time step size
dtmax=(1/numTimeSteps); %Maximum time step size

runMode='external';

% Path names
defaultFolder = fileparts(fileparts(mfilename('fullpath')));
savePath=fullfile(defaultFolder,'data','temp');

% Defining file names
febioFebFileNamePart='tempModel';
febioFebFileName=fullfile(savePath,[febioFebFileNamePart,'.feb']); %FEB file name
febioLogFileName=[febioFebFileNamePart,'.txt']; %FEBio log file name
febioLogFileName_disp=[febioFebFileNamePart,'_disp_out.txt']; %Log file name for exporting displacement
febioLogFileName_stress_prin=[febioFebFileNamePart,'_stress_prin_out.txt']; %Log file name for exporting principal stress
febioLogFileName_force=[febioFebFileNamePart,'_force_out.txt']; %Log file name for exporting force

[F,V] = quadPlate(plateDim,plateEl);

ind = [];
indSplit = [];

s = ceil((length_cut+length_spacing)/2);
i_split1 = [];
i_split2 = [];

p = length_spacing+2:length_cut-2+length_spacing+1;
i1 = [];
for i_s = 1:1:num_repeat_y+1
    ii = p+ ((i_s-1)*(length_spacing+length_cut));
    i_add = ii(ii<num_nodes_y);
    i1 = [i1 i_add];

    if ~isempty(i_add)
        i_split_add = [i_add(1)-1 i_add(end)+1];
        i_split1 = [i_split1 i_split_add(i_split_add>0 & i_split_add<num_nodes_y)];
    end
end

p = length_spacing+2-s:length_cut-2+length_spacing+1-s;
i2 = [];
for i_s = 1:1:num_repeat_y+1
    ii = p+ ((i_s-1)*(length_spacing+length_cut));
    i_add = ii(ii<=num_nodes_y & ii>0);
    if ~isempty(i_add)
        i_split_add = [i_add(1)-1 i_add(end)+1];
        i_split2 = [i_split2 i_split_add(i_split_add>0 & i_split_add<num_nodes_y)];
    end

    i2 = [i2 i_add];
end

c = 1;
for j = (length_spacing+2):length_spacing+1:num_nodes_x-1

    if iseven(c)
        indAdd = sub2ind([num_nodes_y,num_nodes_x],i2,j*ones(size(i2)));
        indSplitAdd = sub2ind([num_nodes_y,num_nodes_x],i_split2,j*ones(size(i_split2)));
    else
        indAdd = sub2ind([num_nodes_y,num_nodes_x],i1,j*ones(size(i1)));
        indSplitAdd = sub2ind([num_nodes_y,num_nodes_x],i_split1,j*ones(size(i_split1)));
    end
    ind = [ind; indAdd(:)];
    indSplit = [indSplit; indSplitAdd(:)];
    c = c+1;
end

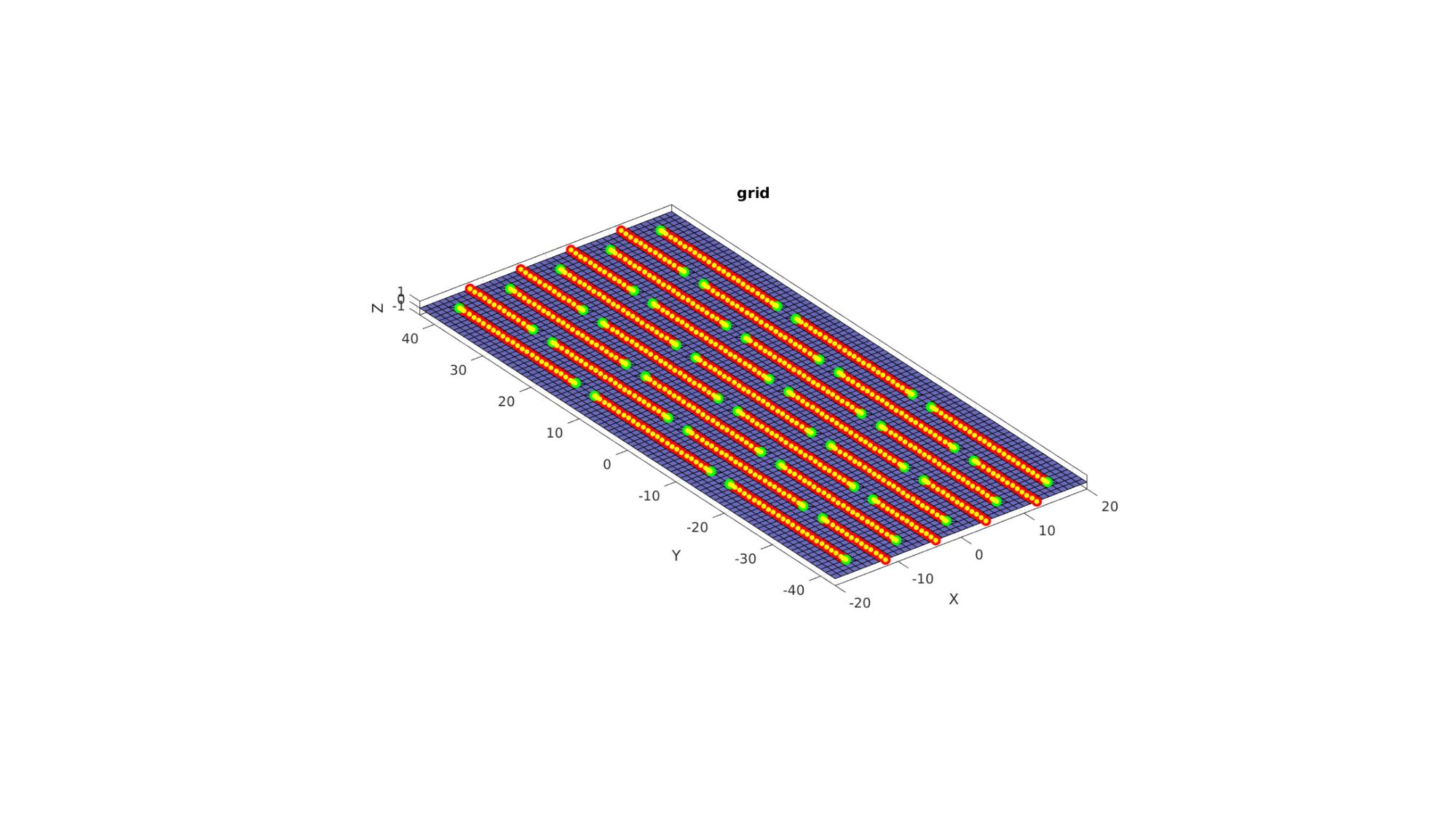

cFigure; hold on;
title('grid');
hp=gpatch(F,V,'bw','k',0.9);
plotV(V(ind,:),'r.','MarkerSize',markerSize)
plotV(V(indSplit,:),'g.','MarkerSize',markerSize)
axisGeom; camlight headlight;
gdrawnow;

for q = 1:1:numRefine
    indFacesRemove = [];
    C = patchConnectivity(F,V,{'vf'});

    for i_vs = 1:length(indSplit)
        i_v = indSplit(i_vs);
        V = [V; V(i_v,:)]; % Append copy of point
        indFacesNow = C.vertex.face(i_v,:);
        indFacesNow = indFacesNow(indFacesNow>0);
        indFacesRemove = [indFacesRemove indFacesNow];
        for i_f = indFacesNow
            f = F(i_f,:);
            % Reorder so split point is first
            iStart = find(f == i_v); % Index of split point
            if iStart>1
                f = [f(iStart:end) f(1:iStart-1)]; % reorder
            end
            e1 = [f(1),f(2)];
            e2 = [f(2),f(3)];
            e3 = [f(3),f(4)];
            e4 = [f(4),f(1)];
            if any(ismember(e1,ind))
                ind=[ind; length(V)+1];
            elseif any(ismember(e4,ind))
                ind=[ind; length(V)+3];
            end
            F_add = [f(1) length(V)+1 length(V)+2 length(V)+3;...
                  length(V)+1 f(2) f(3) length(V)+2;...
                  length(V)+3 length(V)+2 f(3) f(4)];
            F = [F; F_add];
            V = [V; mean(V(e1,:),1); mean(V(f,:),1); mean(V(e4,:),1)];
        end
    end
    L = true(size(F,1),1);
    L(indFacesRemove) = 0;
    F = F(L,:);

    [F,V,~,indFix] = mergeVertices(F,V);
    ind = indFix(ind);
    indSplit = indFix(indSplit);

    [F,V,indFix] = patchCleanUnused(F,V);
    ind = indFix(ind);
    indSplit = indFix(indSplit);

    ind = unique(ind);
end

Eb=patchBoundary(F,V); smoothOpt.Method = 'HC'; smoothOpt.n = 250; smoothOpt.RigidConstraints = unique(Eb(:)); V = patchSmooth(F,V,[],smoothOpt);

V(:,3)=V(:,3)+2*rand(size(V(:,3)));

cFigure; hold on;
title('grid');
hp=gpatch(F,V,'bw','k',0.9);
% patchNormPlot(F,V,[],'v');
plotV(V(ind,:),'r.','MarkerSize',markerSize)
plotV(V(indSplit,:),'g.','MarkerSize',markerSize)
% Eb = patchBoundary(F);
% plotV(V(unique(Eb),:),'c.','MarkerSize',markerSize*2)
axisGeom; camlight headlight;
gdrawnow;

C = patchConnectivity(F,V,{'vf'});
VF = patchCentre(F,V);

indNew = [];
for i_v = ind(:)'
    V = [V; V(i_v,:)]; % Append copy of point
    indFacesNow = C.vertex.face(i_v,:);
    indFacesNow = indFacesNow(indFacesNow>0);
    for i_f = indFacesNow(:)'
        if VF(i_f,1)>V(i_v,1) % On the right side
            f = F(i_f,:);
            f(f==i_v)=length(V);
            F(i_f,:)=f;
            indNew = [indNew; length(V)];
        end
    end
end

cFigure; hold on;
title('grid');
hp=gpatch(F,V,'bw','k',0.9);
% patchNormPlot(F,V,[],'v');
plotV(V(ind,:),'r.','MarkerSize',markerSize)
plotV(V(indSplit,:),'g.','MarkerSize',markerSize)
% Eb = patchBoundary(F);
% plotV(V(unique(Eb),:),'c.','MarkerSize',markerSize*2)
plotV(V(indNew,:),'y.','MarkerSize',markerSize/2)

axisGeom; camlight headlight;
gdrawnow;

Define element type and boundary conditions

searchtol=1e-3;

switch elementType
    case 'quad4'
        E = F;
        bcFixList = find(V(:,1)<(min(V(:,1))+searchtol));
        bcPrescribeList = find(V(:,1)>(max(V(:,1))-searchtol));
    case 'hex8'
        [E,V] = patchThick(F,V,1,layerThickness,ceil(layerThickness));
        F = element2patch(E);
        bcFixList = find(V(:,1)<(min(V(:,1))+searchtol) & V(:,3) > max(V(:,3))-searchtol);
        bcPrescribeList = find(V(:,1)>(max(V(:,1))-searchtol) & V(:,3) < min(V(:,3))+searchtol);

        % bcFixList = find(V(:,1)<(min(V(:,1))+searchtol));
        % bcPrescribeList = find(V(:,1)>(max(V(:,1))-searchtol));
end

% V(:,3)=V(:,3)+1e-2*randn(size(V(:,3)));

Visualizing boundary conditions. Markers plotted on the semi-transparent model denote the nodes in the various boundary condition lists.

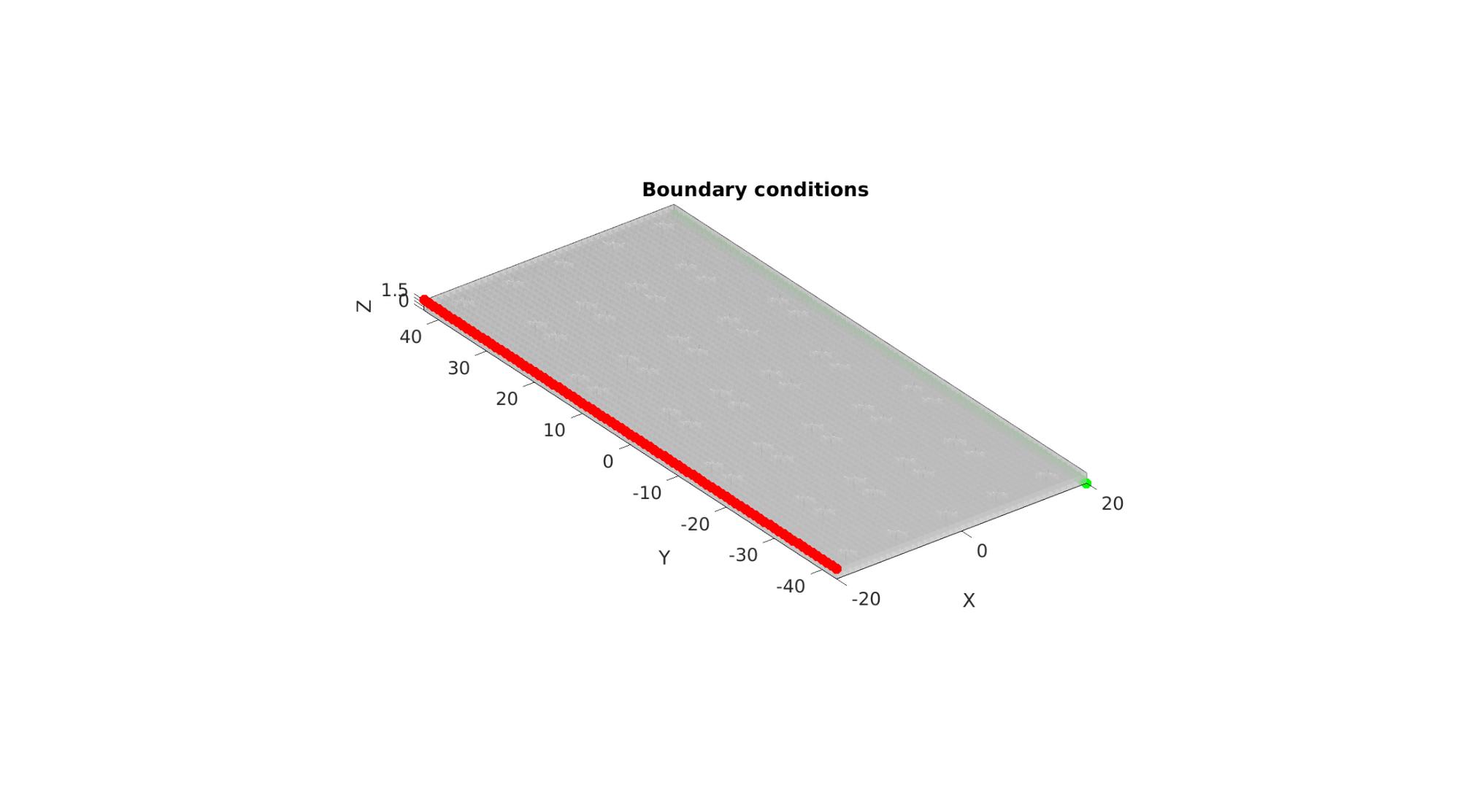

hf=cFigure;
title('Boundary conditions','FontSize',fontSize);
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);
hold on;

gpatch(F,V,'w','none',0.5);

hl(1)=plotV(V(bcFixList,:),'r.','MarkerSize',markerSize);
hl(2)=plotV(V(bcPrescribeList,:),'g.','MarkerSize',markerSize);

axisGeom(gca,fontSize);
camlight headlight;
drawnow;

Defining the FEBio input structure

See also febioStructTemplate and febioStruct2xml and the FEBio user manual.

%Get a template with default settings
[febio_spec]=febioStructTemplate;

%febio_spec version
febio_spec.ATTR.version='4.0';

%Module section
febio_spec.Module.ATTR.type='solid';

%Control section
febio_spec.Control.analysis='STATIC';
febio_spec.Control.time_steps=numTimeSteps;
febio_spec.Control.step_size=1/numTimeSteps;
febio_spec.Control.solver.max_refs=max_refs;
febio_spec.Control.solver.qn_method.max_ups=max_ups;
febio_spec.Control.time_stepper.dtmin=dtmin;
febio_spec.Control.time_stepper.dtmax=dtmax;
febio_spec.Control.time_stepper.max_retries=max_retries;
febio_spec.Control.time_stepper.opt_iter=opt_iter;

%Material section
materialName1='Material1';
febio_spec.Material.material{1}.ATTR.name=materialName1;
febio_spec.Material.material{1}.ATTR.type='neo-Hookean';
febio_spec.Material.material{1}.ATTR.id=1;
febio_spec.Material.material{1}.E=E_youngs1;
febio_spec.Material.material{1}.v=nu1;

% Mesh section
% -> Nodes

%%Area of interest
febio_spec.Mesh.Nodes{1}.ATTR.name='Object1'; %The node set name
febio_spec.Mesh.Nodes{1}.node.ATTR.id=(1:size(V,1))'; %The node id's
febio_spec.Mesh.Nodes{1}.node.VAL=V; %The nodel coordinates

% -> Elements
partName1='Part1';
febio_spec.Mesh.Elements{1}.ATTR.name=partName1; %Name of this part
febio_spec.Mesh.Elements{1}.ATTR.type=elementType; %Element type
febio_spec.Mesh.Elements{1}.elem.ATTR.id=(1:1:size(E,1))'; %Element id's
febio_spec.Mesh.Elements{1}.elem.VAL=E; %The element matrix

% -> NodeSets
nodeSetName1='bcPrescribeList1';
nodeSetName2='bcFixList2';

febio_spec.Mesh.NodeSet{1}.ATTR.name=nodeSetName1;
febio_spec.Mesh.NodeSet{1}.VAL=mrow(bcPrescribeList);

febio_spec.Mesh.NodeSet{2}.ATTR.name=nodeSetName2;
febio_spec.Mesh.NodeSet{2}.VAL=mrow(bcFixList);

%MeshDomains section
switch elementType
    case 'quad4'
        febio_spec.MeshDomains.ShellDomain{1}.ATTR.name=partName1;
        febio_spec.MeshDomains.ShellDomain{1}.ATTR.mat=materialName1;
        febio_spec.MeshDomains.ShellDomain{1}.shell_thickness=layerThickness;
    case 'hex8'
        febio_spec.MeshDomains.SolidDomain{1}.ATTR.name=partName1;
        febio_spec.MeshDomains.SolidDomain{1}.ATTR.mat=materialName1;
end

% -> Prescribe boundary conditions
febio_spec.Boundary.bc{1}.ATTR.name='prescibed_displacement_z';
febio_spec.Boundary.bc{1}.ATTR.type='prescribed displacement';
febio_spec.Boundary.bc{1}.ATTR.node_set=nodeSetName1;
febio_spec.Boundary.bc{1}.dof='x';
febio_spec.Boundary.bc{1}.value.ATTR.lc=1;
febio_spec.Boundary.bc{1}.value.VAL=displacementMagnitude;
febio_spec.Boundary.bc{1}.relative=0;

% febio_spec.Boundary.bc{2}.ATTR.name='prescibed_displacement_z';
% febio_spec.Boundary.bc{2}.ATTR.type='prescribed displacement';
% febio_spec.Boundary.bc{2}.ATTR.node_set=nodeSetName1;
% febio_spec.Boundary.bc{2}.dof='z';
% febio_spec.Boundary.bc{2}.value.ATTR.lc=1;
% febio_spec.Boundary.bc{2}.value.VAL=displacementMagnitude;
% febio_spec.Boundary.bc{2}.relative=0;

% -> Fix boundary conditions
febio_spec.Boundary.bc{2}.ATTR.name='zero_displacement_xy';
febio_spec.Boundary.bc{2}.ATTR.type='zero displacement';
febio_spec.Boundary.bc{2}.ATTR.node_set=nodeSetName1;
febio_spec.Boundary.bc{2}.x_dof=0;
febio_spec.Boundary.bc{2}.y_dof=1;
febio_spec.Boundary.bc{2}.z_dof=1;

febio_spec.Boundary.bc{3}.ATTR.name='zero_displacement_xyz';
febio_spec.Boundary.bc{3}.ATTR.type='zero displacement';
febio_spec.Boundary.bc{3}.ATTR.node_set=nodeSetName2;
febio_spec.Boundary.bc{3}.x_dof=1;
febio_spec.Boundary.bc{3}.y_dof=1;
febio_spec.Boundary.bc{3}.z_dof=1;

%LoadData section
% -> load_controller
febio_spec.LoadData.load_controller{1}.ATTR.name='LC_1';
febio_spec.LoadData.load_controller{1}.ATTR.id=1;
febio_spec.LoadData.load_controller{1}.ATTR.type='loadcurve';
febio_spec.LoadData.load_controller{1}.interpolate='LINEAR';
%febio_spec.LoadData.load_controller{1}.extend='CONSTANT';
febio_spec.LoadData.load_controller{1}.points.pt.VAL=[0 0; 1 1];

%Output section
% -> log file
febio_spec.Output.logfile.ATTR.file=febioLogFileName;
febio_spec.Output.logfile.node_data{1}.ATTR.file=febioLogFileName_disp;
febio_spec.Output.logfile.node_data{1}.ATTR.data='ux;uy;uz';
febio_spec.Output.logfile.node_data{1}.ATTR.delim=',';

% febio_spec.Output.logfile.node_data{2}.ATTR.file=febioLogFileName_force;
% febio_spec.Output.logfile.node_data{2}.ATTR.data='Rx;Ry;Rz';
% febio_spec.Output.logfile.node_data{2}.ATTR.delim=',';

febio_spec.Output.logfile.element_data{1}.ATTR.file=febioLogFileName_stress_prin;
febio_spec.Output.logfile.element_data{1}.ATTR.data='s1;s2;s3';
febio_spec.Output.logfile.element_data{1}.ATTR.delim=',';

% Plotfile section
febio_spec.Output.plotfile.compression=0;

Quick viewing of the FEBio input file structure

The febView function can be used to view the xml structure in a MATLAB figure window.

%%|febView(febio_spec); %Viewing the febio file|

Exporting the FEBio input file

Exporting the febio_spec structure to an FEBio input file is done using the febioStruct2xml function.

febioStruct2xml(febio_spec,febioFebFileName); %Exporting to file and domNode
%system(['gedit ',febioFebFileName,' &']);

Running the FEBio analysis

To run the analysis defined by the created FEBio input file the runMonitorFEBio function is used. The input for this function is a structure defining job settings e.g. the FEBio input file name. The optional output runFlag informs the user if the analysis was run succesfully.

febioAnalysis.run_filename=febioFebFileName; %The input file name
febioAnalysis.run_logname=febioLogFileName; %The name for the log file
febioAnalysis.disp_on=1; %Display information on the command window
febioAnalysis.runMode=runMode;
febioAnalysis.maxLogCheckTime=10; %Max log file checking time

[runFlag]=runMonitorFEBio(febioAnalysis);%START FEBio NOW!!!!!!!!


%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
-------->    RUNNING/MONITORING FEBIO JOB    <-------- 03-Sep-2024 09:36:15
FEBio path: /home/kevin/FEBioStudio/bin/febio4
# Attempt removal of existing log files                03-Sep-2024 09:36:15
 * Removal succesful                                   03-Sep-2024 09:36:15
# Attempt removal of existing .xplt files              03-Sep-2024 09:36:15
 * Removal succesful                                   03-Sep-2024 09:36:15
# Starting FEBio...                                    03-Sep-2024 09:36:15
  Max. total analysis time is: Inf s
 * Waiting for log file creation                       03-Sep-2024 09:36:15
   Max. wait time: 10 s
 * Log file found.                                     03-Sep-2024 09:36:15
# Parsing log file...                                  03-Sep-2024 09:36:15
    number of iterations   : 7                         03-Sep-2024 09:36:18
    number of reformations : 7                         03-Sep-2024 09:36:18
------- converged at time : 0.0666667                  03-Sep-2024 09:36:18
    number of iterations   : 4                         03-Sep-2024 09:36:20
    number of reformations : 4                         03-Sep-2024 09:36:20
------- converged at time : 0.133333                   03-Sep-2024 09:36:20
    number of iterations   : 4                         03-Sep-2024 09:36:22
    number of reformations : 4                         03-Sep-2024 09:36:22
------- converged at time : 0.2                        03-Sep-2024 09:36:22
    number of iterations   : 6                         03-Sep-2024 09:36:22
    number of reformations : 6                         03-Sep-2024 09:36:22
------- converged at time : 0.266667                   03-Sep-2024 09:36:22
    number of iterations   : 12                        03-Sep-2024 09:36:29
    number of reformations : 12                        03-Sep-2024 09:36:29
------- converged at time : 0.322222                   03-Sep-2024 09:36:29
    number of iterations   : 9                         03-Sep-2024 09:36:31
    number of reformations : 9                         03-Sep-2024 09:36:31
------- converged at time : 0.372995                   03-Sep-2024 09:36:31
    number of iterations   : 5                         03-Sep-2024 09:36:33
    number of reformations : 5                         03-Sep-2024 09:36:33
------- converged at time : 0.424628                   03-Sep-2024 09:36:33
    number of iterations   : 5                         03-Sep-2024 09:36:33
    number of reformations : 5                         03-Sep-2024 09:36:33
------- converged at time : 0.479268                   03-Sep-2024 09:36:33
    number of iterations   : 4                         03-Sep-2024 09:36:35
    number of reformations : 4                         03-Sep-2024 09:36:35
------- converged at time : 0.536313                   03-Sep-2024 09:36:35
    number of iterations   : 4                         03-Sep-2024 09:36:37
    number of reformations : 4                         03-Sep-2024 09:36:37
------- converged at time : 0.595282                   03-Sep-2024 09:36:37
    number of iterations   : 4                         03-Sep-2024 09:36:37
    number of reformations : 4                         03-Sep-2024 09:36:37
------- converged at time : 0.655791                   03-Sep-2024 09:36:37
    number of iterations   : 4                         03-Sep-2024 09:36:39
    number of reformations : 4                         03-Sep-2024 09:36:39
------- converged at time : 0.717531                   03-Sep-2024 09:36:39
    number of iterations   : 4                         03-Sep-2024 09:36:41
    number of reformations : 4                         03-Sep-2024 09:36:41
------- converged at time : 0.780257                   03-Sep-2024 09:36:41
    number of iterations   : 4                         03-Sep-2024 09:36:41
    number of reformations : 4                         03-Sep-2024 09:36:41
------- converged at time : 0.843771                   03-Sep-2024 09:36:41
    number of iterations   : 4                         03-Sep-2024 09:36:43
    number of reformations : 4                         03-Sep-2024 09:36:43
------- converged at time : 0.907915                   03-Sep-2024 09:36:43
    number of iterations   : 4                         03-Sep-2024 09:36:44
    number of reformations : 4                         03-Sep-2024 09:36:44
------- converged at time : 0.972564                   03-Sep-2024 09:36:44
    number of iterations   : 3                         03-Sep-2024 09:36:44
    number of reformations : 3                         03-Sep-2024 09:36:44
------- converged at time : 1                          03-Sep-2024 09:36:44
 Elapsed time : 0:00:29                                03-Sep-2024 09:36:44
 N O R M A L   T E R M I N A T I O N
# Done                                                 03-Sep-2024 09:36:44
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

Import FEBio results

if runFlag==1 %i.e. a succesful run

    % Importing nodal displacements from a log file
    dataStruct=importFEBio_logfile(fullfile(savePath,febioLogFileName_disp),0,1);

    %Access data
    N_disp_mat=dataStruct.data; %Displacement
    timeVec=dataStruct.time; %Time

    %Create deformed coordinate set
    V_DEF=N_disp_mat+repmat(V,[1 1 size(N_disp_mat,3)]);

Importing element stress from a log file

    dataStruct=importFEBio_logfile(fullfile(savePath,febioLogFileName_stress_prin),0,1);

    %Access data
    E_stress_mat=dataStruct.data;

    E_stress_mat_VM=sqrt(( (E_stress_mat(:,1,:)-E_stress_mat(:,2,:)).^2 + ...
        (E_stress_mat(:,2,:)-E_stress_mat(:,3,:)).^2 + ...
        (E_stress_mat(:,1,:)-E_stress_mat(:,3,:)).^2  )/2); %Von Mises stress

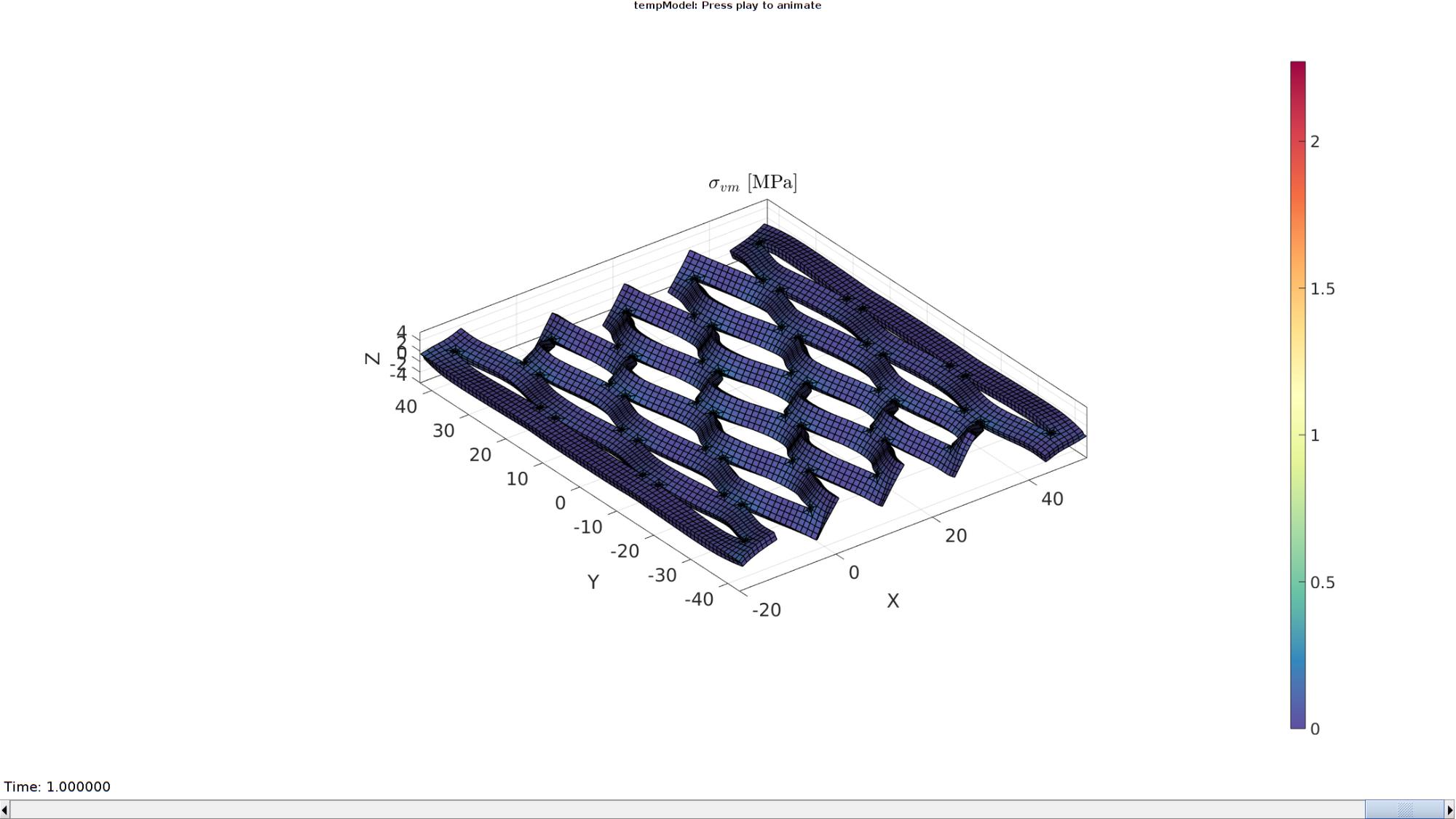

Plotting the simulated results using anim8 to visualize and animate deformations

    [CV]=faceToVertexMeasure(E,V,E_stress_mat_VM(:,:,end));

    % Create basic view and store graphics handle to initiate animation
    hf=cFigure; %Open figure  /usr/local/MATLAB/R2020a/bin/glnxa64/jcef_helper: symbol lookup error: /lib/x86_64-linux-gnu/libpango-1.0.so.0: undefined symbol: g_ptr_array_copy

    gtitle([febioFebFileNamePart,': Press play to animate']);
    title('$\sigma_{vm}$ [MPa]','Interpreter','Latex')
    hp1=gpatch(F,V_DEF(:,:,end),CV,'k',1,lineWidth1); %Add graphics object to animate
    hp1.FaceColor='interp';

    axisGeom(gca,fontSize);
    colormap(cMap); colorbar;
    caxis([min(E_stress_mat_VM(:)) max(E_stress_mat_VM(:))/2]);
    axis(axisLim(V_DEF)); %Set axis limits statically
    camlight headlight;

    % Set up animation features
    animStruct.Time=timeVec; %The time vector
    for qt=1:1:size(N_disp_mat,3) %Loop over time increments

        [CV]=faceToVertexMeasure(E,V,E_stress_mat_VM(:,:,qt));

        %Set entries in animation structure
        animStruct.Handles{qt}=[hp1 hp1]; %Handles of objects to animate
        animStruct.Props{qt}={'Vertices','CData'}; %Properties of objects to animate
        animStruct.Set{qt}={V_DEF(:,:,qt),CV}; %Property values for to set in order to animate
    end
    anim8(hf,animStruct); %Initiate animation feature
    gdrawnow;

end

Published with MATLAB® R2024a
