DEMO_mesh_bifurcation_cut_loft_branch

This demo shows how one can use logic operations to cut meshes and to extrude features from meshes. Here a bifurcated vessel is created by cutting a hole in a particular direction and by extruding the side-branch from this hole. The initial surface mesh is then thickened to produce a hexahedral mesh.

Contents

clear; close all; clc;

Plot Settings

fontSize=15;
faceAlpha=0.8;
edgeColor=0.*ones(1,3);
lineWidth1=2;
markerSize1=50;
markerSize2=25;

Control parameters

pointSpacing=0.5;
trunkRadiusInner=3; %Radius
trunkLength=15; %Length
branchRadiusInner=2;
branchLength=6;
branchAngle=50;
cutDist=0.5;
branchBaseOffset=cutDist+pointSpacing;

wallThickness=0.5;
numElementsWall=2;

bezierTangency=0.5;

numSmootIterations=25;
smoothMethod='HC';
smoothIncludeSteps=2;

Derived parameters

%Get outer radii
trunkRadiusOuter=trunkRadiusInner+wallThickness;
branchRadiusOuter=branchRadiusInner+wallThickness;

%Have branch exit in middle
V_branch_origin=[0 0 -trunkRadiusOuter*tand(90-branchAngle)];

Create example geometry

%Guide curves and branches
R=euler2DCM([0 (branchAngle/180)*pi 0]);
R_90=euler2DCM([0 (90/180)*pi 0]);

%Main trunk
Vm=evenlySpaceCurve([0 0 -trunkLength/2; 0 0 trunkLength/2],pointSpacing);

N_branch_dir=[0 0 1]*R;
t=linspace(0,2*pi,ceil((2*pi*trunkRadiusOuter)./pointSpacing)+1)'; t=t(1:end-1);
Vc1=trunkRadiusOuter.*[cos(t) sin(t) zeros(size(t))];

Vc2_trunk=Vc1+Vm(end,:);
Vc1_trunk=Vc1+Vm(1,:);

n1=vecnormalize(Vm(2,:)-Vm(1,:));
n2=vecnormalize(Vm(end,:)-Vm(end-1,:));
[Ft,Vt,Ct]=sweepLoft(Vc1_trunk,Vc2_trunk,n1,n2,Vm,[],0,0);

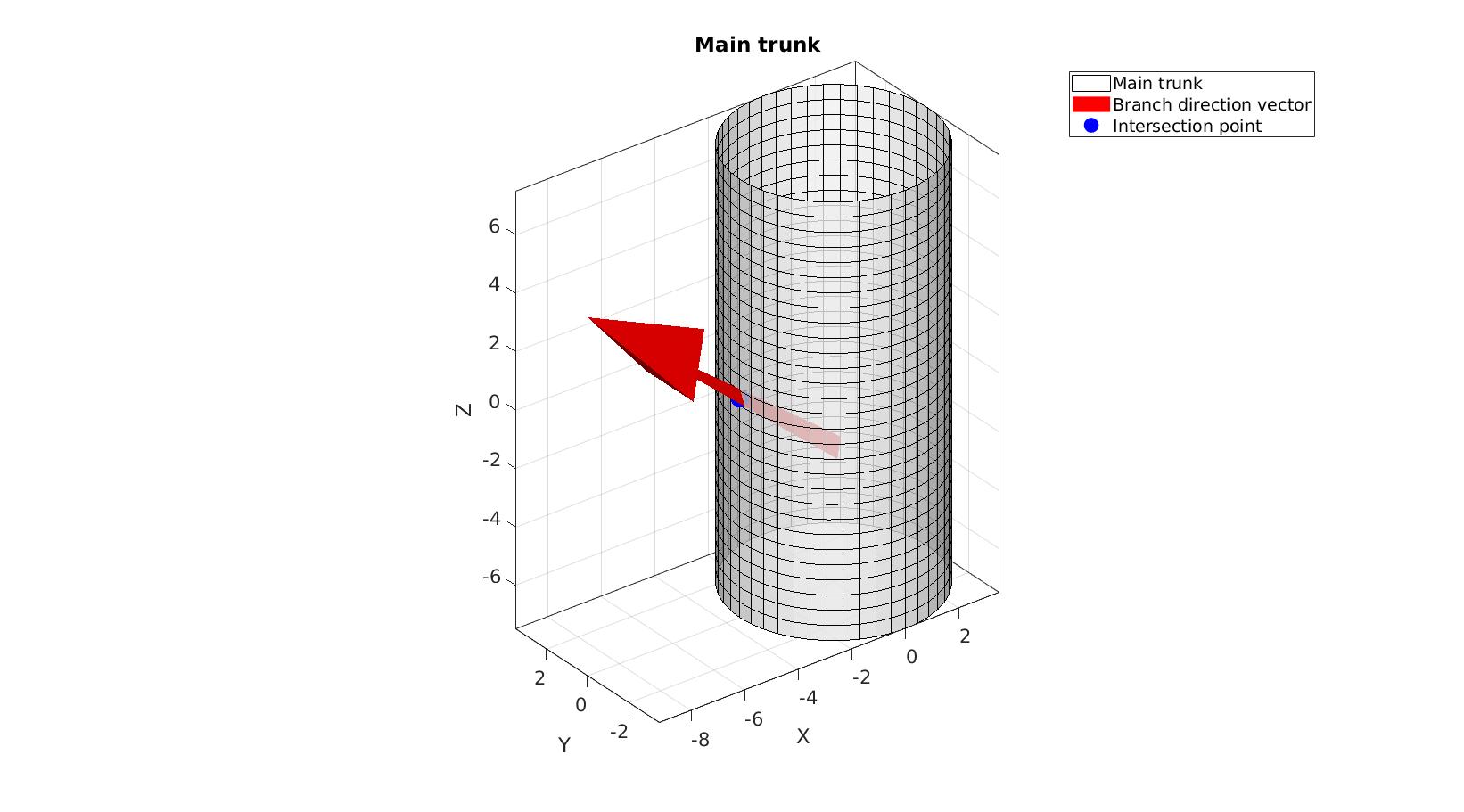

Ray trace branch direction onto trunk to get branch centre point

optionStruct.tolEps        = 1e-6;
optionStruct.triSide       = -1;
optionStruct.rayType       = 'ray';
optionStruct.exclusionType = 'inclusive';
optionStruct.paired        = 0;
P=triSurfRayTrace(V_branch_origin,N_branch_dir,Ft,Vt,optionStruct);

Visualization250

cFigure; hold on;
title('Main trunk');
hp1=gpatch(Ft,Vt,'w','k',faceAlpha);
hp2=quiverVec(V_branch_origin,N_branch_dir,branchLength*2,'r');
hp3=plotV(P,'b.','markerSize',markerSize1);
legend([hp1 hp2 hp3],{'Main trunk','Branch direction vector','Intersection point'})
axisGeom(gca,fontSize); camlight headlight;
gdrawnow;

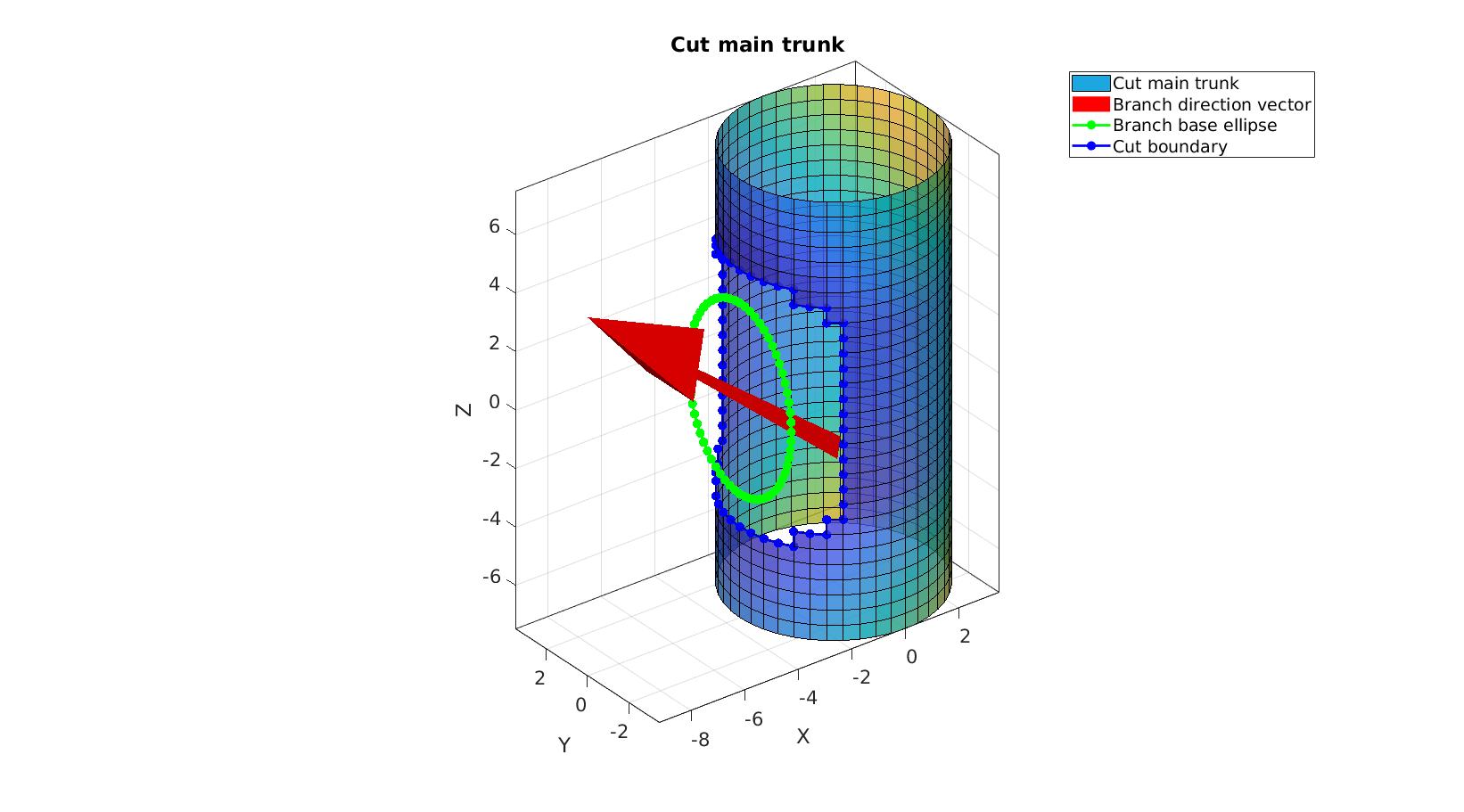

Cut main trunk using side branch ellipse

t=linspace(0,2*pi,2*ceil((2*pi*branchRadiusOuter)./pointSpacing)+1)'; t=t(1:end-1);
b=branchRadiusOuter./cosd(90-branchAngle);
V_cut_ellipse=[b*cos(t) branchRadiusOuter.*sin(t) zeros(size(t))];
V_cut_ellipse=V_cut_ellipse*R_90+P;
[~,indRemove]=minDist(V_cut_ellipse,Vt);
indRemove=unique(indRemove);
logicFacesSelect=~any(ismember(Ft,indRemove),2);

Ft_precut=Ft(logicFacesSelect,:);

clear optionStruct
optionStruct.outputType='label';
[G,~,groupSize]=tesgroup(Ft_precut,optionStruct);
[~,indLargestGroup]=max(groupSize);
Ft_cut=Ft_precut(G==indLargestGroup,:);


Et_boundary_cut=patchBoundary(Ft_cut);
Et_boundary=patchBoundary(Ft);
Et_cut_boundary=Et_boundary_cut(~any(ismember(Et_boundary_cut,Et_boundary),2),:);
indCutCurve=edgeListToCurve(Et_cut_boundary);

clear optionStruct
optionStruct.numSeeds=numel(indCutCurve); %Number of seeds
optionStruct.waitBarOn=0; %Turn on/off waitbar
Dt_cut=meshDistMarch(Ft_cut,Vt,indCutCurve,optionStruct);
logicVerticesFar=Dt_cut>cutDist;
logicKeep=all(logicVerticesFar(Ft_cut),2);
Ft_cut=Ft_cut(logicKeep,:);

Et_boundary_cut=patchBoundary(Ft_cut);
Et_boundary=patchBoundary(Ft);
Et_cut_boundary=Et_boundary_cut(~any(ismember(Et_boundary_cut,Et_boundary),2),:);
indCutCurve=edgeListToCurve(Et_cut_boundary);

V_branch_curve_trunk=Vt(indCutCurve(1:end-1),:);
[~,~,Nt]=patchNormal(Ft_cut,Vt);

N_branch_curve_trunk=Nt(indCutCurve(1:end-1),:);

Visualization

cFigure; hold on;
title('Cut main trunk');
hp1=gpatch(Ft_cut,Vt,Dt_cut,'k',faceAlpha);
hp2=quiverVec(V_branch_origin,N_branch_dir,branchLength*2,'r');
hp3=plotV(V_cut_ellipse,'g.-','markerSize',markerSize2,'LineWidth',lineWidth1);
hp4=plotV(V_branch_curve_trunk,'b.-','markerSize',markerSize2,'LineWidth',lineWidth1);
legend([hp1 hp2 hp3 hp4],{'Cut main trunk','Branch direction vector','Branch base ellipse','Cut boundary'})
axisGeom(gca,fontSize); camlight headlight;
gdrawnow;

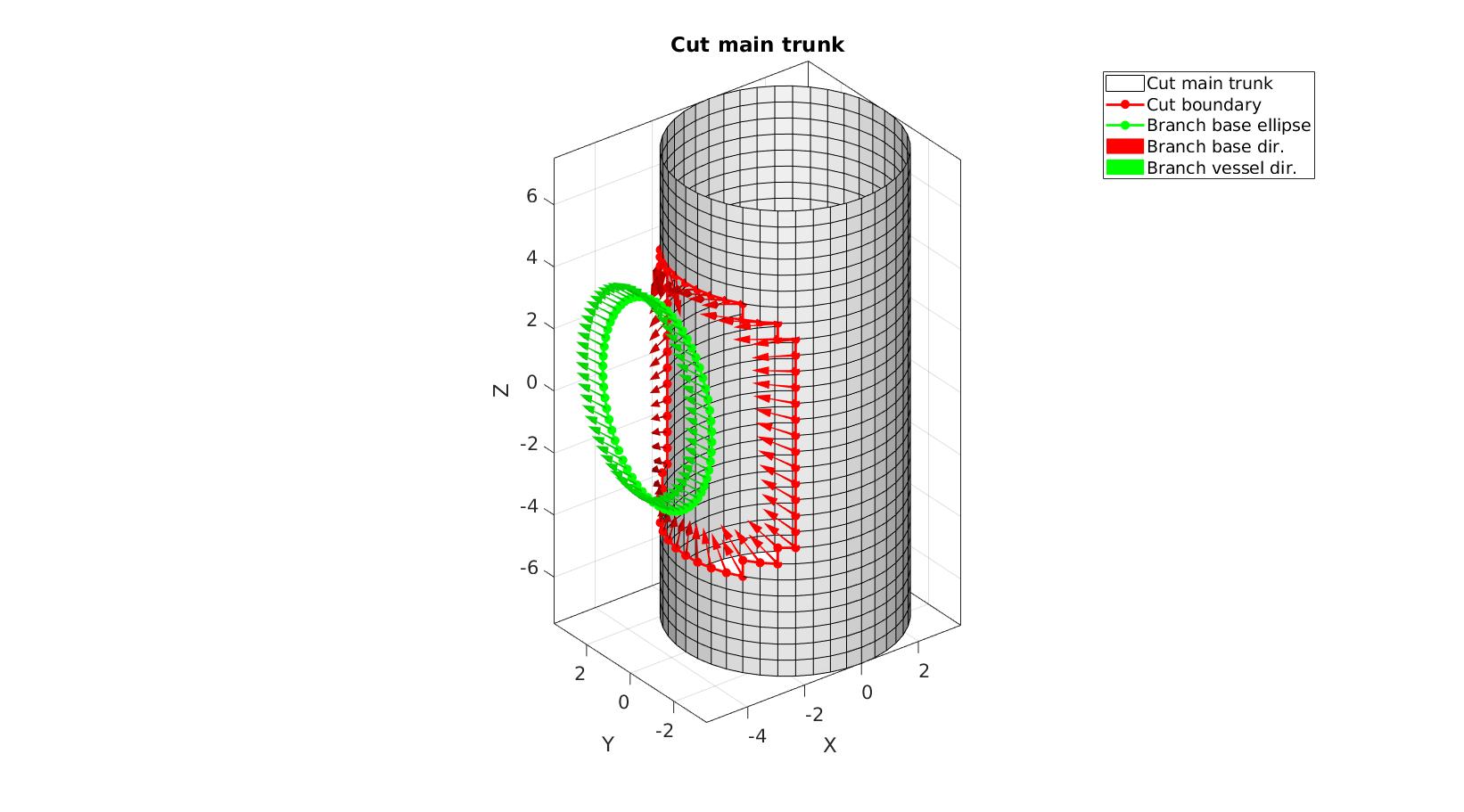

Define bezier start and end vector directions

[~,indNearest]=minDist(V_branch_curve_trunk(1,:),V_cut_ellipse);
dt=linspace(2*pi,0,size(V_branch_curve_trunk,1)+1)'; dt=dt(1:end-1);
dt=dt+t(indNearest);
V_cut_ellipse=[b*cos(dt) branchRadiusOuter.*sin(dt) zeros(size(dt))];
V_branch_curve_ellipse1=V_cut_ellipse*R_90+P+N_branch_dir.*(branchBaseOffset/cosd(90-branchAngle));

d1=sum(sqrt(sum((V_branch_curve_ellipse1-V_branch_curve_trunk).^2,2)));
d2=sum(sqrt(sum((flipud(V_branch_curve_ellipse1)-V_branch_curve_trunk).^2,2)));
if d2<d1
    V_branch_curve_ellipse1=flipud(V_branch_curve_ellipse1);
    dt=flipud(dt);
end

C1=vecnormalize(V_branch_curve_trunk-V_branch_curve_ellipse1);
D1=vecnormalize(cross(C1,N_branch_curve_trunk));
M1=vecnormalize(cross(D1,N_branch_curve_trunk));

M2=N_branch_dir(ones(size(M1,1),1),:);

Visualization

cFigure; hold on;
title('Cut main trunk');
hp1=gpatch(Ft_cut,Vt,'w','k',1);
hp2=plotV(V_branch_curve_trunk,'r.-','markerSize',markerSize2,'LineWidth',lineWidth1);
hp3=plotV(V_branch_curve_ellipse1,'g.-','markerSize',markerSize2,'LineWidth',lineWidth1);
hp4=quiverVec(V_branch_curve_trunk,M1,branchRadiusOuter/2,'r');
hp5=quiverVec(V_branch_curve_ellipse1,M2,branchRadiusOuter/2,'g');
legend([hp1 hp2 hp3 hp4 hp5],{'Cut main trunk','Cut boundary','Branch base ellipse','Branch base dir.','Branch vessel dir.'})
axisGeom(gca,fontSize); camlight headlight;
gdrawnow;

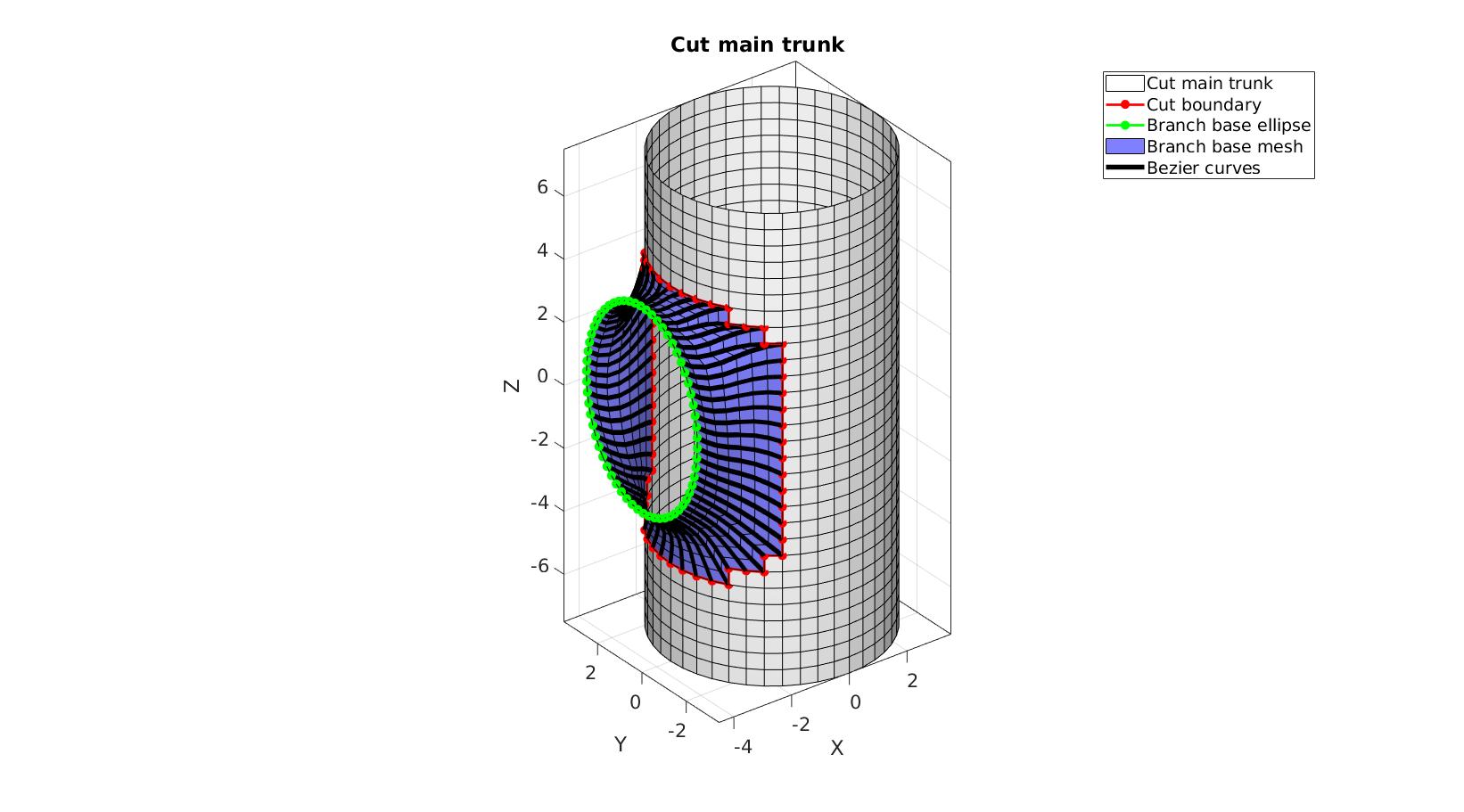

Create raw bezier surface

[Fb1,Vb1,X,Y,Z]=bezierLoft(V_branch_curve_trunk,V_branch_curve_ellipse1,M1,M2,pointSpacing,bezierTangency);

Visualization

cFigure; hold on;
title('Cut main trunk');
hp1=gpatch(Ft_cut,Vt,'w','k',1);
hp2=plotV(V_branch_curve_trunk,'r.-','markerSize',markerSize2,'LineWidth',lineWidth1);
hp3=plotV(V_branch_curve_ellipse1,'g.-','markerSize',markerSize2,'LineWidth',lineWidth1);
hp4=gpatch(Fb1,Vb1,'bw','k',1,0.5);

for q=1:size(X,2)
    hp5=plotV([X(:,q) Y(:,q) Z(:,q)],'k-','LineWidth',4);
end

legend([hp1 hp2 hp3 hp4 hp5],{'Cut main trunk','Cut boundary','Branch base ellipse','Branch base mesh','Bezier curves'})
axisGeom(gca,fontSize); camlight headlight;
gdrawnow;

Loft and merge side branch

endType=1;
switch endType
    case 1 %Circle
        V_branch_curve_ellipse2=branchRadiusOuter.*[cos(dt) sin(dt) zeros(size(dt))];
        V_branch_curve_ellipse2=V_branch_curve_ellipse2*R+P+N_branch_dir.*branchLength;
    case 2 %Ellipse
        V_branch_curve_ellipse2=V_branch_curve_ellipse1+N_branch_dir.*(branchLength-pointSpacing);
end

clear optionStruct
optionStruct.closeLoopOpt=1;
optionStruct.patchType='quad';
[Fb2,Vb2]=polyLoftLinear(V_branch_curve_ellipse1,V_branch_curve_ellipse2,optionStruct);
Fb2=fliplr(Fb2);

[F,V,C]=joinElementSets({Ft_cut,Fb1,Fb2},{Vt,Vb1,Vb2});
[F,V]=mergeVertices(F,V);
[F,V]=patchCleanUnused(F,V);

Constrained smoothing of branch base region

indSmoothRegion=F(C==2,:);
for q=1:1:smoothIncludeSteps
    indSmooth=F(any(ismember(F,indSmoothRegion),2),:);
    indSmoothRegion=indSmooth;
end
indRigid=F(~ismember(F,indSmooth));

clear optionStruct
optionStruct.Method=smoothMethod;
optionStruct.n=numSmootIterations;
optionStruct.RigidConstraints=indRigid;
V=patchSmooth(F,V,[],optionStruct);

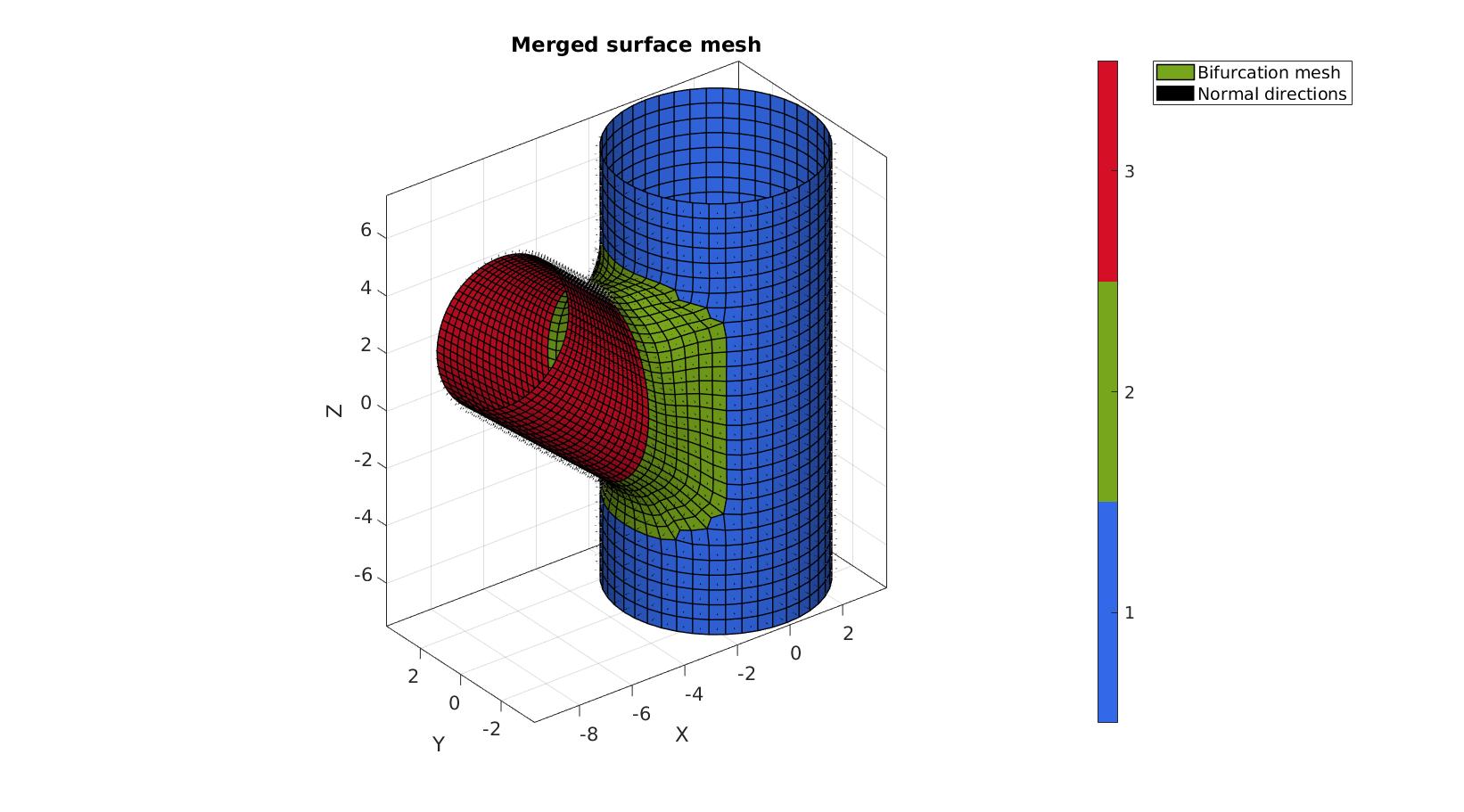

Visualization

cFigure; hold on;
title('Merged surface mesh')
hp1=gpatch(F,V,C,'k',1,1);
hp2=patchNormPlot(F,V);
axisGeom(gca,fontSize); camlight headlight;
colormap(gjet); icolorbar;
legend([hp1 hp2],{'Bifurcation mesh','Normal directions'})
gdrawnow;

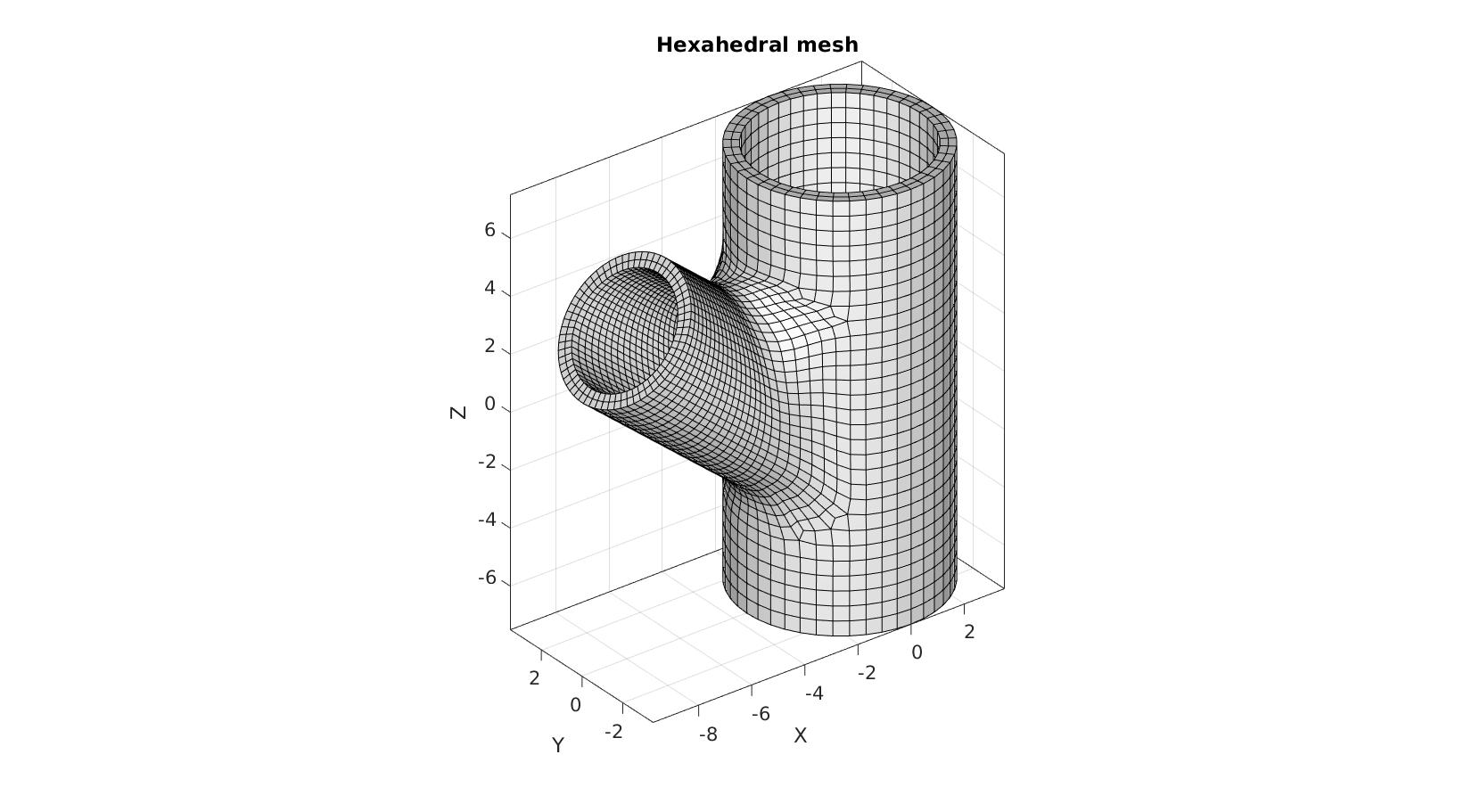

Thicken surface mesh to hexahedra

[E,V]=patchThick(F,V,-1,wallThickness,numElementsWall);
CE=repmat(C,numElementsWall,1);
[FE,CF_E,CF_type]=element2patch(E,CE);

Visualization

cFigure; hold on;
title('Hexahedral mesh')
gpatch(FE,V,'w','k');
axisGeom(gca,fontSize); camlight headlight;
gdrawnow;

function [F,V,X,Y,Z]=bezierLoft(P1,P4,N1,N4,pointSpacing,f)

D12=sqrt(sum((P1-P4).^2,2));
numPoints=ceil(max(D12)./pointSpacing);
if numPoints<2
    numPoints=2;
end

P2=P1+D12.*f.*N1;
P3=P4-D12.*f.*N4;

X=zeros(numPoints,size(P1,1));
Y=zeros(numPoints,size(P1,1));
Z=zeros(numPoints,size(P1,1));
for q=1:1:size(P1,1)
    p=[P1(q,:); P2(q,:); P3(q,:); P4(q,:)]; %Control points
    V_bezier=bezierCurve(p,numPoints*2); %Compute bezier curve
    V_bezier=evenlySampleCurve(V_bezier,numPoints,'pchip'); %resample evenly
    X(:,q)=V_bezier(:,1);
    Y(:,q)=V_bezier(:,2);
    Z(:,q)=V_bezier(:,3);
end

%Create quad patch data
[F,V] = surf2patch(X,Y,Z);
I=[(1:size(Z,1)-1)' (1:size(Z,1)-1)' (2:size(Z,1))' (2:size(Z,1))' ];
J=[size(Z,2).*ones(size(Z,1)-1,1) ones(size(Z,1)-1,1) ones(size(Z,1)-1,1) size(Z,2).*ones(size(Z,1)-1,1)];
F_sub=sub2ind(size(Z),I,J);
F=[F;F_sub];
F=fliplr(F);

end
