DEMO_stent_hexahedral_sweeping

Below is a demonstration for:

Contents

Keywords

clear; close all; clc;

plot settings

fontSize=25;
markerSize=10;
lineWidth=1;

Contol parameters

stentRadius=3; %The outer radius of the stent
numPeriodsWave=10; %The number of periods to use for a sinusoidal modulation
numStepsPeriod=100; %Number of sweeping steps allong a single period segment for sweeping
waveAmplitude=0.9; %Amplitude of the sinusoidal modulation
stentSectionHeight=0.1; %Height of the stent wire
stentSectionWidth=0.1; %Width of the stent wire
numStepsCircumference=(numPeriodsWave*numStepsPeriod)+1; %Number of sweeping steps across curve
overSampleFactorCurve=10; %Oversample factor curve
numSegments=8; %Number of stent segments to stack
segmentAxialOffset=waveAmplitude*2; %Axial offset for stacking stents

Build stent section

The rectangular stent wire section is created here.

V_section=[-stentSectionWidth/2  stentSectionHeight/2 0; ...
            stentSectionWidth/2  stentSectionHeight/2 0; ...
            stentSectionWidth/2 -stentSectionHeight/2 0; ...
           -stentSectionWidth/2 -stentSectionHeight/2 0; ...
            ];

Visualize stent section

cFigure; hold on;
title('Stent section','fontSize',fontSize);
plotV(V_section,'b.-','lineWidth',lineWidth,'MarkerSize',markerSize);
view(2); axis tight; axis equal; grid on; box on;
set(gca,'fontSize',fontSize);
drawnow;

Create guide curve

The sweepLoft (see HELP_sweepLoft) is created here. First and angle based parameterization is created. Next this curve is evenly sample across the curve length (see HELP_evenlySampleCurve).

t=linspace(0,2*pi,numStepsCircumference*overSampleFactorCurve); %Angles
t=t(1:end-1); %Remove last point so it is not closed for resampling
x=stentRadius.*sin(t); %x-coordinates
y=stentRadius.*cos(t); %y-coordinates
z=waveAmplitude.*sin(numPeriodsWave*t); %z-coordinates
V_guide_curve=[x(:) y(:) z(:)]; %Collected curve nodes
[V_guide_curve] = evenlySampleCurve(V_guide_curve,numStepsCircumference-1,'pchip',1); %Resample curve evenly
V_guide_curve(end+1,:)=V_guide_curve(1,:); %Append start to end so it is a closed loop

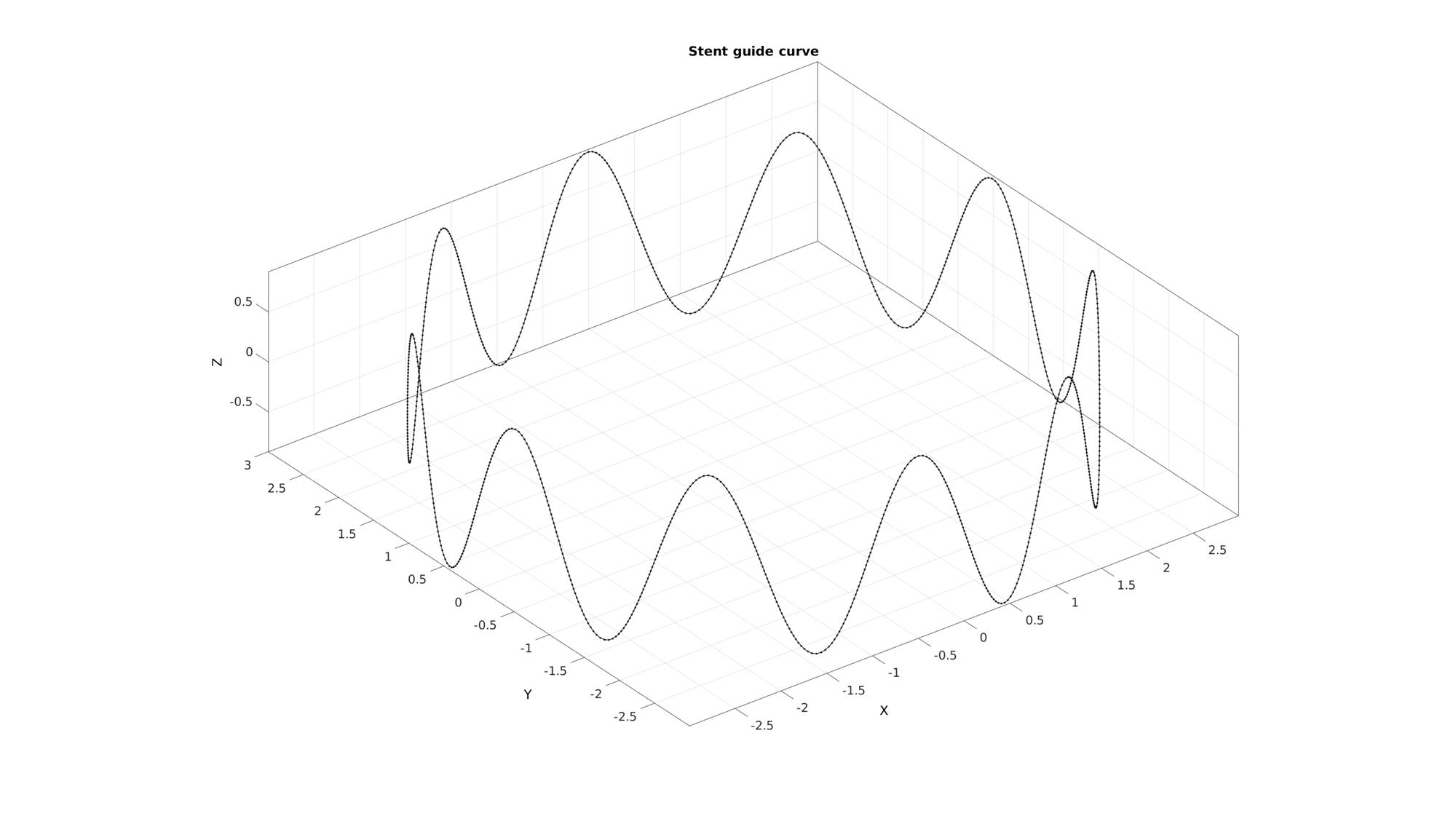

Visualize guide curve

cFigure; hold on;
title('Stent guide curve','fontSize',fontSize);
plotV(V_guide_curve,'k.-','lineWidth',lineWidth,'MarkerSize',markerSize);
axisGeom;
drawnow;

Position stent section at the start and end of the guide curve

Next the section is translated and rotated so it is placed at the start of the guide curve such that the curve normal points allong the curve.

% Create rotation matrix
n3=vecnormalize(V_guide_curve(2,:)-V_guide_curve(1,:)); %Out of section normal direction z ish direction
[~,indMin]=min(dot(n3(ones(1,2),:),[1 0 0; 0 1 0],2)); %Get index most appropriate initial other axis
switch indMin
    case 1
        n1=[1 0 0]; %Initialized x direction
        n2=vecnormalize(cross(n3,n1)); %y ish direction
        n1=vecnormalize(cross(n2,n3)); %Proper x ish direction
        R=[n1; n2; n3]; %Rotation matrix
    case 2
        n2=[0 1 0]; %Initialized y direction
        n1=vecnormalize(cross(n2,n3)); %x ish direction
        n2=vecnormalize(cross(n3,n1)); %Proper y ish direction
        R=[n1; n2; n3]; %Rotation matrix
end

p1=V_guide_curve(1,:); %The start node
V_section=V_section*R; %Rotate the section
V_section=V_section+p1(ones(size(V_section,1),1),:); % Translate coordinate to start

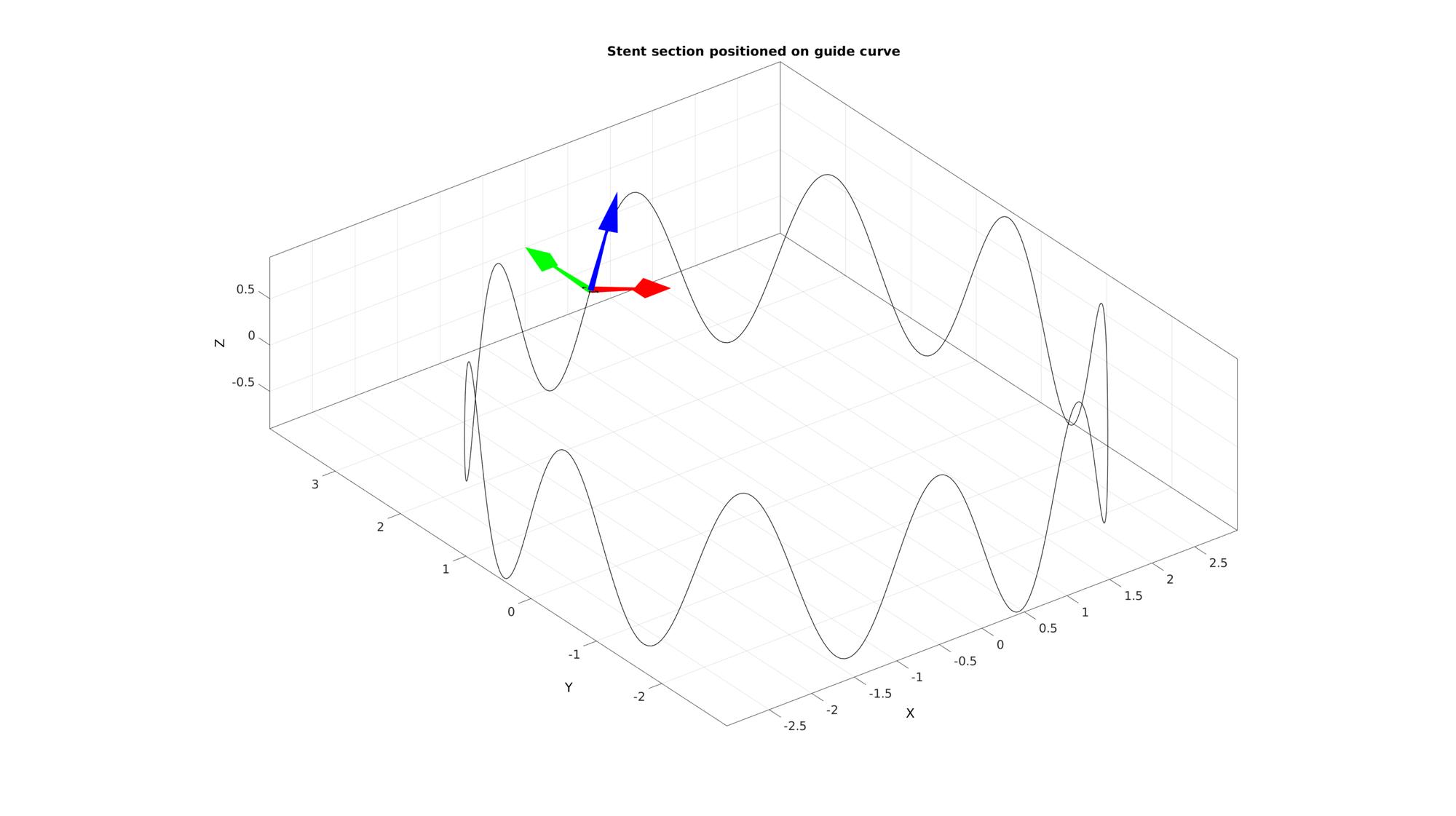

Visualize guide curve

cFigure; hold on;
title('Stent section positioned on guide curve','fontSize',fontSize);
plotV(V_guide_curve,'k-','lineWidth',1);
plotV(V_section,'k.-','lineWidth',lineWidth,'MarkerSize',markerSize);
quiverVec(p1,n1,1,'r');
quiverVec(p1,n2,1,'g');
quiverVec(p1,n3,1,'b');
axisGeom;
drawnow;

Sweeping section allong curve

Normally sweepLoft produces patch data as an output (e.g. faces and vertices). However these outputs are supressed here and the coordinate mesh output is instead used to create a hexahedral mesh. See also HELP_sweepLoft

numTwist=0; %Number of additional twists of loft feature around guide curve
numStepsSweep=numStepsCircumference; %Number of steps for loft feature from sketch 1 to sketch 2
plotOn=0; %Turn on plotting to view lofting behaviour
[~,~,~,S]=sweepLoft(V_section,V_section,n3,n3,V_guide_curve,numStepsSweep,numTwist,plotOn);

Construct hexahedral mesh

X=S.X'; Y=S.Y'; Z=S.Z'; %Coordinate matrices
V=[X(:) Y(:) Z(:)]; %Create node list

F=reshape((1:1:size(V,1)),4,size(V,1)/4)'; %All top and bottom faces
E=[F(2:end,:) F(1:end-1,:)]; %The hexahedral elements
[E,V]=mergeVertices(E,V); %Merge nodes (start and end are not shared yet)
C=hexVol(E,V); %Get hexahedral element volumes

[F,CF]=element2patch(E,C); %Create face data for plotting

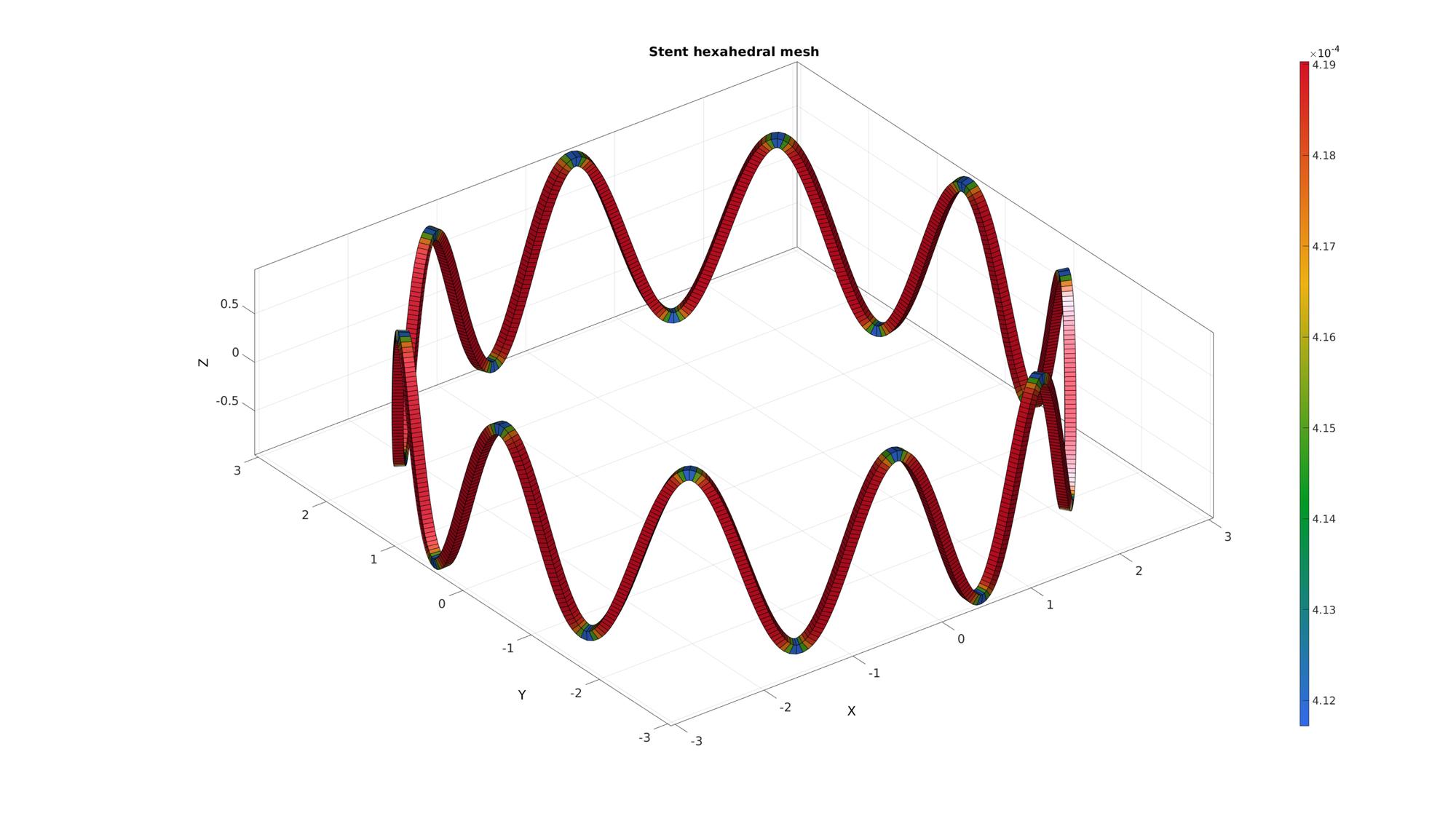

Visualize hexahedral mesh

cFigure; hold on;
title('Stent hexahedral mesh','fontSize',fontSize);
plotV(V_guide_curve,'k-','lineWidth',3);
gpatch(F,V,CF,'k',1);
% patchNormPlot(F,V); %Check normal directions
colormap gjet; colorbar;
axisGeom;
camlight headlight;
drawnow;

Refine mesh

The swept mesh can be refined through slitting. The splitting can be homogeneous or only in a particular direction (see HELP_subHex|) Split method explanation: 1: Overall splitting in all directions 2: Split allong curve direction 3: Split axially 4: Splint inward

splitMethod=3;
nRefine=1;
[E,V,Cs]=subHex(E,V,nRefine,splitMethod);

splitMethod=4;
nRefine=1;
[E,V,Css]=subHex(E,V,nRefine,splitMethod);
C=hexVol(E,V); %Get hexahedral element volumes

Cs=Cs(Css); %Colors for original element indices (and sweeping steps)

[F,CF]=element2patch(E,C); %Create face data

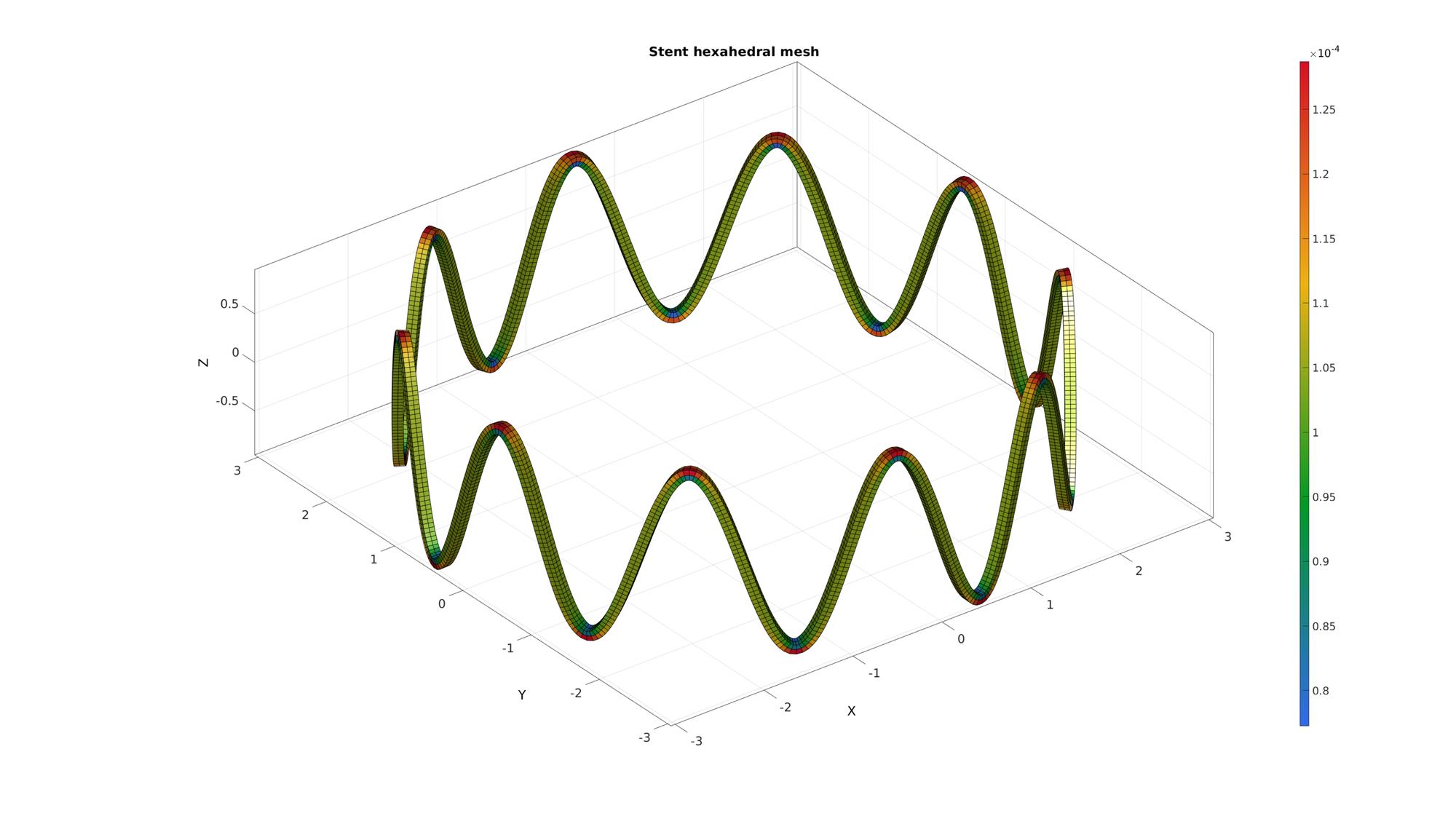

Visualize hexahedral mesh

cFigure; hold on;
title('Stent hexahedral mesh','fontSize',fontSize);
plotV(V_guide_curve,'k-','lineWidth',3);
gpatch(F,V,CF,'k',1);
% patchNormPlot(F,V);
colormap gjet; colorbar;
axisGeom;
camlight headlight;
drawnow;

Create additional segments

E_cell=repmat({E},1,numSegments);
V_cell=repmat({V},1,numSegments);
for q=1:1:numSegments
    V_cell{q}(:,3)=V_cell{q}(:,3)+((q-1)*segmentAxialOffset);
end
[ET,VT,CT]=joinElementSets(E_cell,V_cell);

[FT,CTF]=element2patch(ET,CT); %Create face data for plotting

Create face labelling to construct node sets

[indBoundary]=tesBoundary(FT,VT);
faceMarker=ones(size(ET,1),1)*(1:6); %The 6 face colors for the hexahedral faces
faceMarker=faceMarker(:); %Force as a column
FTb=FT(indBoundary,:); %Select the boundary faces (which will exclude tops (1) and bottoms (2))
faceBoundaryMarker=faceMarker(indBoundary,:)-2; %Get boundary colors and subtract 2 so they are 1-4

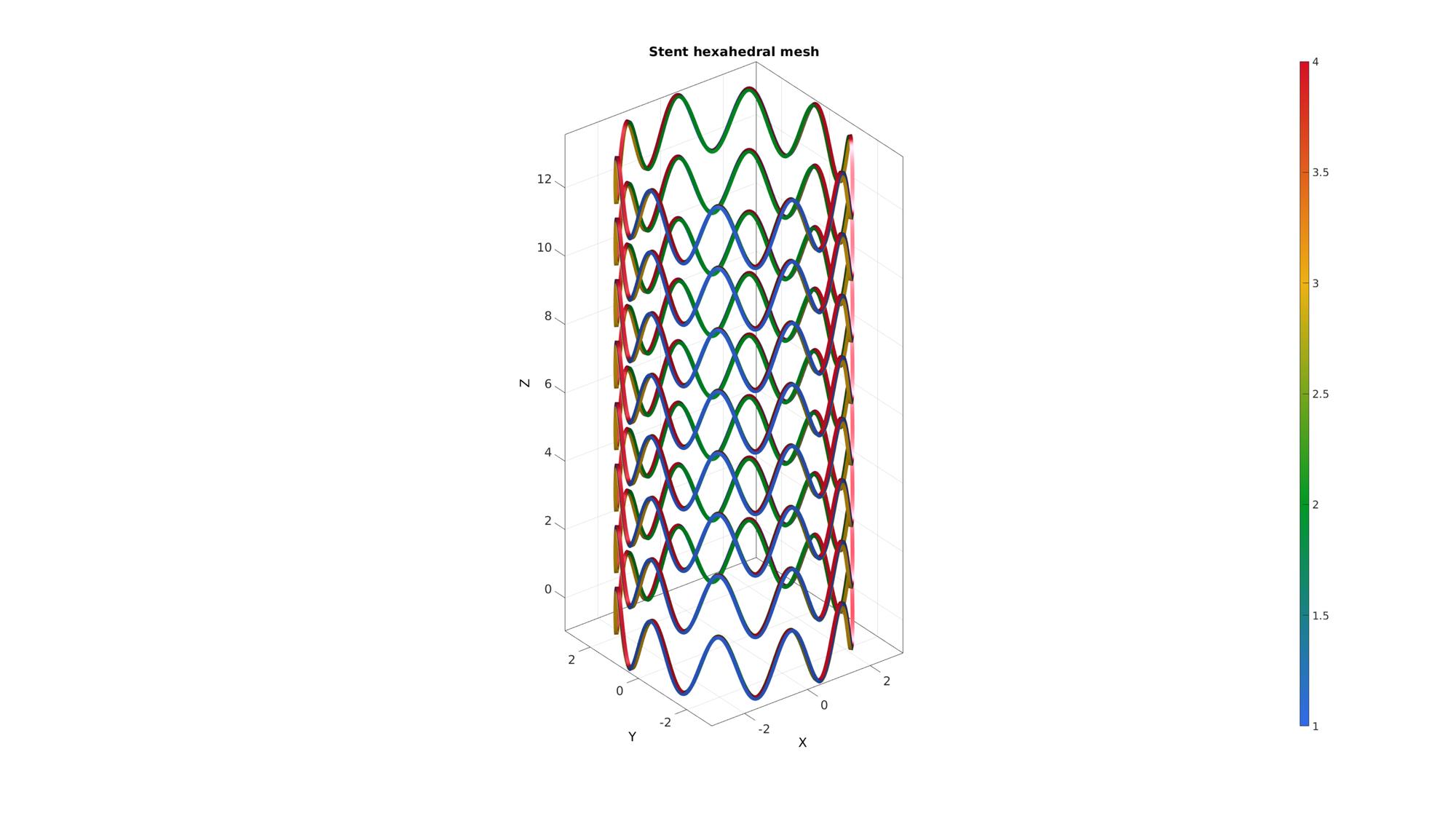

Visualize face labels

cFigure; hold on;
title('Stent hexahedral mesh','fontSize',fontSize);
gpatch(FTb,VT,faceBoundaryMarker,'none',1);
% patchNormPlot(F,V); %Check normal directions
colormap gjet; colorbar;
axisGeom;
camlight headlight;
drawnow;

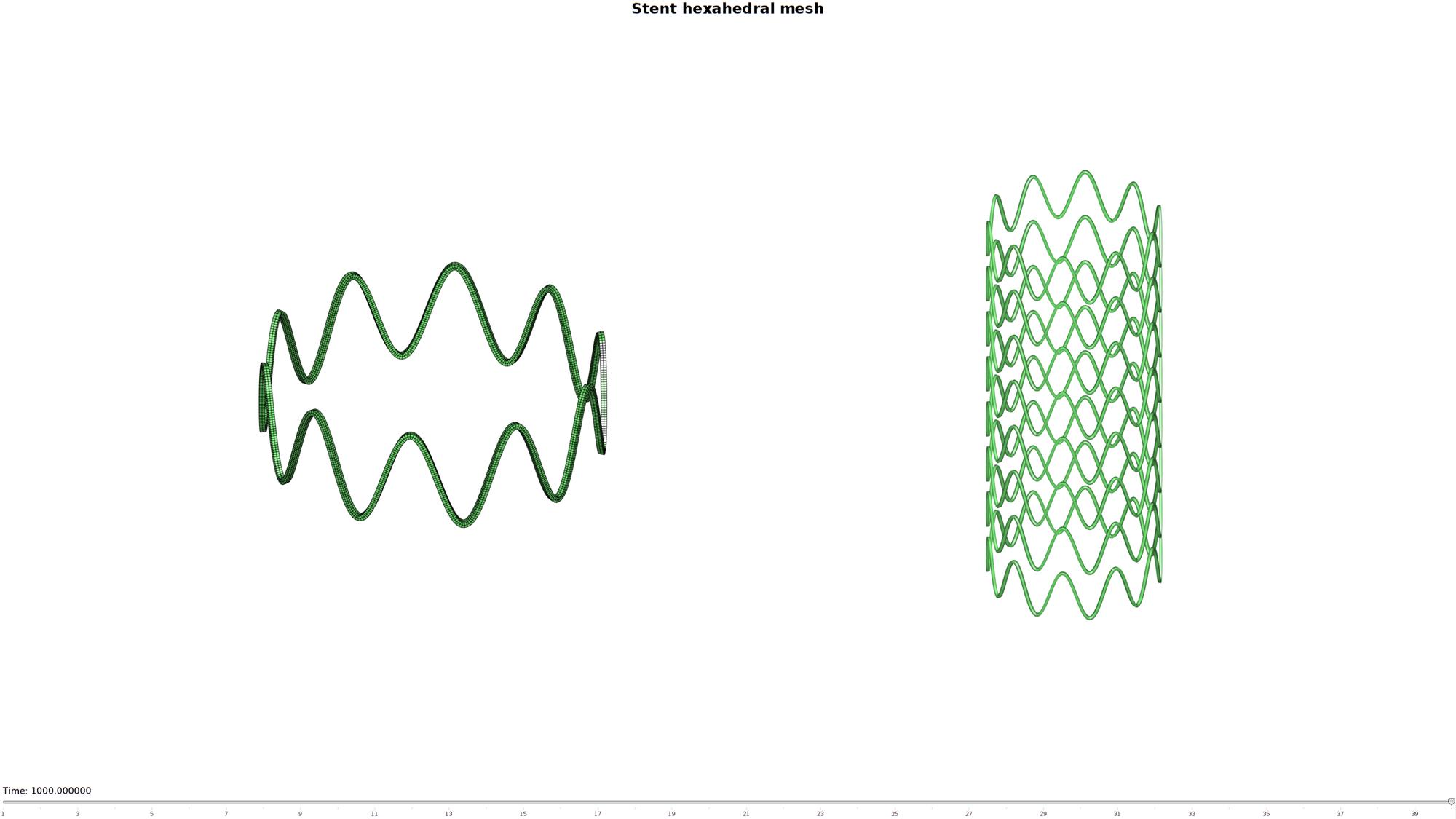

Visualize composed segments and animate sweep

hf=cFigure;
gtitle('Stent hexahedral mesh',fontSize);
subplot(1,2,1); hold on;
plotV(V_guide_curve,'k-','lineWidth',3);
hp=gpatch(F,V,'gw','k',1);
plotV(V_guide_curve,'k-','lineWidth',3);
axisGeom;
camlight headlight;
axis off; axis manual;

subplot(1,2,2); hold on;
gpatch(FT,VT,'gw','none',1);
axisGeom;
camlight headlight;
lighting gouraud
axis off;
drawnow;

[F,CFs]=element2patch(E,Cs); %Create face data for plotting

nSteps=40; %Number of animation steps
animStruct.Time=round(linspace(1,max(CFs(:)),nSteps));%Create the time vector

for q=1:1:nSteps
    F_now=F(ismember(CFs,1:animStruct.Time(q)),:);
    %Set entries in animation structure
    animStruct.Handles{q}=hp; %Handles of objects to animate
    animStruct.Props{q}={'Faces'}; %Properties of objects to animate
    animStruct.Set{q}={F_now}; %Property values for to set in order to animate
end

anim8(hf,animStruct);

Create node set for inner surface nodes

FTb_inner=FTb(faceBoundaryMarker==2,:); %Inner faces
indicesNodesInner=unique(FTb_inner(:)); %Inner nodes
indicesElementsInner=find(sum(ismember(ET,indicesNodesInner),2)==4); %Inner elements

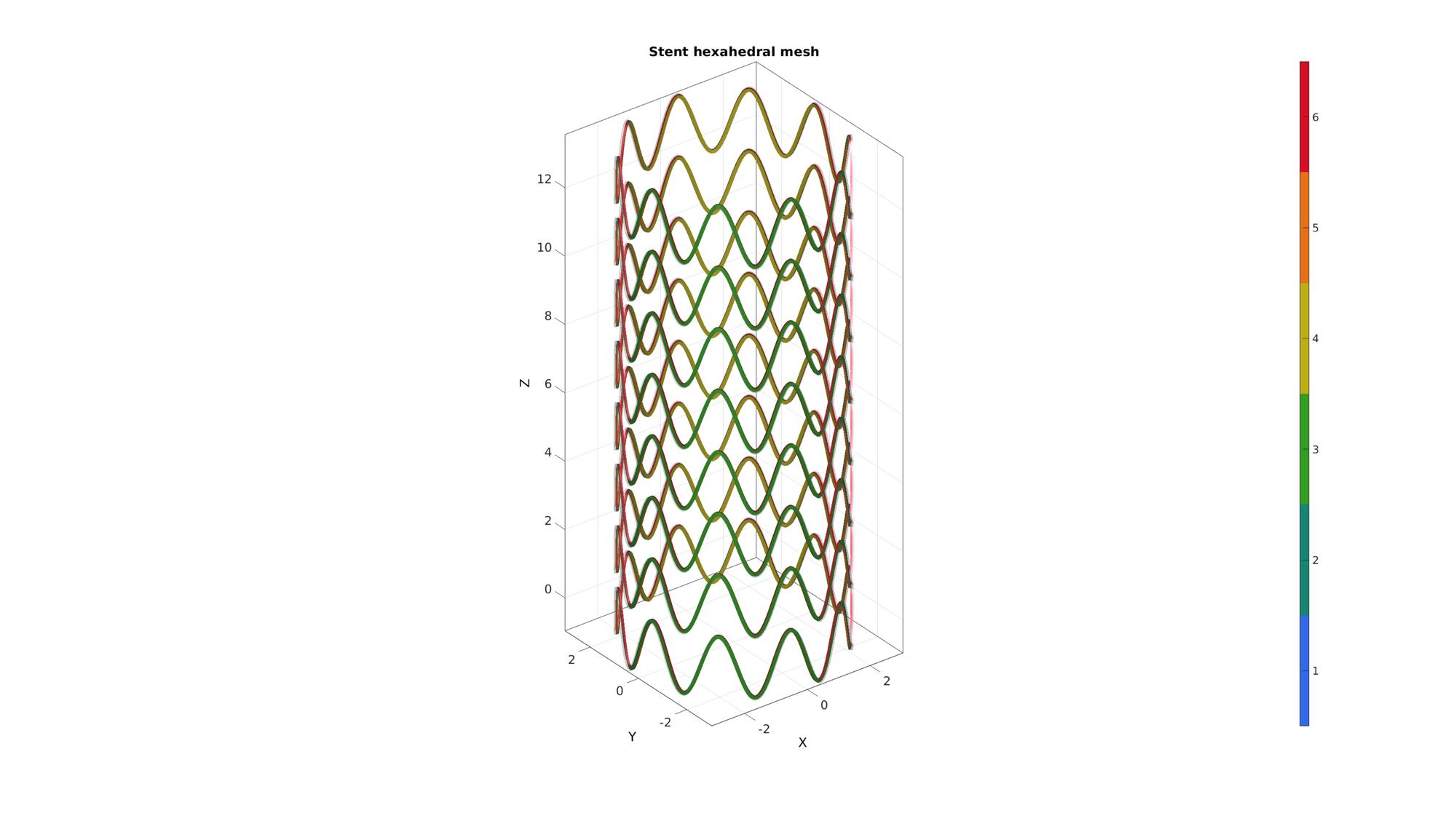

Visualize face labels

[F_inner_elements]=element2patch(ET(indicesElementsInner,:)); %Create face data for plotting
C_side=ones(numel(indicesElementsInner),1)*(1:1:6);
C_side=C_side(:);

cFigure; hold on;
title('Stent hexahedral mesh','fontSize',fontSize);
gpatch(FTb,VT,'kw','none',0.2);
% gpatch(FTb_inner,VT,'gw','k',1);
gpatch(F_inner_elements,VT,C_side,'none',1);
% plotV(VT(indicesNodesInner,:),'g.','MarkerSize',25);
colormap(gjet(6)); icolorbar;
axisGeom;
camlight headlight;
drawnow;

Setup structure to define an Abaqus inp file

%%--> Heading
abaqus_spec.Heading.COMMENT{1}='Job name: ABAQUS inp file creation demo';
abaqus_spec.Heading.COMMENT{2}='Generated by: GIBBON';

%%--> Preprint
abaqus_spec.Preprint.ATTR.echo='NO';
abaqus_spec.Preprint.ATTR.model='NO';
abaqus_spec.Preprint.ATTR.history='NO';
abaqus_spec.Preprint.ATTR.contact='NO';

%--> Part

% Node
nodeIds=(1:1:size(VT,1))';
abaqus_spec.Part.COMMENT='This section defines the part geometry in terms of nodes and elements';
abaqus_spec.Part.ATTR.name='Stent';
abaqus_spec.Part.Node={nodeIds,VT};

% Element
elementIds=(1:1:size(ET,1))';
abaqus_spec.Part.Element{1}.ATTR.type='C3D8';%'C3D8R';
abaqus_spec.Part.Element{1}.VAL={elementIds,ET};

% Element sets
abaqus_spec.Part.Elset{1}.ATTR.elset='Set-1';
abaqus_spec.Part.Elset{1}.VAL=elementIds;

surfaceElementSetName='elementSetSideSurface';
abaqus_spec.Part.Elset{2}.ATTR.elset=surfaceElementSetName;
abaqus_spec.Part.Elset{2}.ATTR.internal=''; %Remains hidden uppon import
abaqus_spec.Part.Elset{2}.VAL=indicesElementsInner(:);

% Surfaces
sidePick=5;
abaqus_spec.Part.Surface{1}.ATTR.type='ELEMENT';
abaqus_spec.Part.Surface{1}.ATTR.name=[surfaceElementSetName,'_side',num2str(sidePick)];
abaqus_spec.Part.Surface{1}.VAL={surfaceElementSetName,['S',num2str(sidePick)]};

% Sections
abaqus_spec.Part.Solid_section.ATTR.elset='Set-1';
abaqus_spec.Part.Solid_section.ATTR.material='Elastic';

%--> Assembly
abaqus_spec.Assembly.ATTR.name='Assembly-1';
abaqus_spec.Assembly.Instance.ATTR.name='Stent-assembly';
abaqus_spec.Assembly.Instance.ATTR.part='Stent';

abaqus_spec.Assembly.Nset{1}.ATTR.nset='Set-1';
abaqus_spec.Assembly.Nset{1}.ATTR.instance=abaqus_spec.Assembly.Instance.ATTR.name;
abaqus_spec.Assembly.Nset{1}.VAL=indicesNodesInner(:);

%%--> Material
abaqus_spec.Material.ATTR.name='Elastic';
abaqus_spec.Material.Elastic=[0.5 0.4];

%%--> Step
abaqus_spec.Step.ATTR.name='Step-1';
abaqus_spec.Step.ATTR.nlgeom='YES';
abaqus_spec.Step.Static=[0.1 1 1e-5 0.1];

% % Boundary
% abaqus_spec.Step.Boundary{1}.VAL={'Set-1',[1,1]};
% abaqus_spec.Step.Boundary{2}.VAL={'Set-2',[2,2]};
% abaqus_spec.Step.Boundary{3}.VAL={'Set-3',[3,3]};
% abaqus_spec.Step.Boundary{4}.VAL={'Set-4',[3,3],-0.1};

%Output
abaqus_spec.Step.Restart.ATTR.write='';
abaqus_spec.Step.Restart.ATTR.frequency=0;

abaqus_spec.Step.Output{1}.ATTR.field='';
abaqus_spec.Step.Output{1}.ATTR.variable='PRESELECT';
abaqus_spec.Step.Output{2}.ATTR.history='';
abaqus_spec.Step.Output{2}.ATTR.variable='PRESELECT';
% abaqus_spec.Step.Node_print.ATTR.nset='all';
% abaqus_spec.Step.Node_print.ATTR.frequency = 1;
% abaqus_spec.Step.Node_print.VAL='COORD';
% abaqus_spec.Step.El_print.VAL='S';

Creating the INP file

You can use abaqusStruct2inp to write the structure data to a file.

%Create file name for INP file
defaultFolder = fileparts(fileparts(mfilename('fullpath')));
savePath=fullfile(defaultFolder,'data','temp');
fileName=fullfile(savePath,'tempModel.inp');
[~,fileNamePart,~]=fileparts(fileName);

% Export INP file
abaqusStruct2inp(abaqus_spec,fileName);
