axis_inc

Below is a demonstration of the features of the axis_inc function

Syntax
Description
Examples
Scaling limits on a 2D plot
Scaling limits on a 3D plot

clear; close all; clc;

Syntax

h=axis_inc(s);

Description

This function widens the axis limits for the axis with the handle hs using the scale factor s (e.g. if s=2 the axis width is doubled). The scaling parameter s can be a single scalar or a vector such that each axis direction is scaled differently.

Examples

Plot settings

fontSize=25;
lineWidth=3;

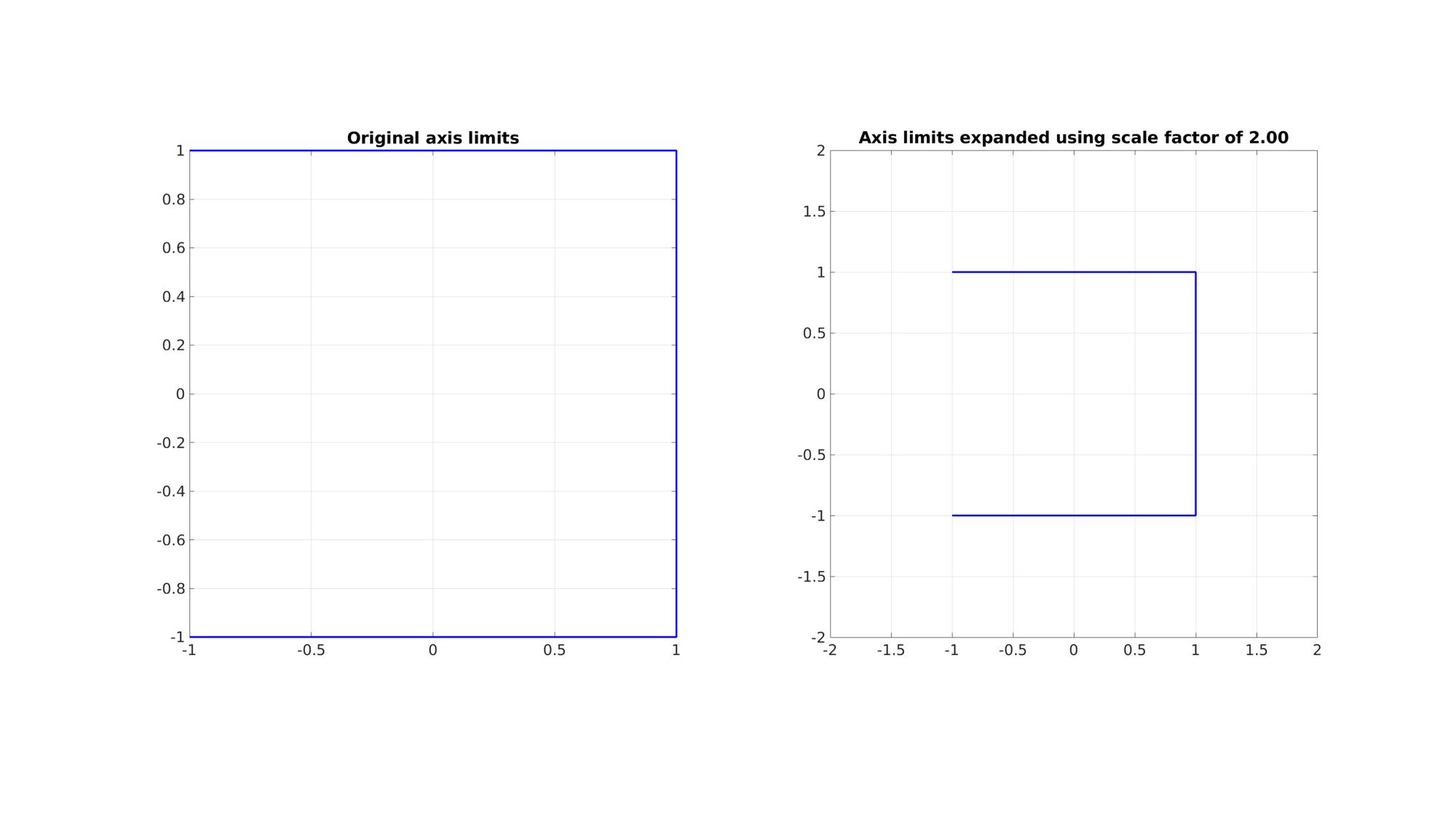

Scaling limits on a 2D plot

scaleFactor=2;

cFigure;
h1=subplot(1,2,1); hold on;
title('Original axis limits');
plot([-1 1 1 -1],[-1 -1 1 1],'b-','LineWidth',lineWidth);
axis tight; axis equal; view(2); box on; grid on;
set(h1,'FontSize',fontSize);

h2=subplot(1,2,2); hold on;
title(['Axis limits expanded using scale factor of ',sprintf('%.2f',scaleFactor)]);
plot([-1 1 1 -1],[-1 -1 1 1],'b-','LineWidth',lineWidth);
axis tight; axis equal; view(2); box on; grid on;
axis_inc(scaleFactor,h2);
set(h2,'FontSize',fontSize);
drawnow;

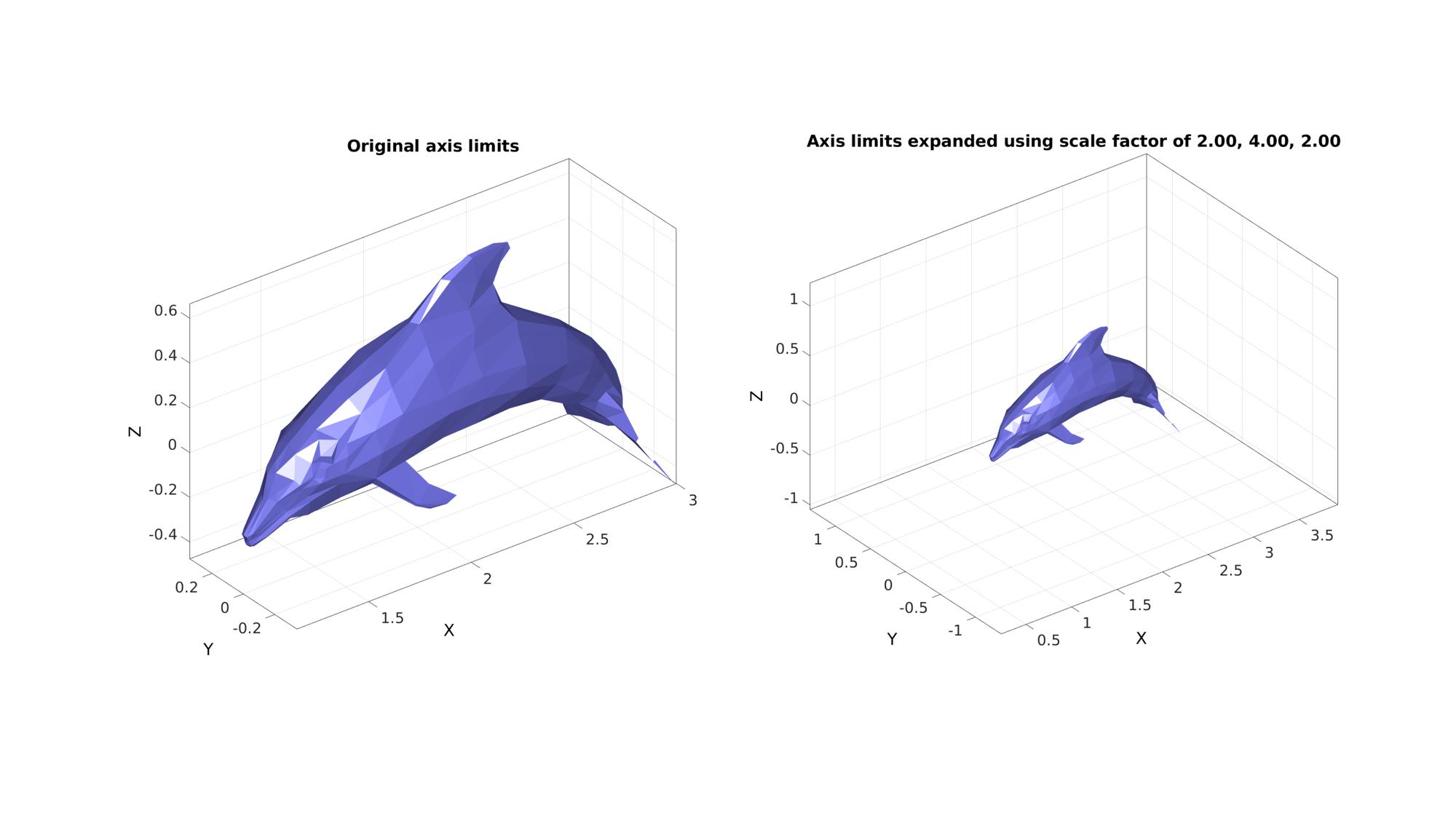

Scaling limits on a 3D plot

[F,V]=graphicsModels(8);

scaleFactor=[2 4 2];

cFigure;
h1=subplot(1,2,1); hold on;
title('Original axis limits');
gpatch(F,V,'bw','none');
axisGeom(h1,fontSize);
set(h1,'FontSize',fontSize);
camlight headlight;

h2=subplot(1,2,2); hold on;
title(['Axis limits expanded using scale factor of ',sprintf('%.2f, %.2f, %.2f',scaleFactor)]);
gpatch(F,V,'bw','none');
axisGeom(h1,fontSize);
axis_inc(scaleFactor,h2);
set(h2,'FontSize',fontSize);
camlight headlight;
drawnow;
