cmaperise

Below is a demonstration of the features of the cmaperise function

Contents

clear; close all; clc;

Syntax

Cmapped=cmaperise(C,cmap,clim);

Description

This function creates RGB colors for the data C using the colormap cmap and the limits clim.

Examples

[X,Y,Z]=peaks(50);
[F,V,C]=surf2patch(X,Y,Z,Z);

clim=[min(C(:)) max(C(:))];

%RGB color set with map 1
cmap1=viridis(25);
C_rgb_1=cmaperise(C,cmap1,clim);

%RGB color set with map 2
cmap2=gray(25);
C_rgb_2=cmaperise(C,cmap2,clim);

%RGB color set with map 3
cmap3=gjet(25);
C_rgb_3=cmaperise(C,cmap3,clim);

Visualize

% Offset coordinates so plots are side by side
V2=V;
V2(:,1)=V2(:,1)-min(V2(:,1))+max(V(:,1));
V3=V2;
V3(:,1)=V3(:,1)-min(V3(:,1))+max(V2(:,1));

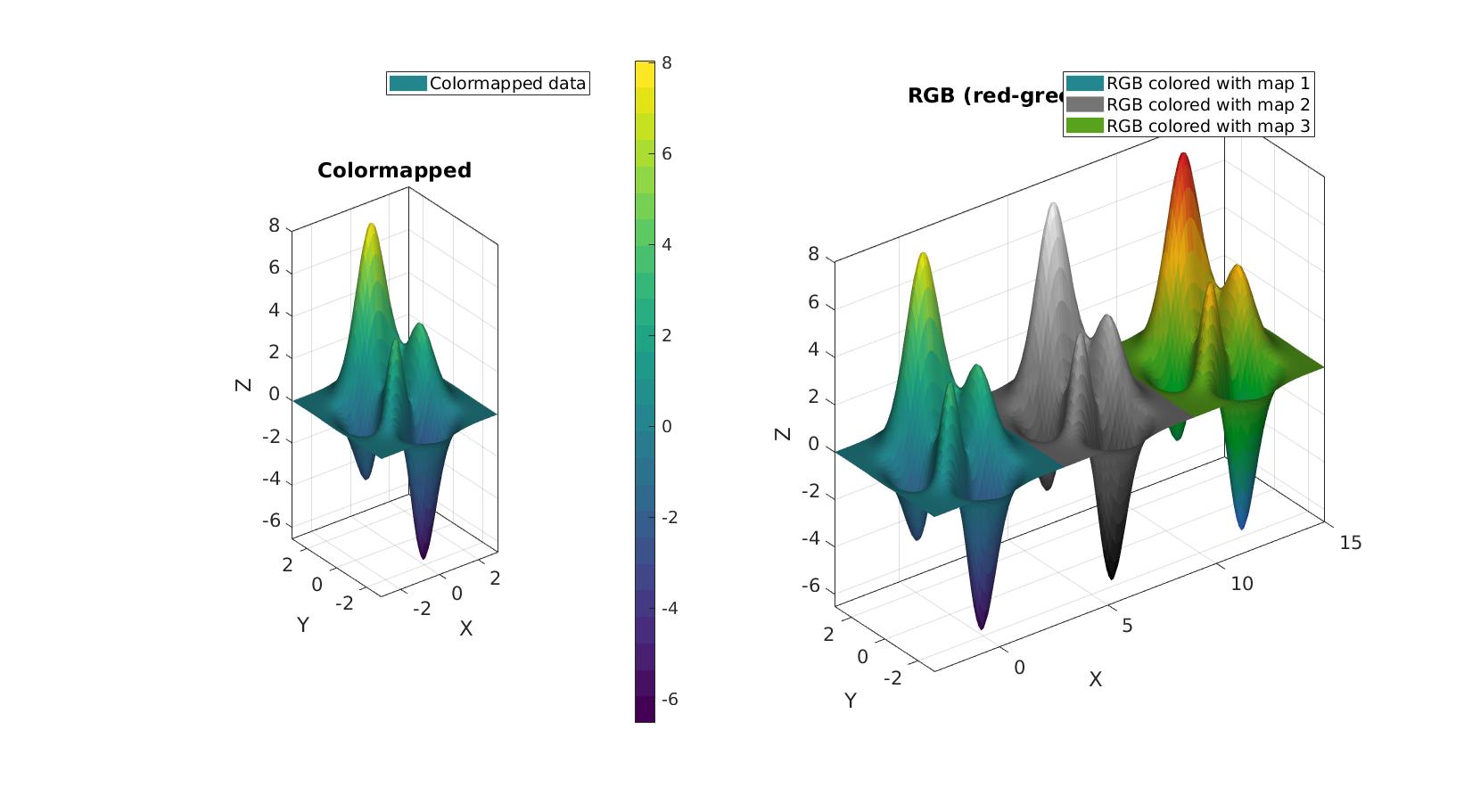

cFigure;

subplot(1,2,1);
title('Colormapped')
hp=gpatch(F,V,C,'none');
legend(hp,'Colormapped data');
axisGeom;
camlight headlight; colormap(gca,cmap1); colorbar;

subplot(1,2,2);
title('RGB (red-green-blue) painted')
hp1=gpatch(F,V,C_rgb_1,'none');
hp2=gpatch(F,V2,C_rgb_2,'none');
hp3=gpatch(F,V3,C_rgb_3,'none');
legend([hp1 hp2 hp3],{'RGB colored with map 1','RGB colored with map 2','RGB colored with map 3'});
axisGeom;
camlight headlight;

drawnow;
