curvePathOrderFix

Below is a demonstration of the features of the curvePathOrderFix function

Contents

clear; close all; clc;

Syntax

[Vf,indFix]=curvePathOrderFix(V);

Description

This function unscrambles a scrambles curve using distances. The function assumes that the proper point order can be resolved by choosing the next nearest point.

Examples

t=linspace(0,2*pi,25)';
V=[cos(t) sin(t) zeros(size(t))];
V=V(randperm(size(V,1)),:); %Scramble point set

Undo scrambling using curvePathOrderFix

[Vf,indFix]=curvePathOrderFix(V);

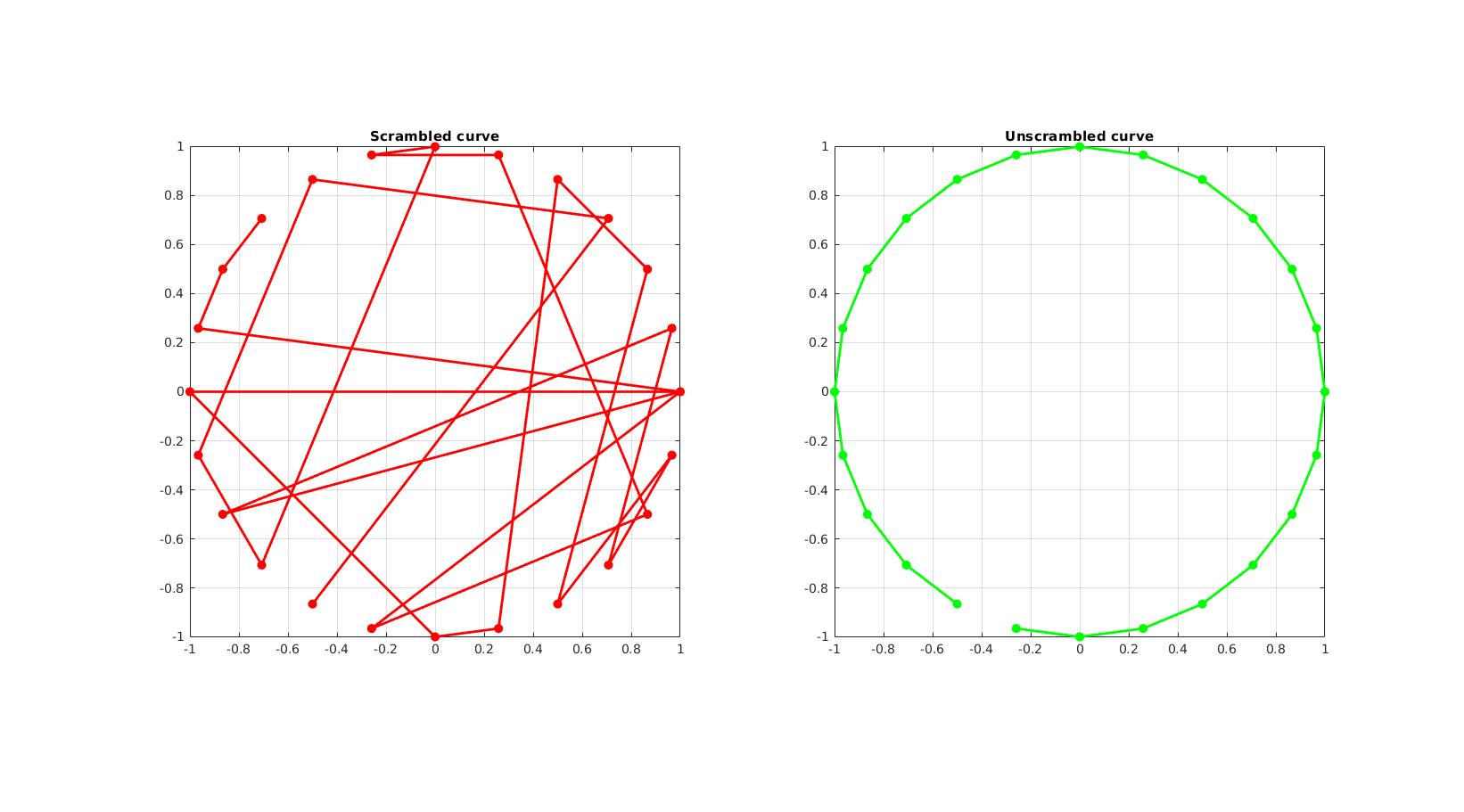

Visualization

cFigure;
subplot(1,2,1); hold on;
title('Scrambled curve');
plotV(V,'r.-','LineWidth',2,'MarkerSize',25);
axis tight; axis equal; grid on; box on; view(2);

subplot(1,2,2); hold on;
title('Unscrambled curve');
plotV(Vf,'g.-','LineWidth',2,'MarkerSize',25);
axis tight; axis equal; grid on; box on; view(2);
drawnow;
