delaunayZip

Below is a demonstration of the features of the delaunayZip function

Contents

Syntax

[F,V,C]=delaunayZip(F1,V1,F2,V2,inputStruct);

Description

The delaunayZip function stitches 2 surfaces together allong the input edges by using step-wise local 2D Delaunay triangulation.

Examples

clear; close all; clc;

%Plot settings
c1=[0.5 0.5 1];
c2=[1 0.5 0.5];
c3=[0.5 1 0.5];

Example: Stitching 2 surfaces together, partial spheres

Create example geometry

[F,V]=geoSphere(2,1);
[D]=patchEdgeLengths(F,V);

logicCutVertices=V(:,1)>(mean(V(:,1))+0.5*mean(D));
logicCutFaces=all(logicCutVertices(F),2);

F1=F(logicCutFaces,:);
V1=V;
V1(:,1)=V1(:,1)+mean(D);
[F1,V1]=patchCleanUnused(F1,V1);

F2=F(~logicCutFaces,:);
V2=V;
[F2,V2]=patchCleanUnused(F2,V2);
[F2,V2]=subtri(F2,V2,1);

[Eb1,E1,indBoundary1]=patchBoundary(F1,V1);
[ind1]=edgeListToCurve(Eb1);
ind1=ind1(1:end)';

[Eb2,E2,indBoundary2]=patchBoundary(F2,V2);
[ind2]=edgeListToCurve(Eb2);
ind2=ind2(1:end)';
ind2=flipud(ind2);

startInd1=ind1(1);
[~,startInd2]=minDist(V1(startInd1,:),V2);

startInd=[startInd1 startInd2]';

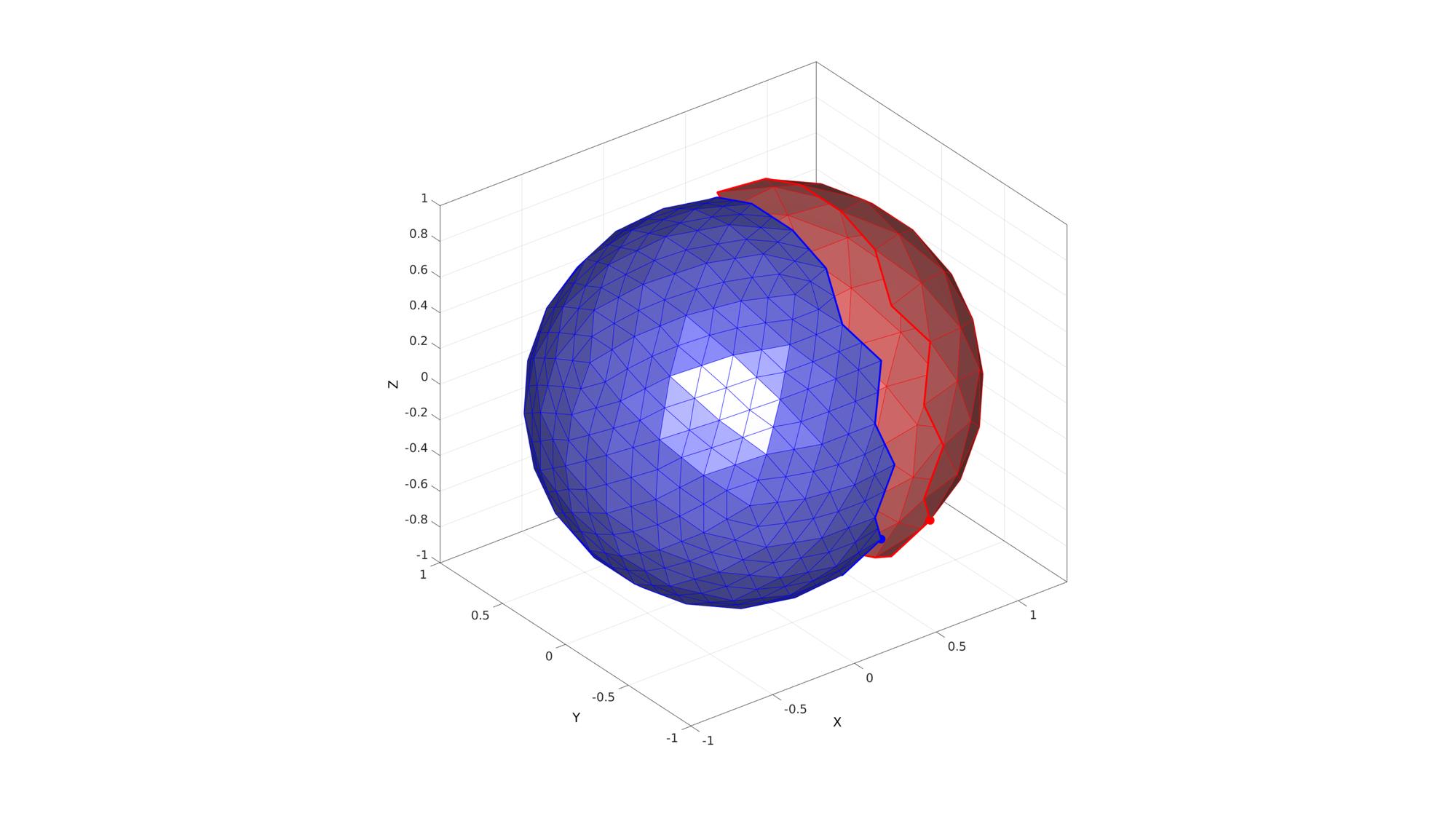

Visualizing surface sets

cFigure; hold on;
gpatch(F1,V1,'rw','r');
gpatch(F2,V2,'bw','b');

plotV(V1(ind1,:),'r-','LineWidth',3);
plotV(V2(ind2,:),'b-','LineWidth',3);

plotV(V1(startInd(1),:),'r.','MarkerSize',50);
plotV(V2(startInd(2),:),'b.','MarkerSize',50);

axisGeom;
camlight headlight;
drawnow;

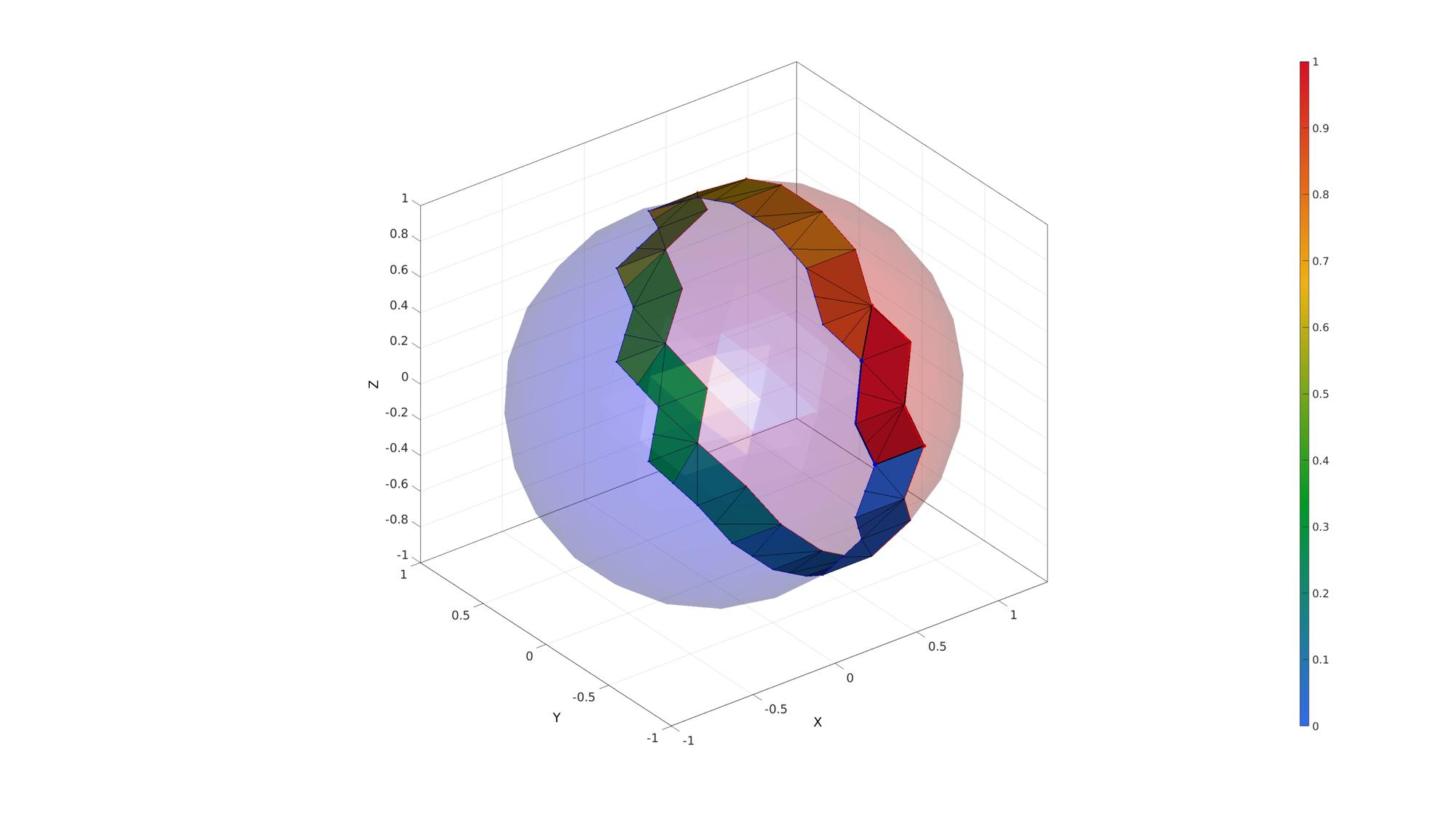

stitching using delaunayZip

%Create input structure
inputStruct.plotOn=1;
inputStruct.distLocal=2*max(patchEdgeLengths(F,V));
inputStruct.startInd=startInd;
inputStruct.ind1=ind1;
inputStruct.ind2=ind2;

[F,V,C]=delaunayZip(F1,V1,F2,V2,inputStruct);

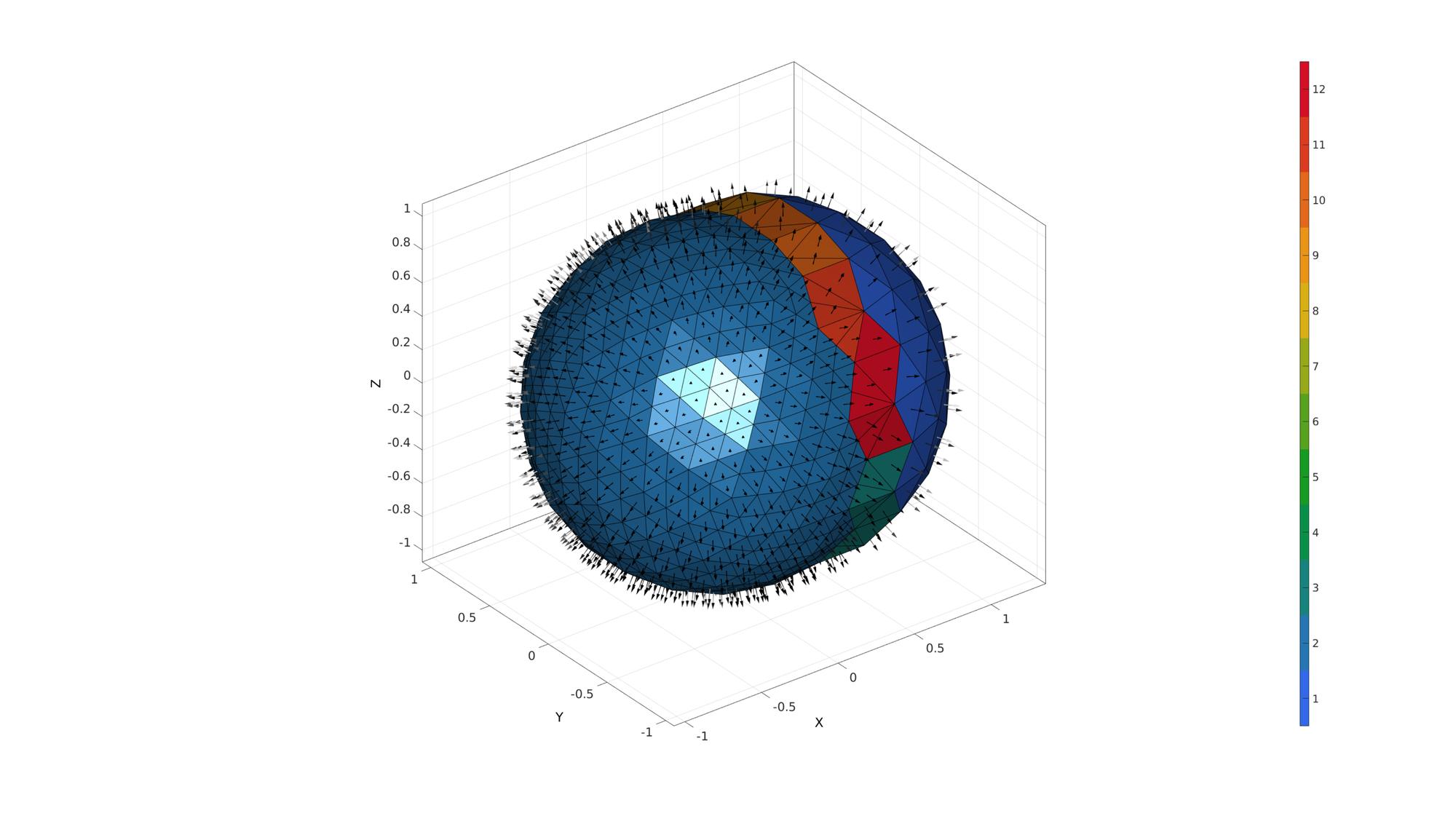

Visualize results

cFigure; hold on;
gpatch(F,V,C,'k',1);
patchNormPlot(F,V);
axisGeom;
camlight headlight;
colormap(gjet(250));
icolorbar;
drawnow;

Example: Stitching 2 surfaces together, mutant bunnySaurus

[F1,V1]=stanford_bunny('g');
F1_ori=F1; V1_ori=V1;
R=euler2DCM([0 0.25*pi 0]);
V1=V1*R;
logicKeep1=V1(:,1)<-25;
logicKeep1=any(logicKeep1(F1),2);
F1=F1(logicKeep1,:);
V1=V1*R';
V1=V1/2.8;
[F1,V1]=patchCleanUnused(F1,V1);

[F2,V2]=parasaurolophus;
[F2,V2]=subtri(F2,V2,1);
F2_ori=F2; V2_ori=V2;
V2=V2*50;
R=euler2DCM([0 0.30*pi 0]);
V2=V2*R;
logicKeep2=V2(:,1)>-48;
logicKeep2=any(logicKeep2(F2),2);
F2=F2(logicKeep2,:);
V2=V2*R';
[F2,V2]=patchCleanUnused(F2,V2);

V2(:,1)=V2(:,1)+40;
V2(:,2)=V2(:,2)-5;
V2(:,3)=V2(:,3)-32;

[Eb1,E1,indBoundary1]=patchBoundary(F1,V1);
[ind1]=edgeListToCurve(Eb1);
ind1=ind1(1:end)';

[Eb2,E2,indBoundary2]=patchBoundary(F2,V2);
[ind2]=edgeListToCurve(Eb2);
ind2=ind2(1:end)';

startInd1=ind1(1);
[~,startInd2]=minDist(V1(startInd1,:),V2);

startInd=[startInd1 startInd2]';

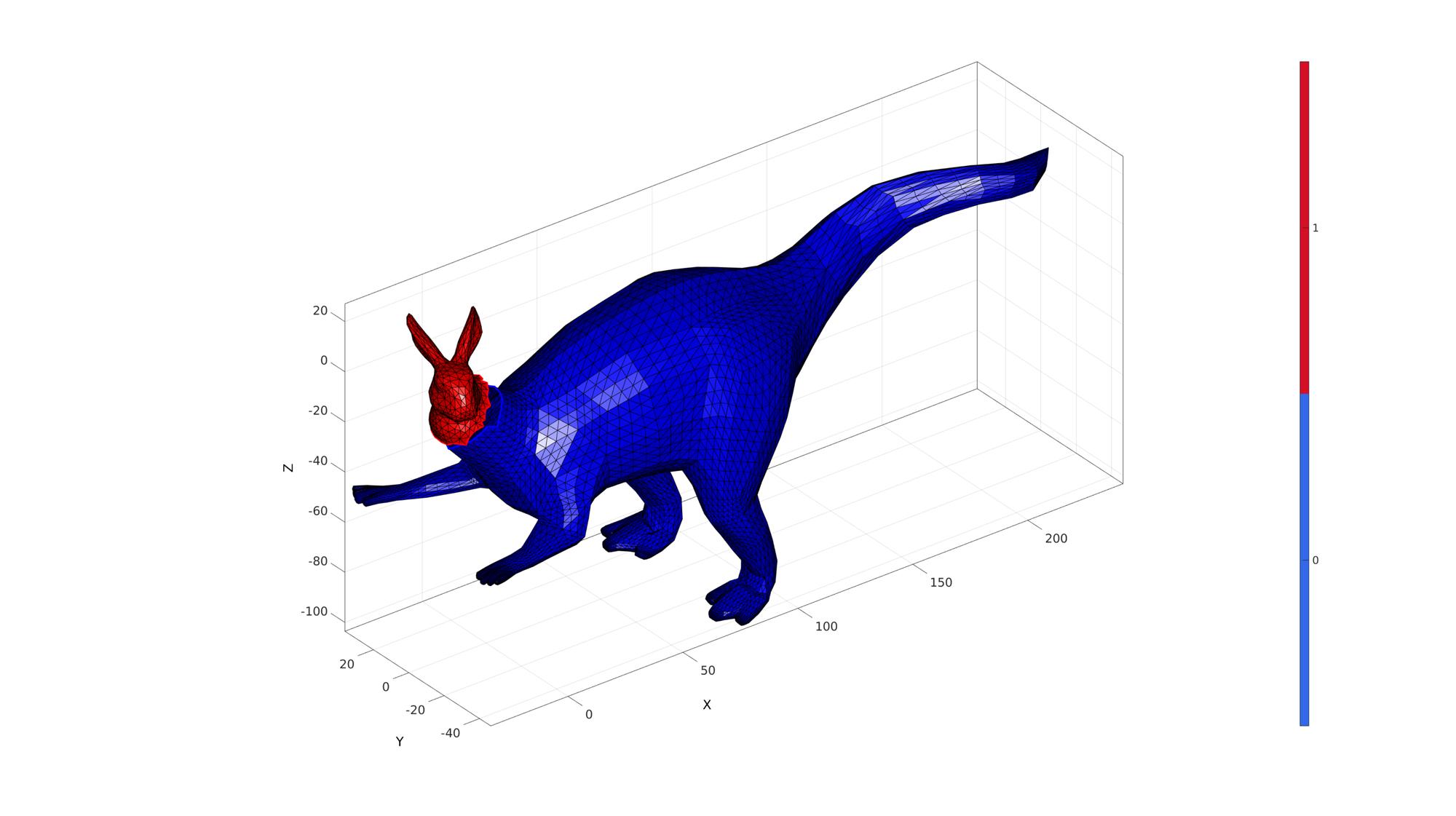

cFigure; hold on;
gpatch(F1,V1,'r','k',1);
gpatch(F2,V2,'b','k',1);
plotV(V1(ind1,:),'r.-','LineWidth',3);
plotV(V2(ind2,:),'b.-','LineWidth',3);
axisGeom;
camlight headlight;
colormap(gjet(250));
icolorbar;
drawnow;

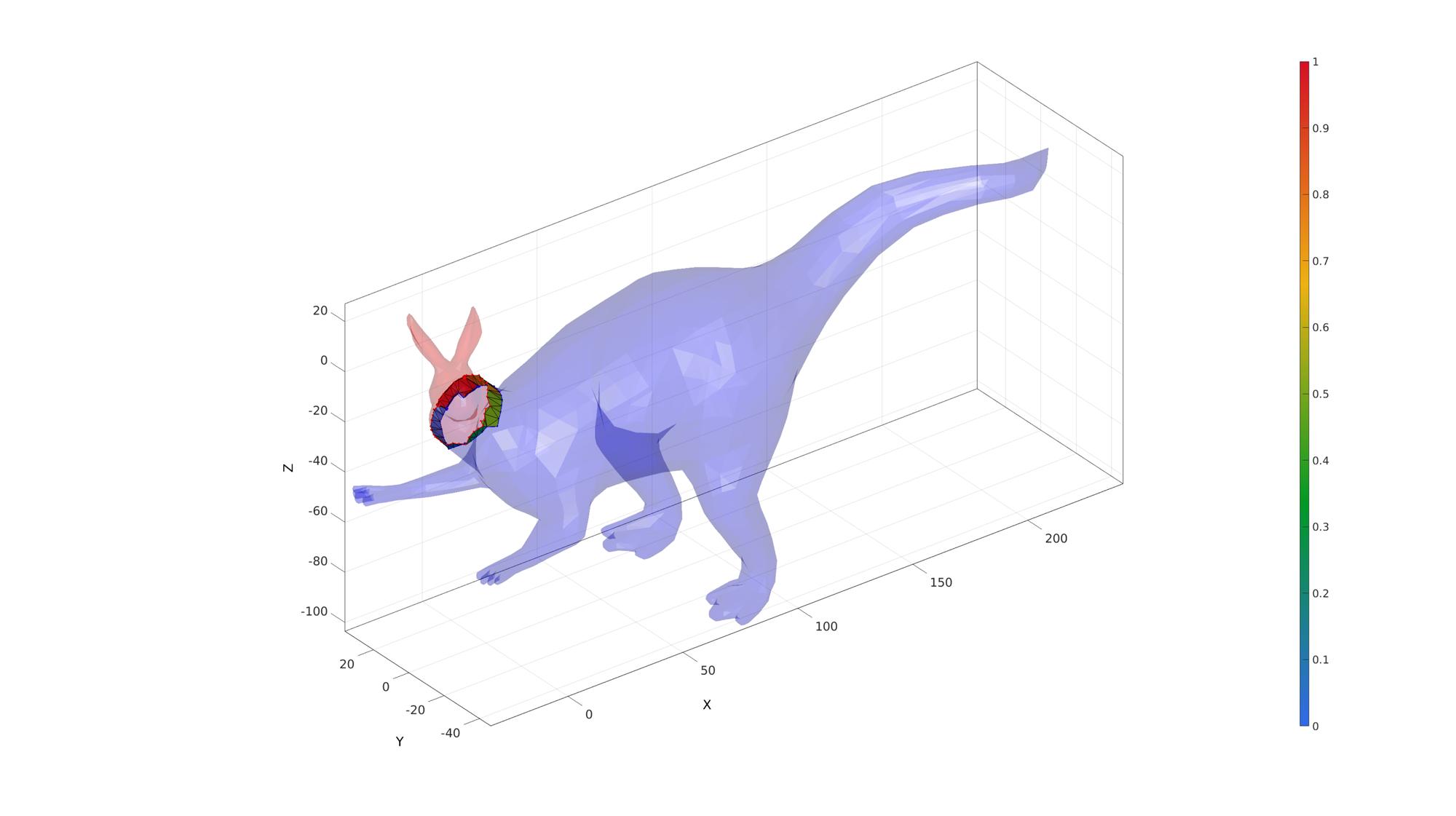

stitching using delaunayZip

%Create input structure
inputStruct.plotOn=1;
inputStruct.distLocal=2*max(patchEdgeLengths(F1,V1));
inputStruct.startInd=startInd;
inputStruct.ind1=ind1;
inputStruct.ind2=ind2;

[F,V,C]=delaunayZip(F1,V1,F2,V2,inputStruct);

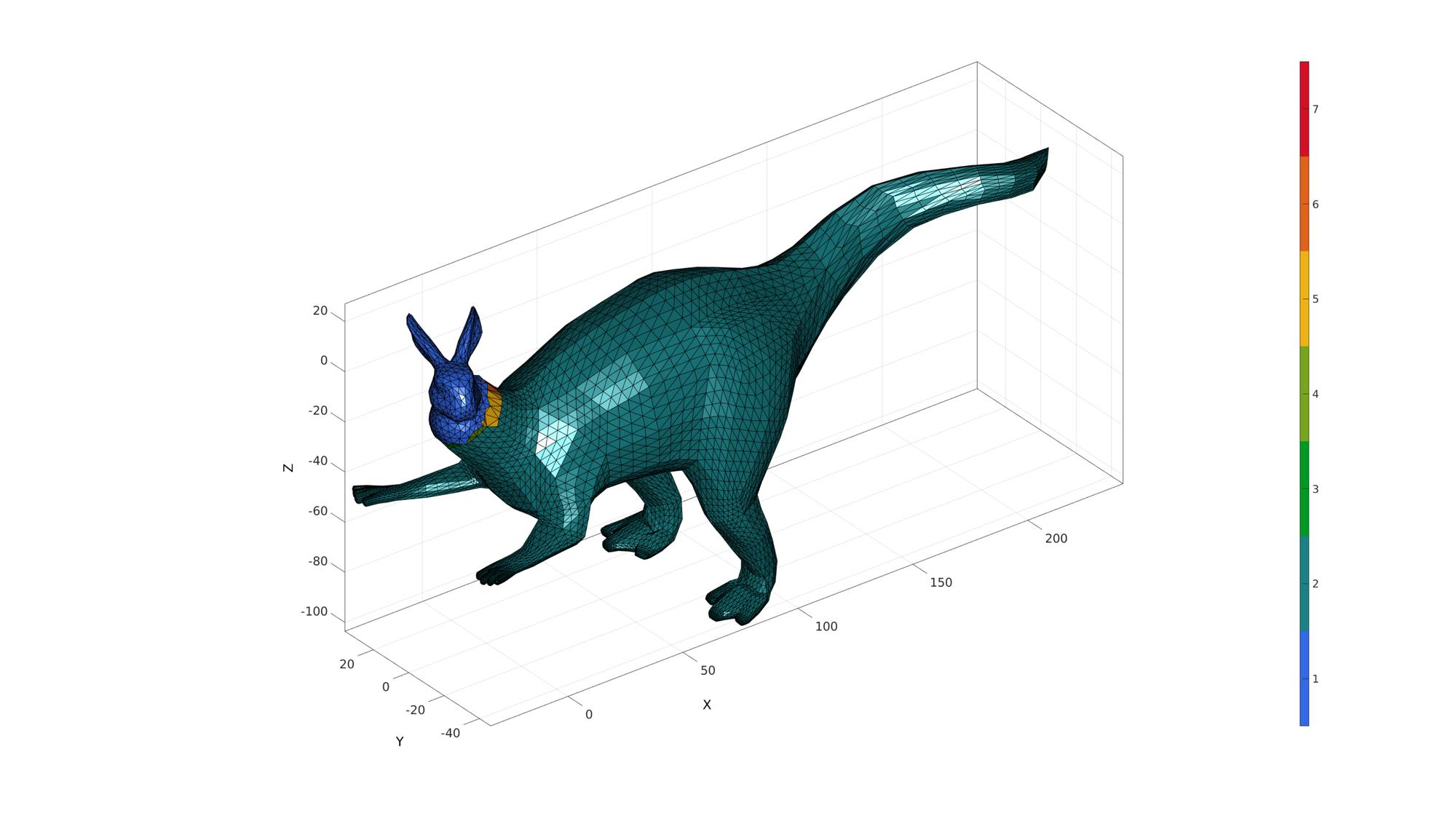

Visualize results

cFigure; hold on;
gpatch(F,V,C,'k',1);
axisGeom;
camlight headlight;
colormap(gjet(250));
icolorbar;
drawnow;

%Smoothen

cPar.n=10;
[V]=patchSmooth(F,V,[],cPar);

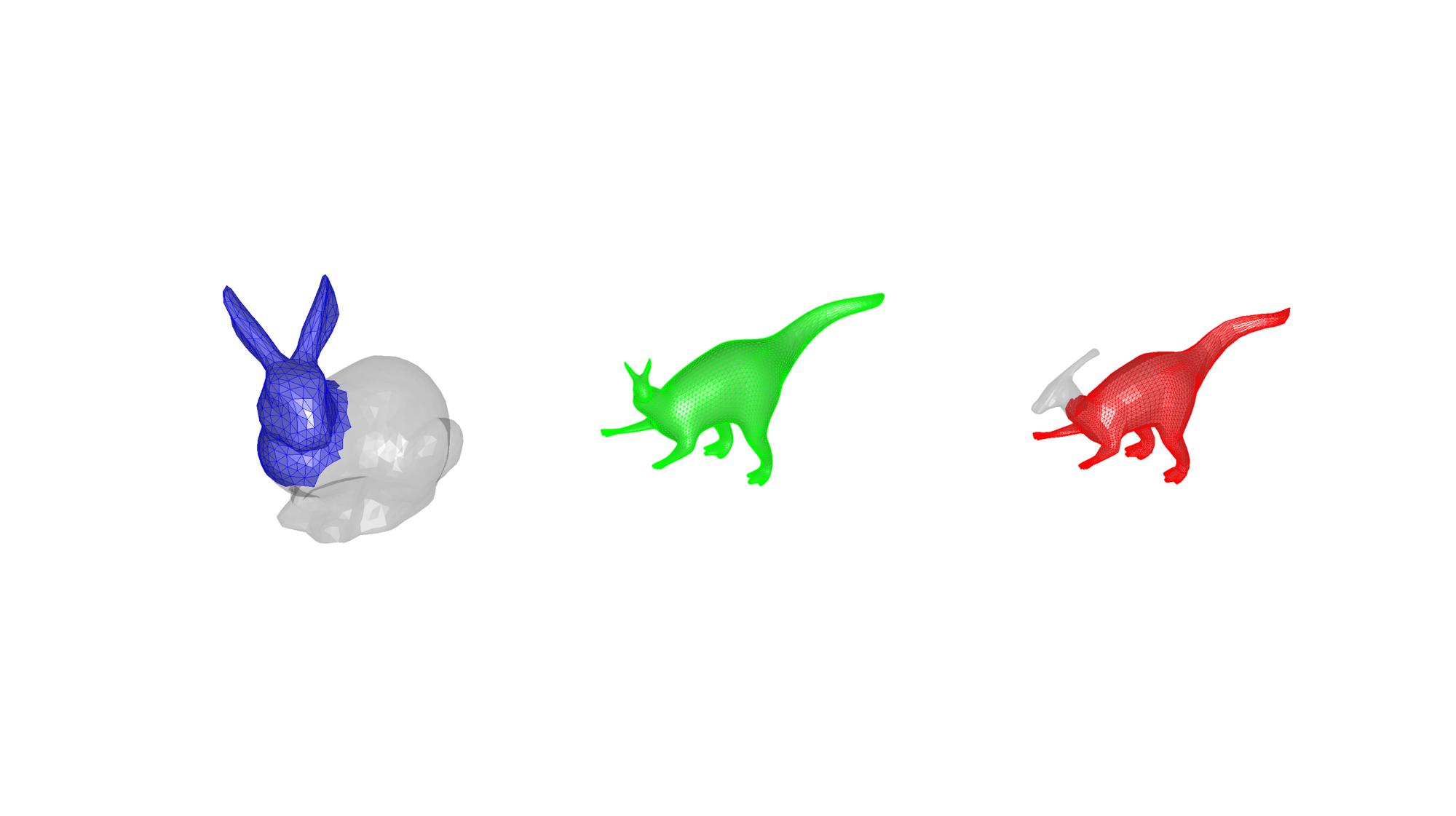

Visualize results

cFigure;
subplot(1,3,1); hold on;
gpatch(F1_ori(logicKeep1,:),V1_ori,c1,'b',1);
gpatch(F1_ori(~logicKeep1,:),V1_ori,'kw','none',0.2);
axisGeom;
camlight headlight;
axis off;

subplot(1,3,2); hold on;
% gpatch(F(C==1,:),V,'b','none',1);
% gpatch(F(C==2,:),V,'r','none',1);
% gpatch(F(~ismember(C,[1 2]),:),V,'kw','none',1);
gpatch(F,V,c3,'g',1);
axisGeom;
camlight headlight;
axis off;

subplot(1,3,3); hold on;
gpatch(F2_ori(logicKeep2,:),V2_ori,c2,'r',1);
gpatch(F2_ori(~logicKeep2,:),V2_ori,'kw','none',0.2);
axisGeom;
camlight headlight;
axis off;

drawnow;
