foamWrap

Below is a demonstration of the features of the foamWrap function

Contents

Syntax

[FT,VT,CT,CT_c]=foamWrap(F,V,C,cPar);

Description

Use foamWrap to generate a foam like structure on top of an input mesh

Examples

clear; close all; clc;

Plot Settings

fontSize=15;
faceAlpha=1;
edgeColor=0.1*ones(1,3);
edgeWidth=1;
cmap=gjet(250);

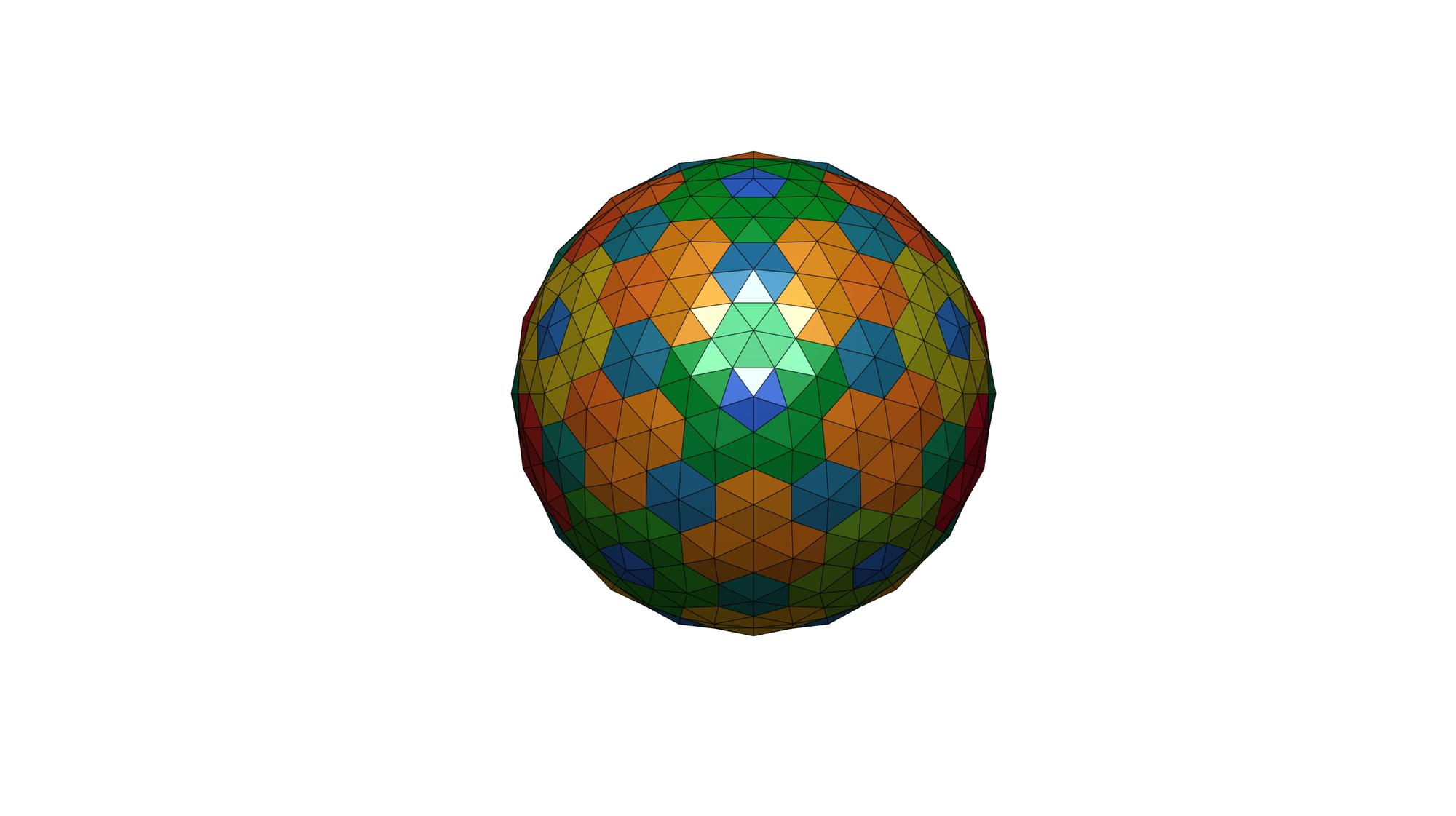

Create surface model

[F,V,~]=geoSphere(2,1); %Geodesic sphere
% [F,V]=parasaurolophus;
% [F,V]=cow;
% [F,V]=stanford_bunny;

[F,V,C,indIni]=triPolyDualRefine(F,V);

cFigure;
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);

patch('Faces',F,'Vertices',V,'FaceColor','flat','CData',C,'FaceAlpha',faceAlpha,'lineWidth',edgeWidth,'edgeColor','k');

camlight headlight;
colormap(cmap);
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;  grid on; axis off;
view(0,59);

cPar.n=3;
cPar.dirFlip=1;
cPar.foamThickness=[]; %Empty uses default which is mean edgelength based
cParSmooth.Method='HC';
cParSmooth.n=25;
cPar.cParSmooth=cParSmooth;

L_remove=true(size(F,1),1);

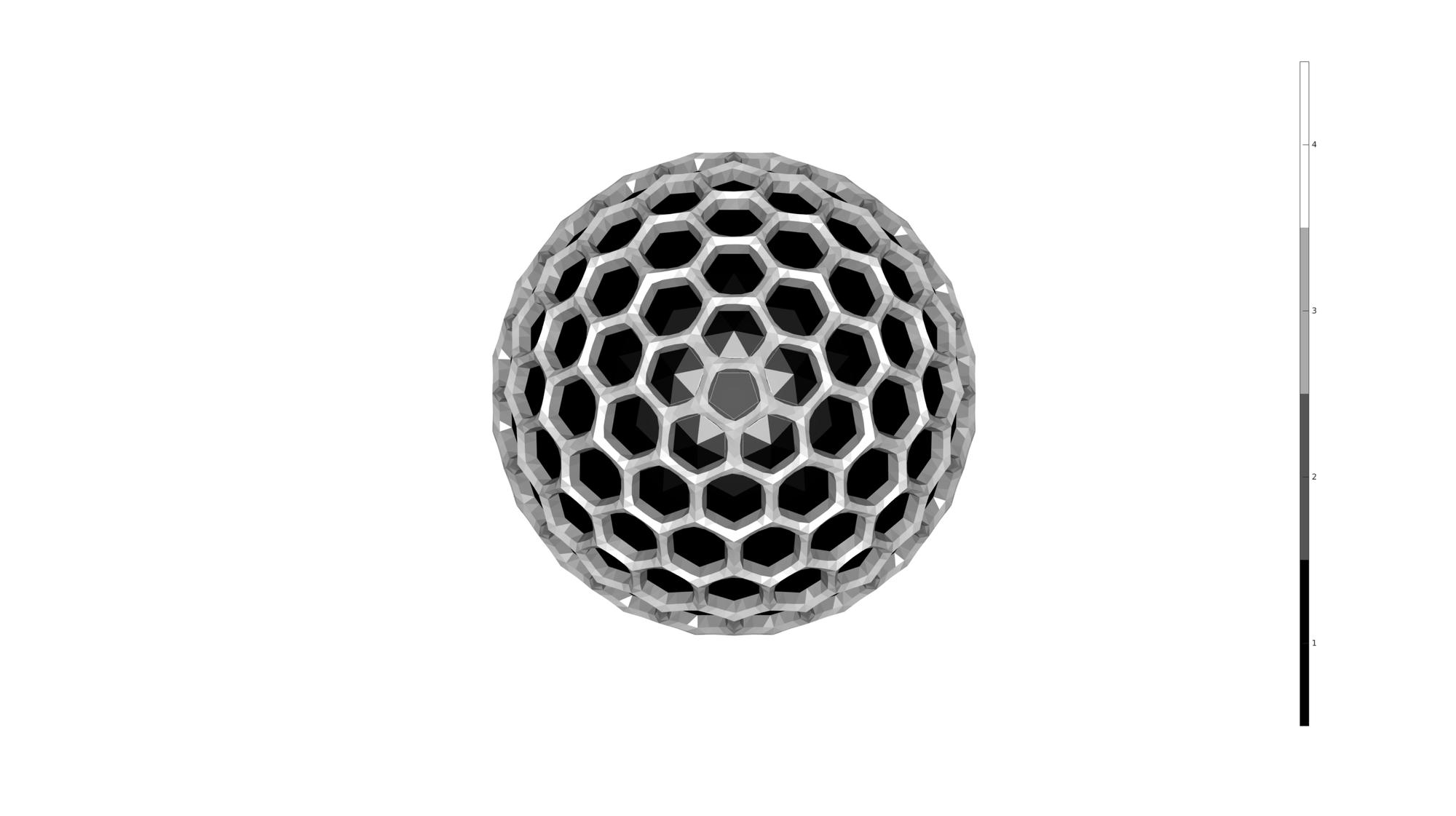

[FT,VT,CT,CT_c]=foamWrap(F,V,C,cPar);

cFigure; hold on;
xlabel('X','FontSize',fontSize); ylabel('Y','FontSize',fontSize); zlabel('Z','FontSize',fontSize);

gpatch(FT,VT,CT_c,'none',1);

colormap(gray(250)); icolorbar;
set(gca,'FontSize',fontSize);
view(3); axis tight;  axis equal;  grid on;
view(0,58.25);
camlight headlight;
axis off;
