getInnerVoxel

Below is a demonstration of the features of the getInnerVoxel function

Contents

clear; close all; clc;

Syntax

[indInternal]=getInnerVoxel(L,searchRadius,plotOn);

Description

Obtains a voxel index for a voxel that is part of the interior of the labelled image L. searchRadius defines the approximate distance to the boundary. plotOn visualizes the label image and interior point.

Examples

Plot settings

fontSize=10;
faceAlpha1=1;
faceAlpha2=0.3;
cMap=[0.5 0.5 0.5; gjet(4)];

Create example image

[F,V]=graphicsModels(8);

[M,G,~]=patch2Im(F,V,[],0.05);
L=~isnan(M);

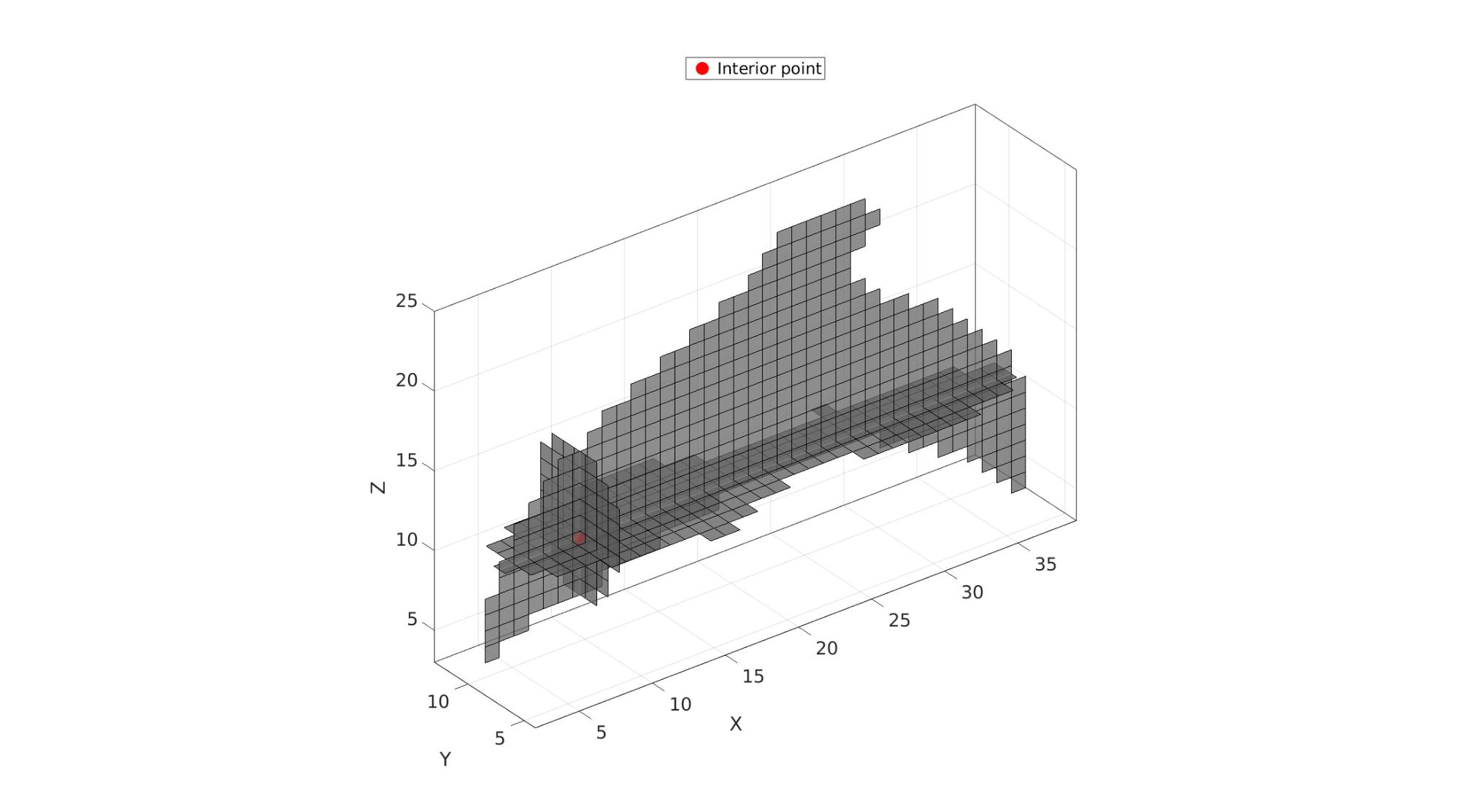

Get index for an interior voxel

searchRadius=3;
plotOn=1;
[indInternal]=getInnerVoxel(L,searchRadius,plotOn)

indInternal =

        7533
