graphicsModels

Below is a demonstration of the features of the graphicsModels function

Contents

Syntax

[F,V]=graphicsModels(modelId); [F,V]=graphicsModels(modelName);

Description

This function offers easy access to an array of different surface models available in GIBBON.

Examples

clear; close all; clc;

% Plot settings
fontSize=15;
faceColor='b';
faceAlpha=1;
edgeColor='k';
edgeWidth=0.5;

hf=cFigure;

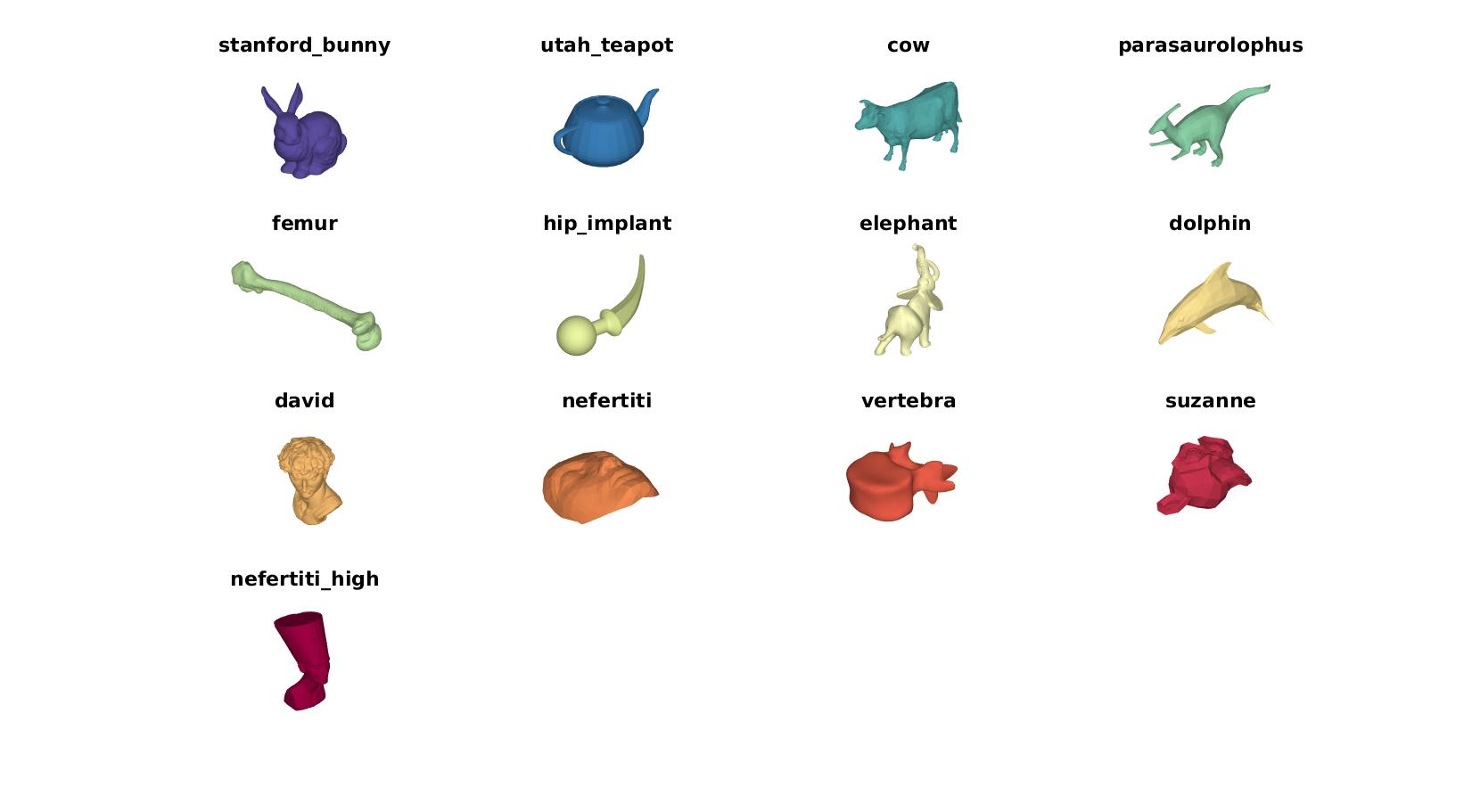

surfaceNames={'stanford_bunny','utah_teapot','cow','parasaurolophus','femur','hip_implant','elephant','dolphin','david','nefertiti','vertebra','suzanne','nefertiti_high'};
plotColors=spectral(numel(surfaceNames));
for q=1:1:numel(surfaceNames)
   subplot(4,4,q);

    [F,V]=graphicsModels(surfaceNames{q}); % Get surface

    title(surfaceNames{q},'FontSize',fontSize,'Interpreter','none');
    gpatch(F,V,plotColors(q,:),'none');
    axisGeom(gca,fontSize);
    camlight('headlight');
    axis off;
end
gdrawnow;
