hexMeshCylinder

Below is a demonstration of the features of the hexMeshCylinder function

Creating a solid hexahedral mesh sphere

clear; close all; clc;

Plot settings

fontSize=15;
faceAlpha1=1;
edgeColor=0.25*ones(1,3);
edgeWidth=2;

Creating a solid hexahedral mesh sphere

pointSpacing=0.5;
cylRadius=1;
cylLength=2;

[meshStruct]=hexMeshCylinder(cylRadius,cylLength,pointSpacing);

% Access model element and patch data
Fb=meshStruct.facesBoundary;
Cb=meshStruct.boundaryMarker;
V=meshStruct.nodes;
E=meshStruct.elements;

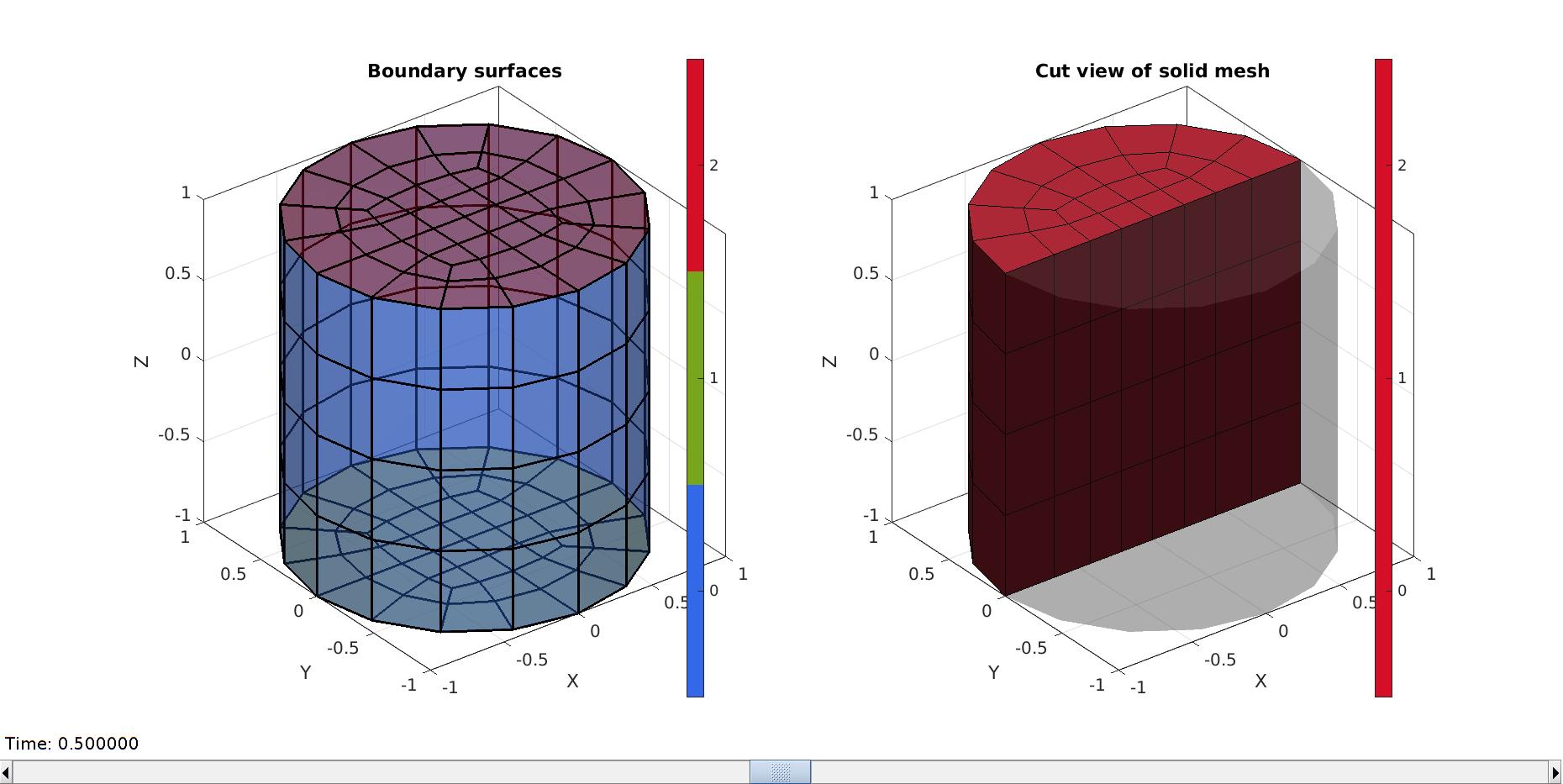

Visualize mesh

hFig=cFigure;
subplot(1,2,1); hold on;
title('Boundary surfaces','FontSize',fontSize);
gpatch(Fb,V,Cb,'k',0.5,2);
% patchNormPlot(Fb,V);
axisGeom(gca,fontSize);
colormap(gjet); icolorbar;
camlight headlight;

hs=subplot(1,2,2); hold on;
title('Cut view of solid mesh','FontSize',fontSize);
optionStruct.hFig=[hFig hs];
gpatch(Fb,V,'kw','none',0.25);
meshView(meshStruct,optionStruct);
axisGeom(gca,fontSize);
drawnow;
