hexMeshHemiSphere

Below is a demonstration of the features of the hexMeshHemiSphere function

Contents

clear; close all; clc;

Plot settings

fontSize=15;
faceAlpha1=1;
edgeColor=0.25*ones(1,3);
edgeWidth=2;

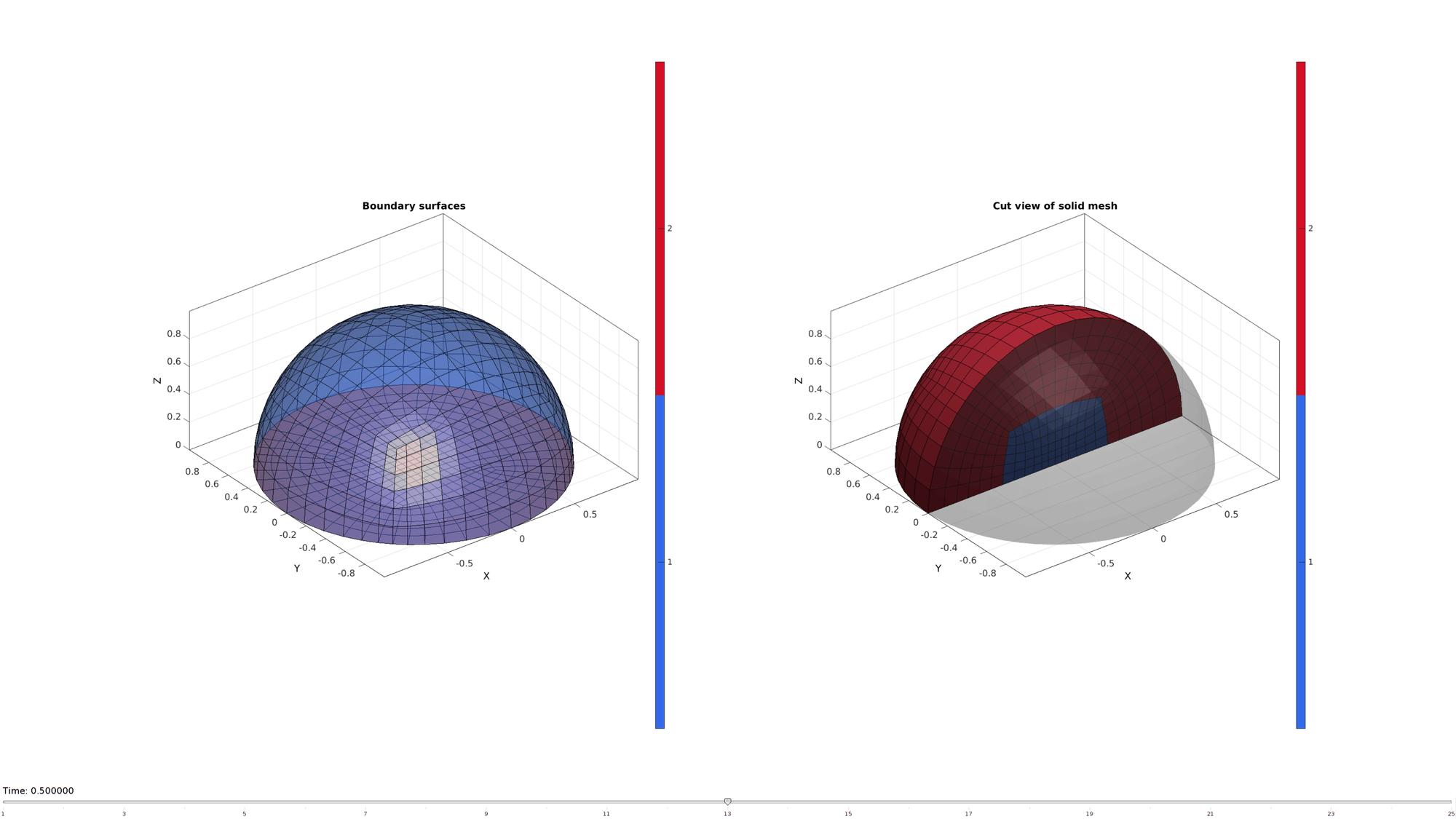

Creating a solid hexahedral mesh sphere

Creating a solid hexahedral mesh sphere

%Control settings
optionStruct.sphereRadius=1;
optionStruct.coreRadius=optionStruct.sphereRadius/2;
optionStruct.numElementsMantel=6;
optionStruct.numElementsCore=optionStruct.numElementsMantel*2;
optionStruct.outputStructType=2;
optionStruct.makeHollow=0;
optionStruct.cParSmooth.n=25;

% %Creating sphere
[meshOutput]=hexMeshHemiSphere(optionStruct);

% Access model element and patch data
Fb=meshOutput.facesBoundary;
Cb=meshOutput.boundaryMarker;
V=meshOutput.nodes;
E=meshOutput.elements;

Visualize mesh

hFig=cFigure;
subplot(1,2,1); hold on;
title('Boundary surfaces','FontSize',fontSize);
gpatch(Fb,V,Cb,'k',0.5);
% patchNormPlot(Fb,V);
axisGeom(gca,fontSize);
colormap(gjet); icolorbar;
camlight headlight;

hs=subplot(1,2,2); hold on;
title('Cut view of solid mesh','FontSize',fontSize);
optionStruct.hFig=[hFig hs];
gpatch(Fb,V,'kw','none',0.25);
meshView(meshOutput,optionStruct);
axisGeom(gca,fontSize);
drawnow;

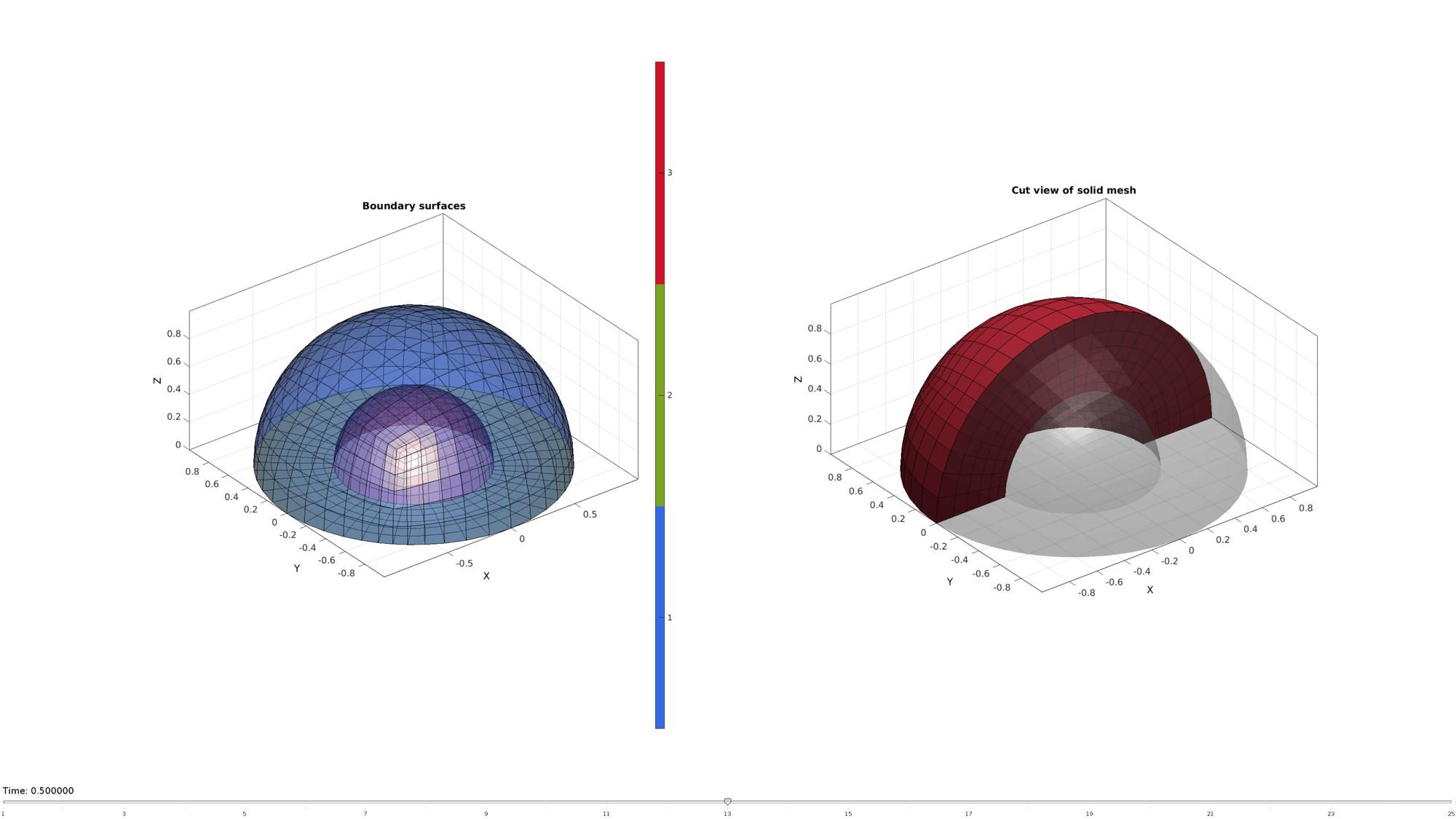

Creating a hollow hexahedral mesh hemisphere

Creating a hollow hexahedral mesh hemisphere

%Control settings
optionStruct.sphereRadius=1;
optionStruct.coreRadius=optionStruct.sphereRadius/2;
optionStruct.numElementsMantel=6;
optionStruct.numElementsCore=optionStruct.numElementsMantel*2;
optionStruct.outputStructType=2;
optionStruct.makeHollow=1;
optionStruct.cParSmooth.n=25;

% %Creating sphere
[meshOutput]=hexMeshHemiSphere(optionStruct);

% Access model element and patch data
Fb=meshOutput.facesBoundary;
Cb=meshOutput.boundaryMarker;
V=meshOutput.nodes;
E=meshOutput.elements;

Visualize mesh

hFig=cFigure;
subplot(1,2,1); hold on;
title('Boundary surfaces','FontSize',fontSize);
gpatch(Fb,V,Cb,'k',0.5);
% patchNormPlot(Fb,V);
axisGeom(gca,fontSize);
colormap(gjet); icolorbar;
camlight headlight;

hs=subplot(1,2,2); hold on;
title('Cut view of solid mesh','FontSize',fontSize);
optionStruct.hFig=[hFig hs];
gpatch(Fb,V,'kw','none',0.25);
meshView(meshOutput,optionStruct);
axisGeom(gca,fontSize);
drawnow;
