interp_spherical

Below is a demonstration of the features of the interp_spherical function

Contents

Syntax

[Ri,Ci]=interp_spherical(T,P,R,Ti,Pi,interpMethod,numberInterpSteps);

Description

The function interp_spherical interpolates in a spherical coordinate sytem using standard interp2 type interpolation methods or those based on Delaunay tesselations in the angular space such as natural neighbour interpolation method. Standard spherical interpolation of this type creates artifacts at the poles. Hence interp_spherical splits the interpolation up into a number of steps (set by numberInterpSteps). The function aims to interpolate at the "equator" such that polar artifacts can be minimized. For each interpolation step the interpolation problem is rotated such that the currect "equatorial band" is centered at the equator.

Examples

clear; close all; clc;

Example: Interpolating data in spherical coordinates

Plot settings

fontSize=15;

Simulating sparse sampling of complex spherical function. A triangulated representation is constructed allowing for surface visualization. This is however not required.

numRefine1=2; %Number of refinement steps from icosahedron
r=2; %Inner sphere radius
[F,V,~]=geoSphere(numRefine1,r);

[~,V2,~]=geoSphere(0,r);

[D,indMin]=minDist(V,V2);
D=D.^2;
D=D-min(D(:));
D=D./max(D(:));
D=D.*r;

[T,P,R] = cart2sph(V(:,1),V(:,2),V(:,3));
R=R-0.6*D;
[V(:,1),V(:,2),V(:,3)] = sph2cart(T,P,R);

[T,P,R] = cart2sph(V(:,1),V(:,2),V(:,3)); %Get spherical coordinates

Defining denser point set for interpolation

numRefine2=numRefine1+2;
[Fi,Vs,Vsi]=geoSphere(numRefine2,1);
Ti=Vsi(:,1); Pi=Vsi(:,2); %Get spherical coordinates

Interpolate in spherical coordinates

numberInterpSteps=8; %Number of interpolation steps ("equitorial bands")
interpMethod='cubic'; %The interpolation method

%Spherical interpolation
[Ri,Ci]=interp_spherical(T,P,R,Ti,Pi,interpMethod,numberInterpSteps);

%Convert to Cartesian coordinates
[Vi(:,1),Vi(:,2),Vi(:,3)]=sph2cart(Ti,Pi,Ri);

%Plotting results
cFigure;
subplot(1,3,1); hold on; grid on; view(3);
title('Complex surface, coarse original form','FontSize',fontSize);
gpatch(F,V,0.5*ones(1,3),'k');
axisGeom(gca,fontSize);
camlight('headlight');
ha=axis;

subplot(1,3,2); hold on; grid on; view(3);
title('Refined spherical coordinates','FontSize',fontSize);
gpatch(Fi,Vs,0.8*ones(1,3),'k');
h1=scatter3(Vs(:,1),Vs(:,2),Vs(:,3),35,Ci,'filled');
colormap(gca,gjet(numberInterpSteps)); icolorbar([1 8]);
axisGeom(gca,fontSize);
camlight('headlight');

subplot(1,3,3); hold on; grid on; view(3);
title('Dense interpolated form','FontSize',fontSize);
gpatch(F,V,0.5*ones(1,3),'none',0.1);
h2=gpatch(Fi,Vi,Ci,'k');
axisGeom(gca,fontSize);
colormap(gca,gjet(numberInterpSteps)); icolorbar([1 8]);
camlight('headlight');
axis(ha);
drawnow;

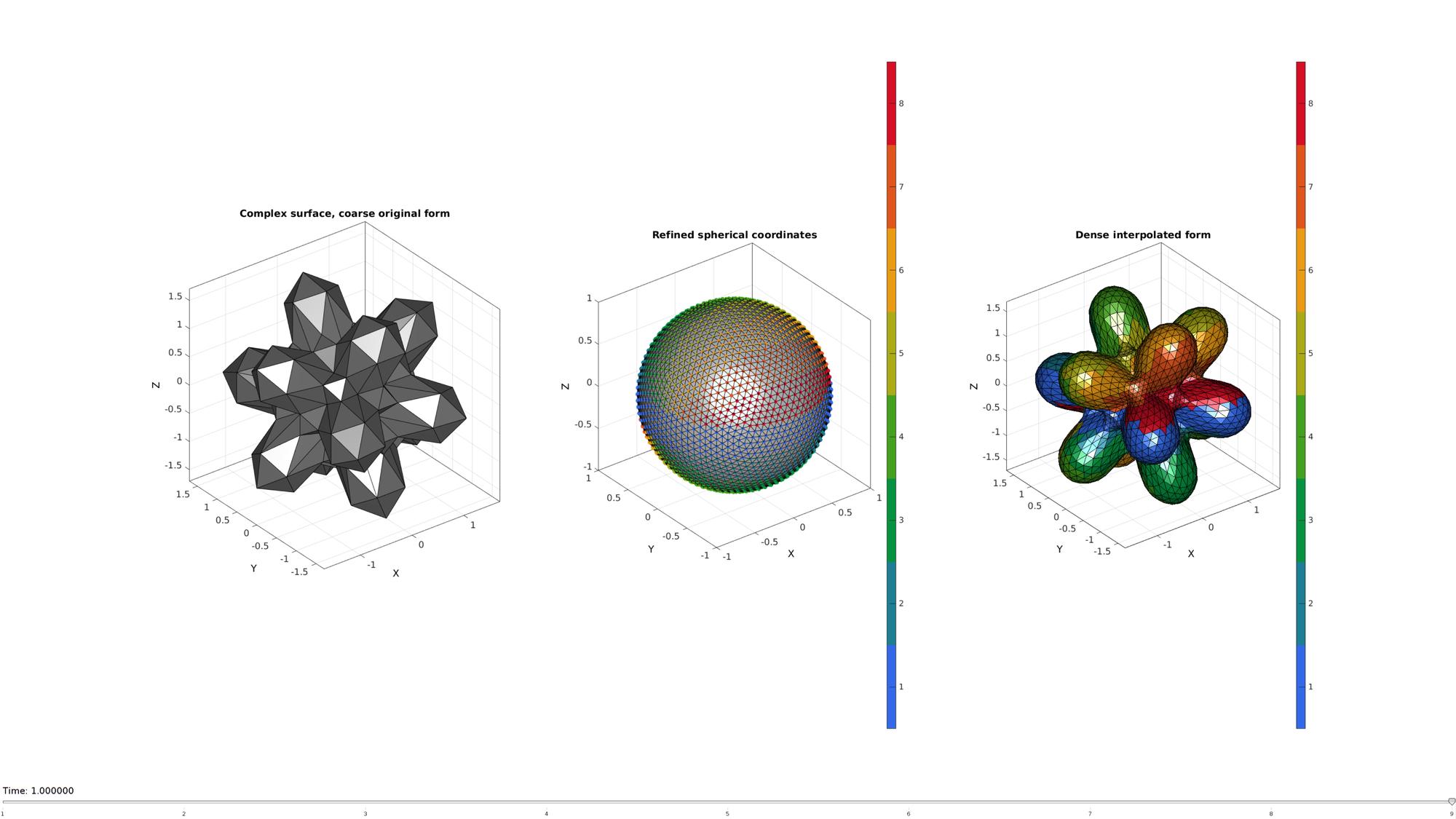

Animate the process

hf=cFigure;
subplot(1,3,1); hold on; grid on; view(3);
title('Complex surface, coarse original form','FontSize',fontSize);
gpatch(F,V,0.5*ones(1,3),'k');
axisGeom(gca,fontSize);
camlight('headlight');
ha=axis;

subplot(1,3,2); hold on; grid on; view(3);
title('Refined spherical coordinates','FontSize',fontSize);
gpatch(Fi,Vs,0.8*ones(1,3),'k');
h1=scatter3(Vs(:,1),Vs(:,2),Vs(:,3),35,Ci,'filled');
colormap(gca,gjet(numberInterpSteps)); icolorbar([1 8]);
axisGeom(gca,fontSize);
camlight('headlight');

subplot(1,3,3); hold on; grid on; view(3);
title('Dense interpolated form','FontSize',fontSize);
gpatch(F,V,0.5*ones(1,3),'none',0.1);
h2=gpatch(Fi,Vi,Ci,'k');
axisGeom(gca,fontSize);
colormap(gca,gjet(numberInterpSteps)); icolorbar([1 8]);
camlight('headlight');
axis(ha);
drawnow;

Add animation component based on anim8 to visualize stepwise process

animStruct.Time=linspace(0,1,numberInterpSteps+1);
Cn=nan(size(Ri));
Rn=ones(size(Ri));
for q=1:1:numberInterpSteps+1
    if q==1
        [Vn(:,1),Vn(:,2),Vn(:,3)]=sph2cart(Ti,Pi,Rn);
    else
        Rn(Ci==q-1)=Ri(Ci==q-1);
        [Vn(:,1),Vn(:,2),Vn(:,3)]=sph2cart(Ti,Pi,Rn);
        Cn(Ci==q-1)=Ci(Ci==q-1);
    end
    %Set entries in animation structure
    animStruct.Handles{q}=[h1,h2,h2]; %Handles of objects to animate
    animStruct.Props{q}={'CData','Vertices','CData'}; %Properties of objects to animate
    animStruct.Set{q}={Cn,Vn,Cn}; %Property values for to set in order to animate
end
anim8(hf,animStruct);
