isGlobalSurfDirOutward
Below is a demonstration of the features of the isGlobalSurfDirOutward function
Contents
clear; close all; clc;
Syntax
[L]=isGlobalSurfDirOutward(F,V);
Description
This function returns a boolean denoting wether surface normals are pointing outward (1) (which would result in a positive volume being computed) or inward (2) (which would result in a negative volume being computed). The method assumes that the normal directions are coherent across the surface.
Examples
Example surface
[F,V]=stanford_bunny;
Computing a logic denoting whether the normals point outward or inwards. For the example surface the normals point outward, so the logical should return a true
% This one should be true
[L]=isGlobalSurfDirOutward(F,V)
L = logical 1
However inverting the surface causes the normal directions to point inward, hence a false is returned.
% Reversed should be false
[L]=isGlobalSurfDirOutward(fliplr(F),V)
L = logical 0

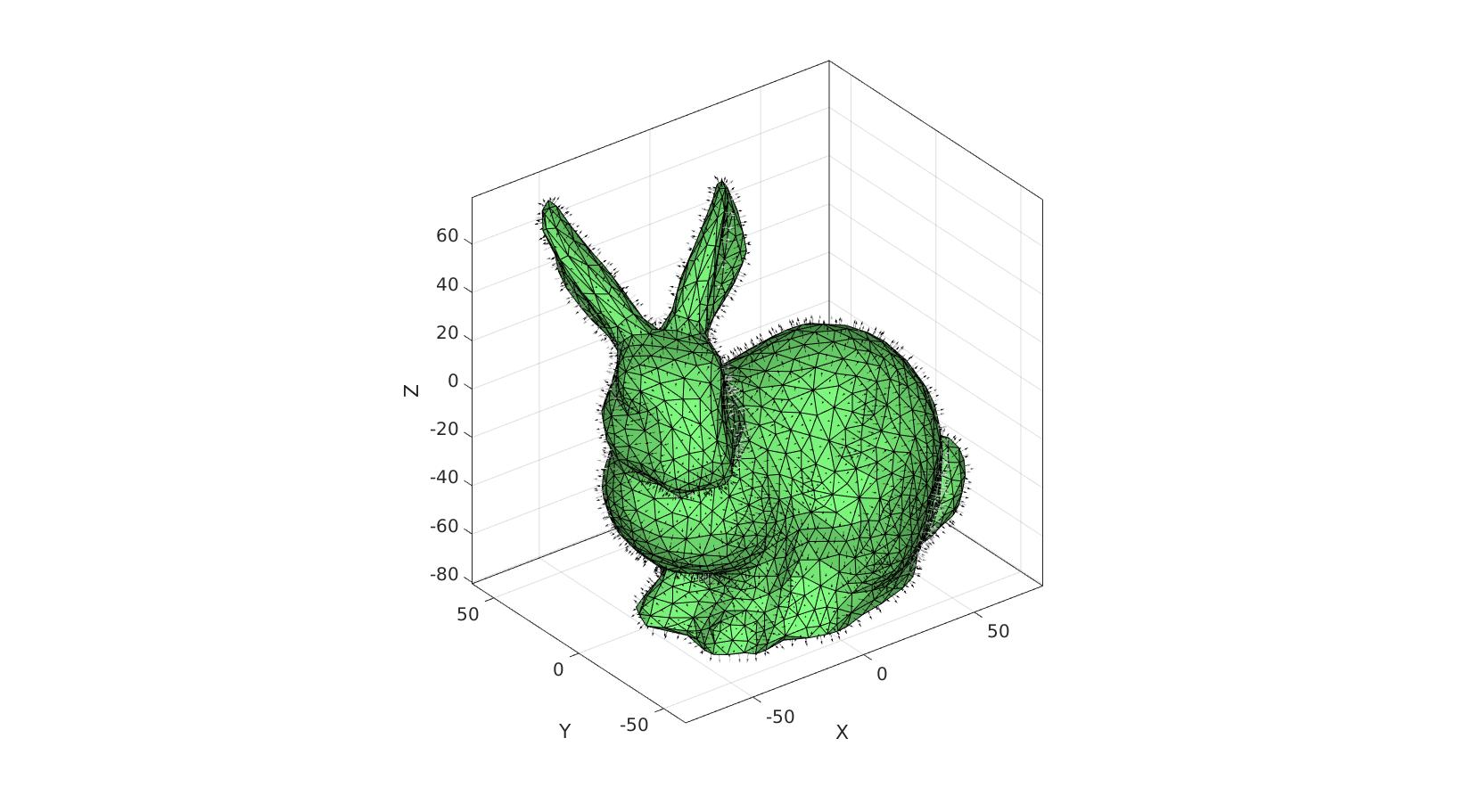

cFigure;
gpatch(F,V);
patchNormPlot(F,V);
axisGeom; camlight headlight;
drawnow;
