mJet

Below is a demonstration of the features of the mJet function

Syntax
Description
Examples
Example 1: Accessing the colormap
Example 2: Applying/using the colormap

clear; close all; clc;

Syntax

[cMap]=mJet; [cMap]=mJet(n);

Description

The mJet colormap

Examples

%Plot settings
fontSize=15;

Example 1: Accessing the colormap

cMap=mJet(250); %Get 25 color levels from the colormap

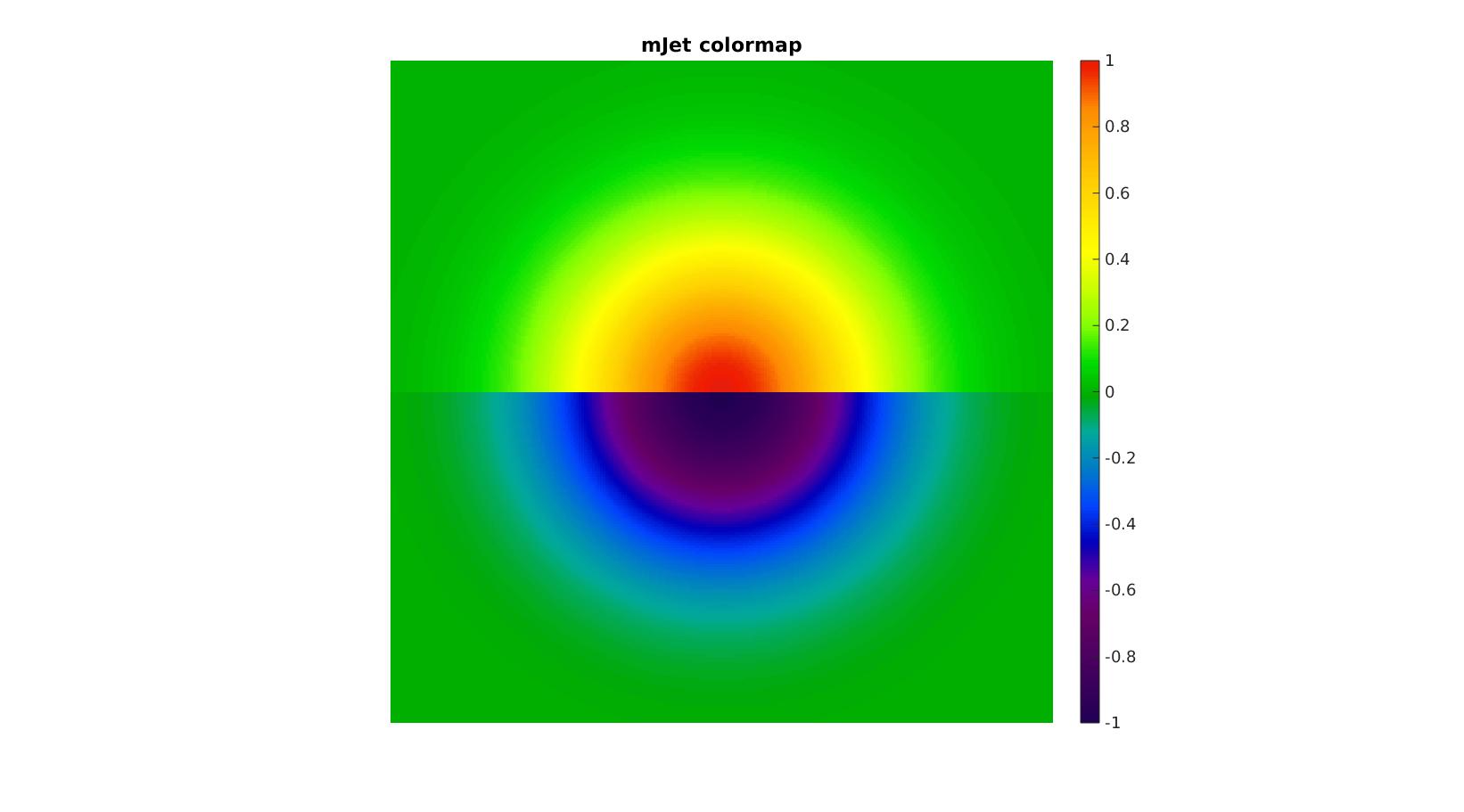

Example 2: Applying/using the colormap

% Create example data for visualizations
n=250;
s=1;
[X,Y]=ndgrid(linspace(-3*s,3*s,n));
Z=exp( -0.5.*((X./s).^2+(Y./s).^2));
Z=Z./max(Z(:));
Z(X<0)=-Z(X<0);
colorLim=[-1 1];

cFigure; hold on;
title('mJet colormap','FontSize',fontSize);
imagesc(Z);
colormap(cMap); colorbar;
axis tight; axis equal; axis xy; box on;
axis off;
set(gca,'FontSize',fontSize);
clim(colorLim);
drawnow;
