patchCleanUnused

Below is a demonstration of the features of the patchCleanUnused function

Contents

Syntax

[Fc,Vc,indFix2,logicValid,indUni]=patchCleanUnused(F,V);

Description

Removes unused vertices from patch data

Examples

clear; close all; clc;

Plot settings

fontSize=15;
plotColor1=0.25.*ones(1,3);
plotColor2=0.75.*ones(1,3);
edgeWidth=2;
markerSize=30;

Example 1: Removing unused nodes from patch data

Creating example patch data with unused nodes. This example is a sphere triangulation. The sphere is roughly cut in half by deleting half of its triangles. However, after the cut operation the nodes which used to be used by the deleted half are still present in the vertex array.

Defining geodesic dome triangulation

r=1; %sphere radius
n=2; %Refinements
[F,V]=geoSphere(n,r); %The sphere triangulation

Cropping away a selection of faces

logicKeepVertices=V(:,1)>0; %Logic on vertices
logicKeepFaces=any(logicKeepVertices(F),2); %Logic on faces
F=F(logicKeepFaces,:); %The cropped face list

Removing unused nodes using patchCleanUnused

[Fc,Vc]=patchCleanUnused(F,V);

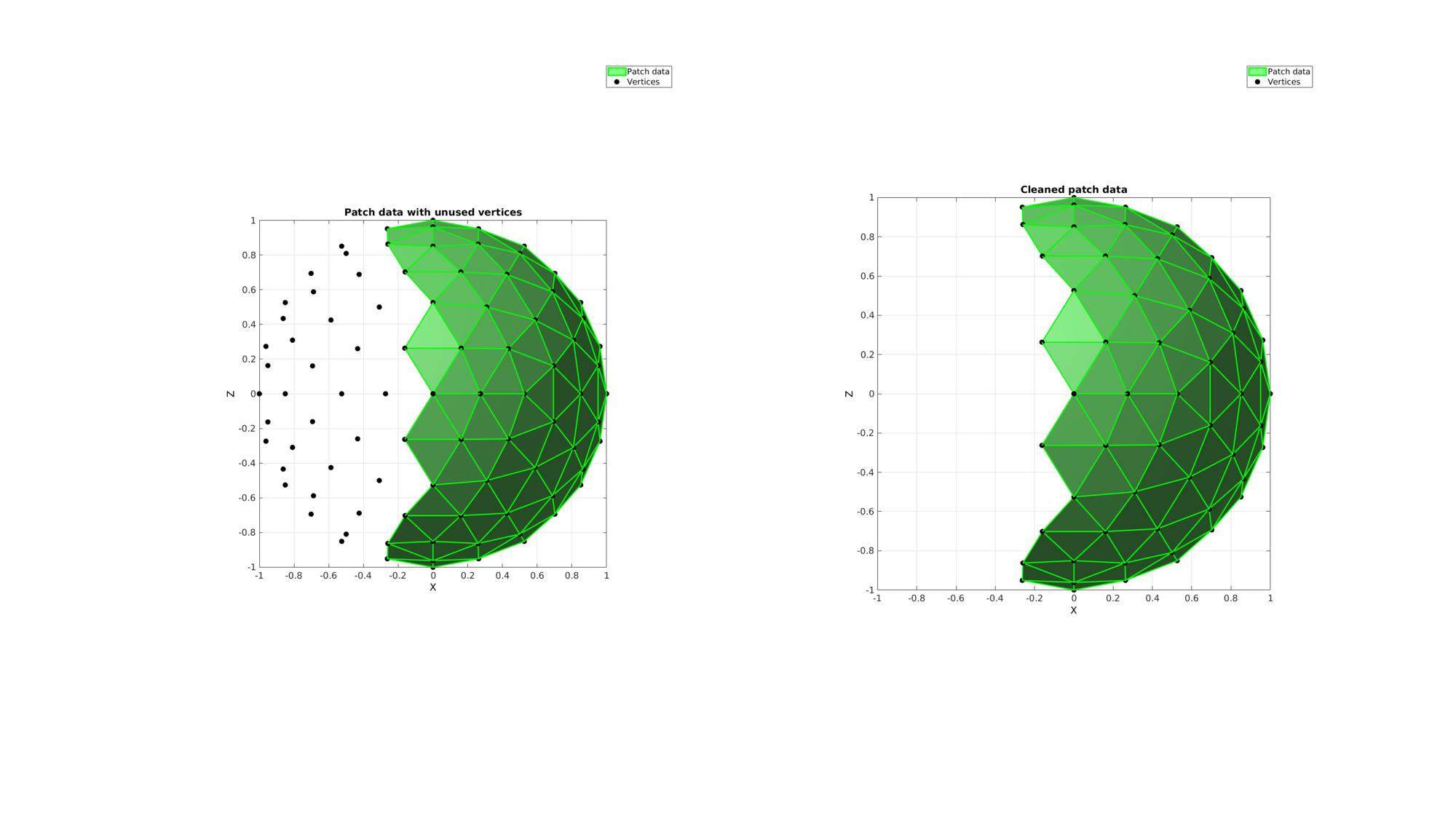

Visualize results

cFigure;
subplot(1,2,1); hold on;
title('Patch data with unused vertices');
hp(1)=gpatch(F,V,'gw','g',1,edgeWidth);
hp(2)=plotV(V,'k.','MarkerSize',markerSize);
legend(hp,{'Patch data','Vertices'});
axisGeom(gca,fontSize);
camlight headlight;
view(0,0); ha=axis;

subplot(1,2,2); hold on;
title('Cleaned patch data');
hp(1)=gpatch(Fc,Vc,'gw','g',1,edgeWidth);
hp(2)=plotV(Vc,'k.','MarkerSize',markerSize);
legend(hp,{'Patch data','Vertices'});
axisGeom(gca,fontSize);
camlight headlight;
view(0,0); axis(ha);

drawnow;

Example 2: Fixing indices associated with the patch data after unused vertex removal

Gather additional output to fix indices referring to the old mesh. The output indFix provides a mapping of the old indices to the new indices. Zeros are returned for points which are no longer a member of the mesh.

ind=find(V(:,3)>0);
[Fc,Vc,indFix]=patchCleanUnused(F,V); %Clean-up /remove unused vertices
ind_c=indFix(ind); %Fix the index set ind to be valid for the cleaned mesh
ind_c=ind_c(ind_c>0); %remove zeros

cFigure;
subplot(1,2,1); hold on;
title('Patch data with unused vertices');
hp(1)=gpatch(F,V,'gw','g',1,edgeWidth);
hp(2)=plotV(V,'k.','MarkerSize',markerSize);
hp(3)=plotV(V(ind,:),'r.','MarkerSize',markerSize*2);
legend(hp,{'Patch data','Vertices','Indexed points'});
axisGeom(gca,fontSize);
camlight headlight;
view(0,0); ha=axis;

subplot(1,2,2); hold on;
title('Cleaned patch data');
hp(1)=gpatch(Fc,Vc,'gw','g',1,edgeWidth);
hp(2)=plotV(Vc,'k.','MarkerSize',markerSize);
hp(3)=plotV(Vc(ind_c,:),'r.','MarkerSize',markerSize*2);
legend(hp,{'Patch data','Vertices','Indexed points'});
axisGeom(gca,fontSize);
camlight headlight;
view(0,0); axis(ha);

drawnow;

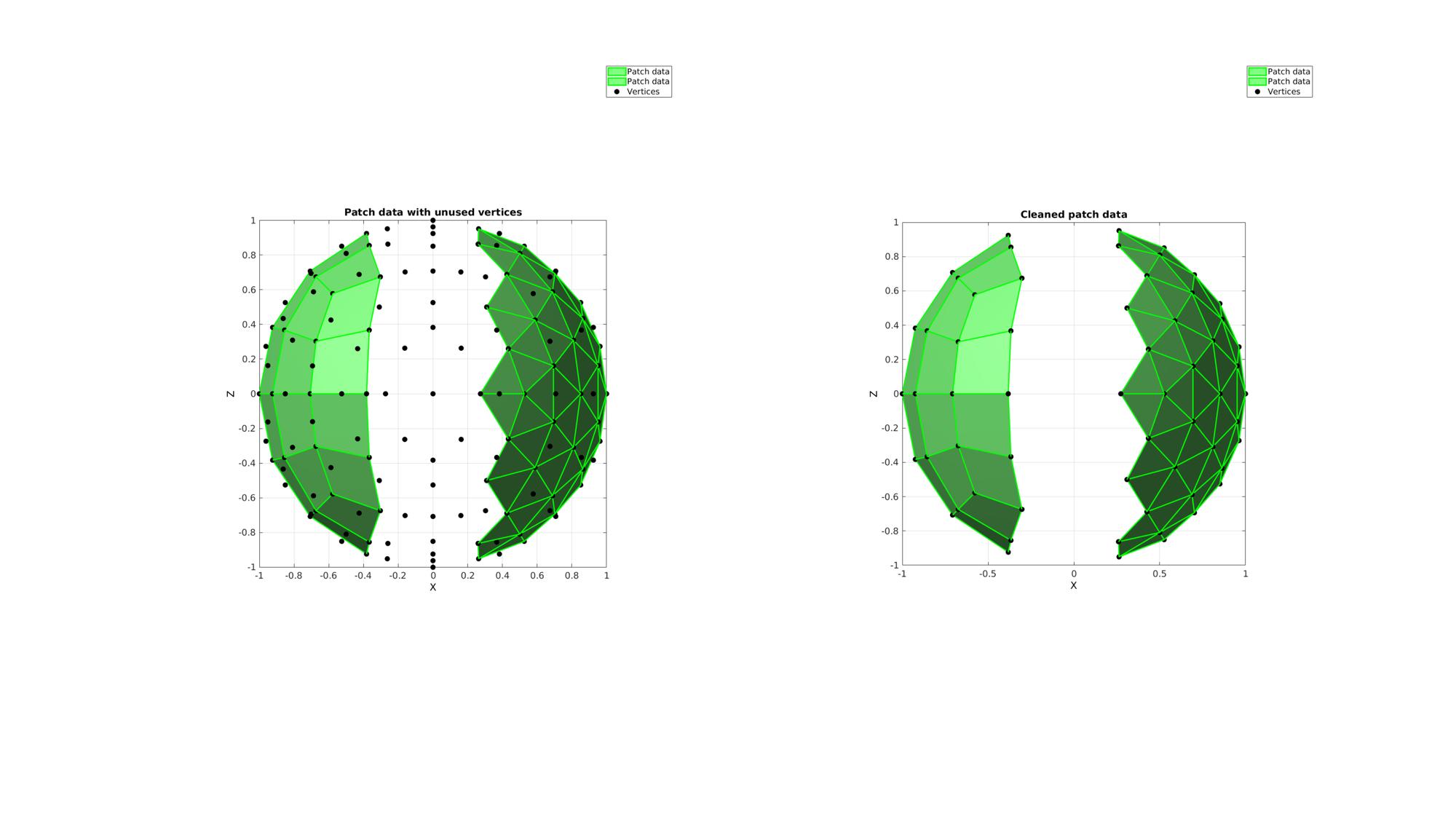

Example 3: Removing unused points from a mixed mesh

Creating a

% Defining geodesic dome triangulation
r=1; %sphere radius
n=2; %Refinements
[F1,V1]=geoSphere(n,r); %The sphere triangulation

% Cropping away a selection of faces
logicKeepVertices=V1(:,1)>0.2; %Logic on vertices
logicKeepFaces=all(logicKeepVertices(F1),2); %Logic on faces
F1=F1(logicKeepFaces,:); %The cropped face list

% Defining quadrangles on a sphere
r=1; %sphere radius
n=2; %Refinements
[F2,V2]=quadSphere(n,r); %The sphere triangulation

% Cropping away a selection of faces
logicKeepVertices=V2(:,1)<-0.2; %Logic on vertices
logicKeepFaces=all(logicKeepVertices(F2),2); %Logic on faces
F2=F2(logicKeepFaces,:); %The cropped face list

F={F1,F2+size(V1,1)};
V=[V1;V2];

Removing unused nodes using patchCleanUnused

[Fc,Vc]=patchCleanUnused(F,V);

hp=gobjects(1,3);

cFigure;
subplot(1,2,1); hold on;
title('Patch data with unused vertices');
hp(1:2)=gpatch(F,V,'gw','g',1,edgeWidth);
hp(3)=plotV(V,'k.','MarkerSize',markerSize);
legend(hp,{'Patch data','Patch data','Vertices'});
axisGeom(gca,fontSize);
camlight headlight;
view(0,0); ha=axis;

subplot(1,2,2); hold on;
title('Cleaned patch data');
hp(1:2)=gpatch(Fc,Vc,'gw','g',1,edgeWidth);
hp(3)=plotV(Vc,'k.','MarkerSize',markerSize);
legend(hp,{'Patch data','Patch data','Vertices'});
axisGeom(gca,fontSize);
camlight headlight;
view(0,0); axis(ha);

drawnow;
