patchCurvature

Below is a demonstration of the features of the patchCurvature function

Syntax
Description
Examples
Compute curvature
Visualize curvature on mesh

Syntax

[Vd,Fd,Fds]=patchCurvature(V,F);

Description

Computes curvature metrics for the patch data defined by the faces F and the vertices V.

Examples

clear; close all; clc;

Plot settings

cMap=warmcold(250);

% [F,V]=geoSphere(4,5.25);

optionStruct.cylRadius=2.3;
optionStruct.numRadial=50;
optionStruct.cylHeight=2*optionStruct.cylRadius;
optionStruct.numHeight=17;
optionStruct.meshType='tri';
optionStruct.closeOpt=0;
[F,V] = patchcylinder(optionStruct);
Q = euler2DCM(rand(1,3)*pi);
V = V*Q;
% [F,V]=graphicsModels(9);
% [F,V]=stanford_bunny;
% [F,V]=tri2quad(F,V);
% [F,V]=patchcylinder(60,100,60,60,'tri');

[~,~,N]=patchNormal(F,V);
[a,d]=vectorOrthogonalPair(N);

nz=[0 0 1];

Compute curvature

[U1,U2,K1,K2,H,G] = patchCurvaturePolynomial(F,V,2);

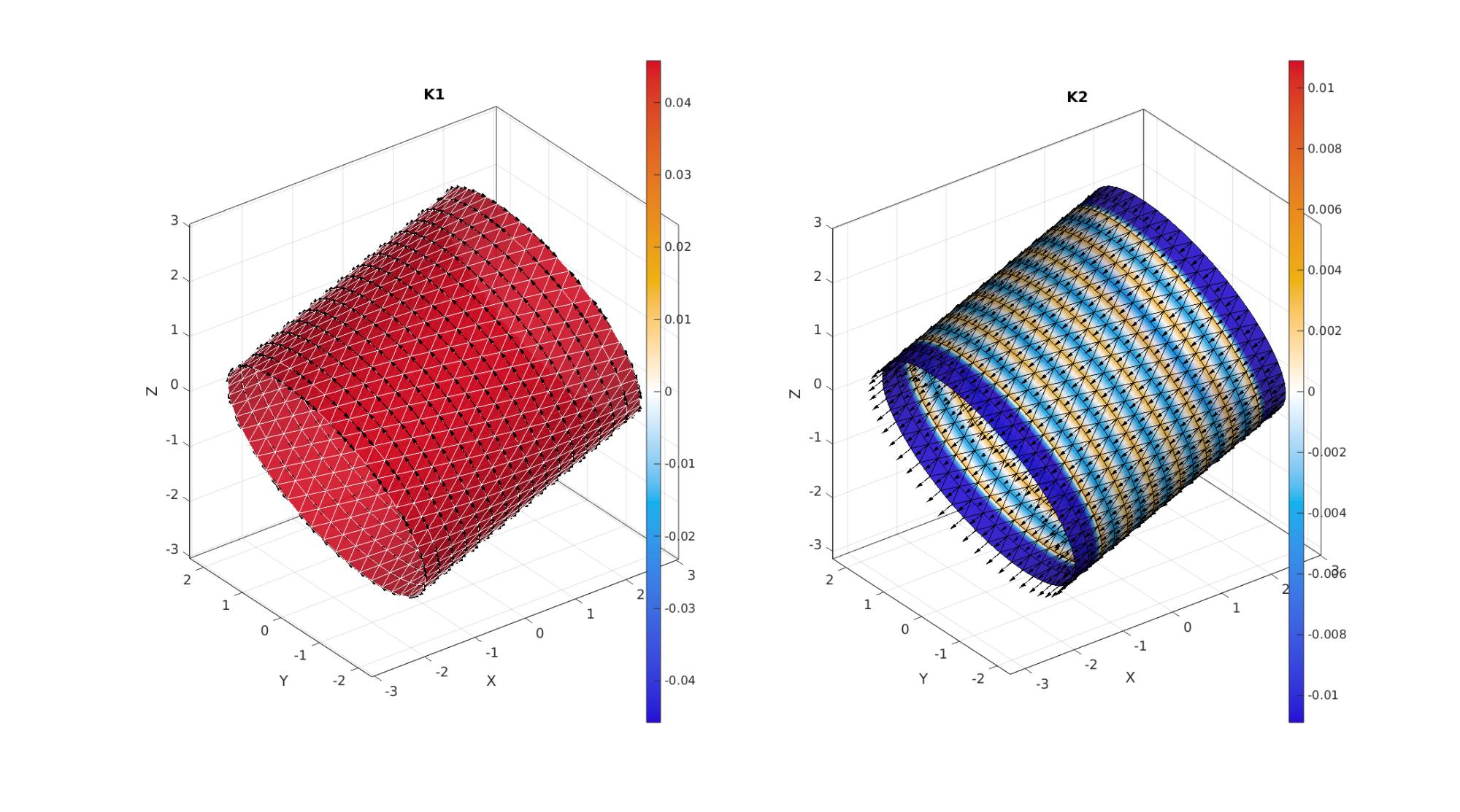

Visualize curvature on mesh

% Compute plot variables
vecPlotSize=mean(patchEdgeLengths(F,V)); %Vector plotting size

% Visualize
cFigure;
subplot(1,2,1); hold on;
title('K1');
hp=gpatch(F,V,K1,'w',0.9);
hp.FaceColor='interp';
colormap(gca,cMap); colorbar;
quiverVec(V,U1,vecPlotSize,'k');

% quiverVec(V,N,vecPlotSize,'r');
% quiverVec(V,a,vecPlotSize,'g');
% quiverVec(V,d,vecPlotSize,'b');

% for i=1:1:size(V,1)
%     n=N(i,:);
%     Q = vecPair2Rot(n,nz)';
%     quiverVec(V(i,:),Q(:,1)',vecPlotSize,'r');
%     quiverVec(V(i,:),Q(:,2)',vecPlotSize,'g');
%     quiverVec(V(i,:),Q(:,3)',vecPlotSize,'b');
% end

axisGeom;
c=max(abs(K1(:)));
caxis(0.1*[-c c]);
camlight headlight;

subplot(1,2,2); hold on;
title('K2');
hp=gpatch(F,V,K2,'k',0.9);
hp.FaceColor='interp';
quiverVec(V,U2,vecPlotSize,'k');
colormap(gca,cMap); colorbar;
axisGeom;
c=max(abs(K2(:)));
caxis(0.1*[-c c]);
camlight headlight;

gdrawnow;
