patchNormal

Below is a demonstration of the features of the patchNormal function

Contents

clear; close all; clc;

Syntax

[N,Vn,Nv]=patchNormal(F,V);

Description

Compute the surface normals N for the input path data defined by the faces F and vertices V. Optional additional outputs include the face centres Vn or the vertex normals Nv.

Examples

testCase=2;
switch testCase
    case 1 %Single element square 1x1
        z=2;
        V=[0 0 0; 1 0 0; 0 1 z; 1 1 0];
        F=[1 2 4 3];
    case 2 %Sphere triangles
        r=1;
        n=2;
        [F,V]=geoSphere(n,r);
end

[N,P,NV]=patchNormal(F,V);

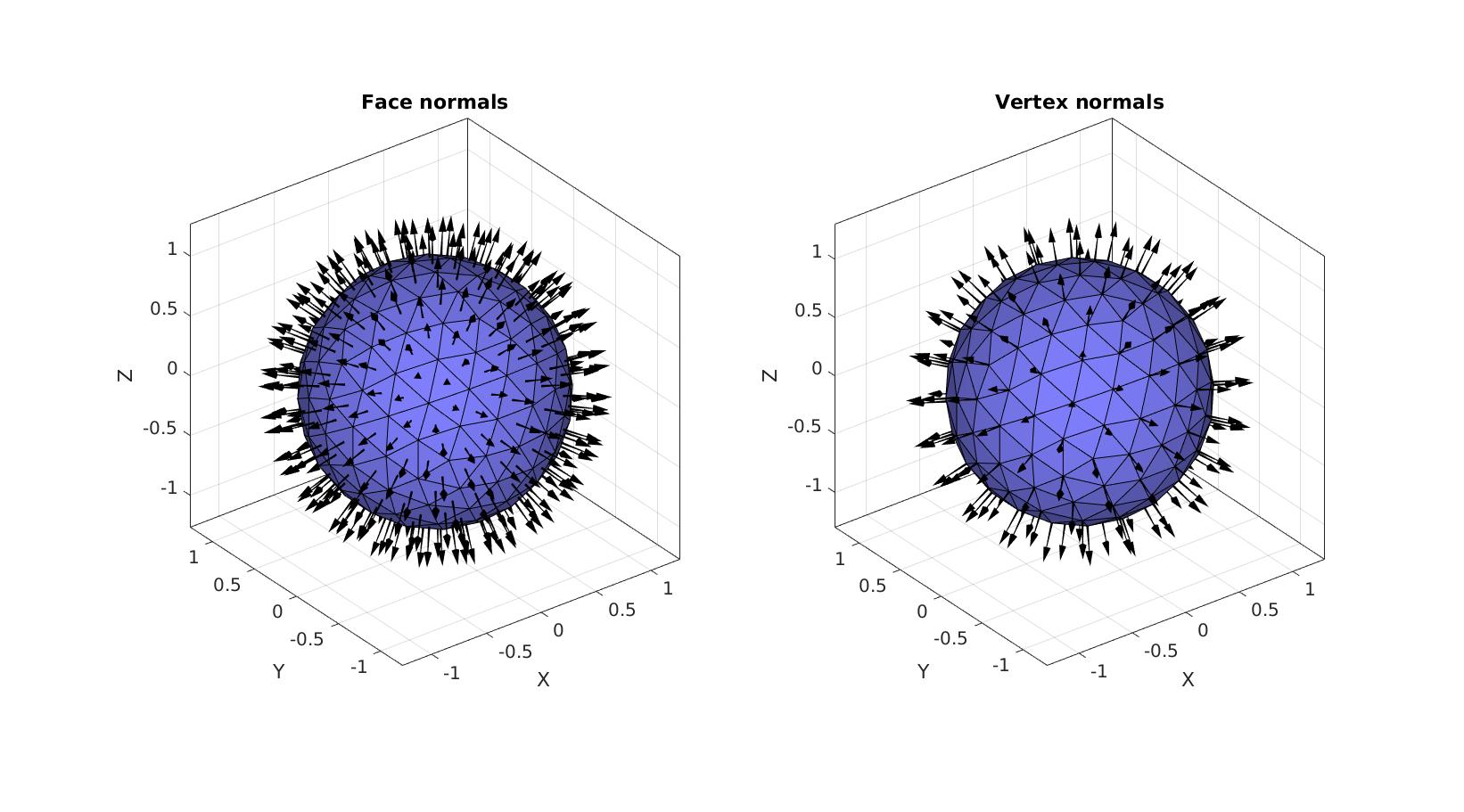

Visualization

s=mean(patchEdgeLengths(F,V));

cFigure;
subplot(1,2,1);
title('Face normals')
gpatch(F,V,'bw');
quiverVec(P,N,s,'k')
axisGeom; camlight headlight;

subplot(1,2,2);
title('Vertex normals')
gpatch(F,V,'bw');
quiverVec(V,NV,s,'k')
axisGeom; camlight headlight;

drawnow;
