quadPlate

Below is a demonstration of the features of the quadPlate function

Contents

clear; close all; clc;

Syntax

[F,V]=quadPlate(plateDim,plateEl)

Description

This function generates a quadrilateral mesh for a rectangular place

Examples

Plot settings

fontSize=20;

Example: Creating a meshed plate

%Define input parameters
plateDim = [2 2]; %Plate dimensions in X and Y direction
plateEl  = [6 7]; %Number of elements in X and Y direction

%Use |quadPlate| to create a quadrilateral mesh
[F,V]=quadPlate(plateDim,plateEl);

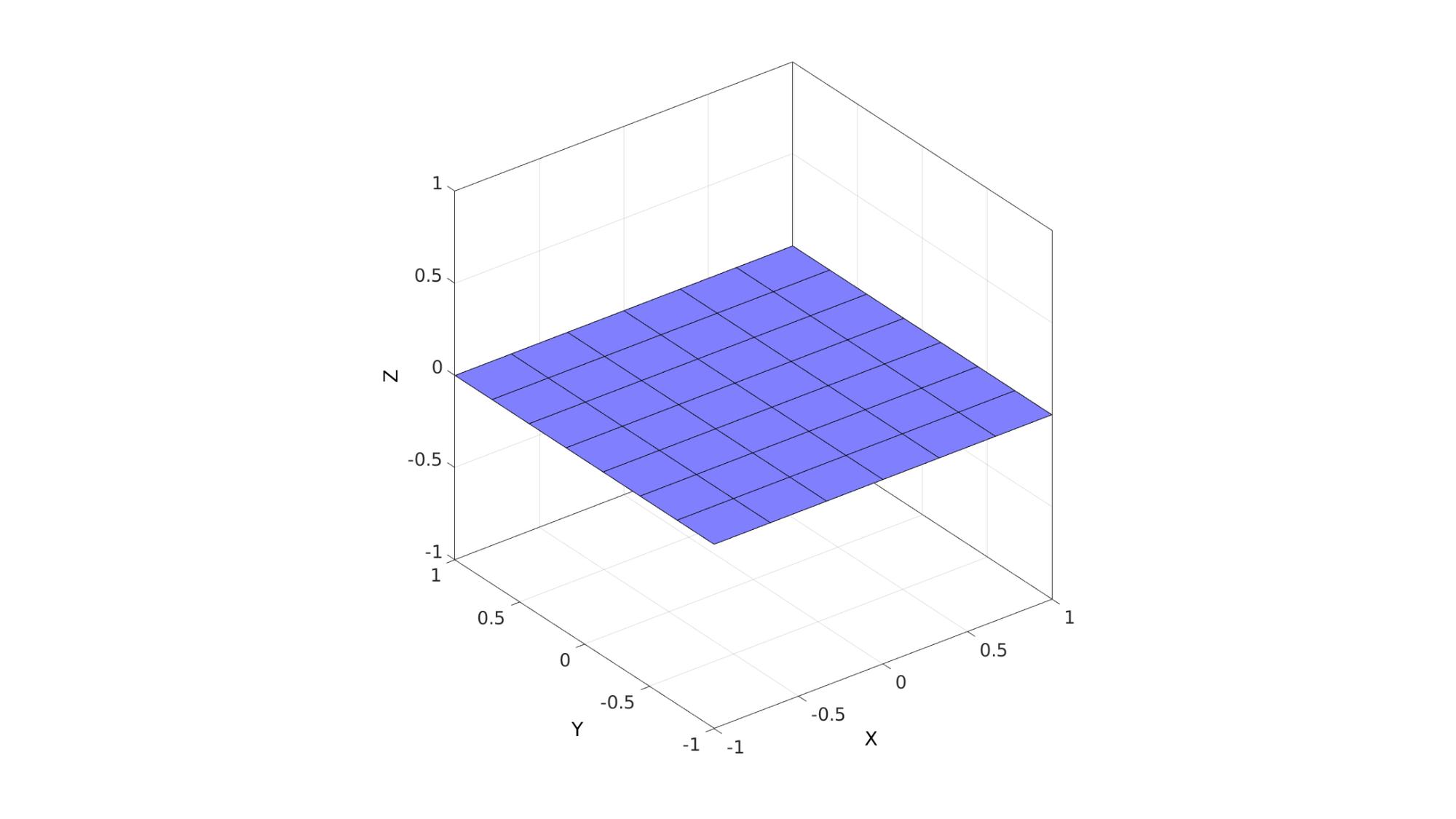

Plotting model

cFigure; hold on;
gpatch(F,V,'bw','k');
% patchNormPlot(F,V);
axisGeom(gca,fontSize);
drawnow;
