quadThick

Below is a demonstration of the features of the quadThick function

Contents

Syntax

[E,VE,Fq1,Fq2]=quadThick(F,V,dirSet,layerThickness,numSteps);

Description

Use quadThick to thicken a quadrilateral mesh to create hexahedral elements.

clear; close all; clc;

Examples

PLOT SETTINGS

fontSize=20;

Example: Using quadThick to create a hexahedral mesh

% Creating an example polygon
ns=15;
t=linspace(0,pi,ns);
x=cos(t);
y=sin(t);
z=zeros(size(x));
Vc=flipud([x(:) y(:) z(:)]);

%Extruding polygon to a quadrilateral surface
cPar.depth=2;
cPar.patchType='quad';
cPar.dir=0;
cPar.closeLoopOpt=0;
cPar.numSteps=8;
[F,V]=polyExtrude(Vc,cPar);

Thickening quadrilaterial surface to hexahedral elements

layerThickness=0.5;
numSteps=3;
[E,VE]=quadThick(F,V,1,layerThickness,numSteps);

%Use element2patch to get patch data
FE=element2patch(E);

Visualize mesh

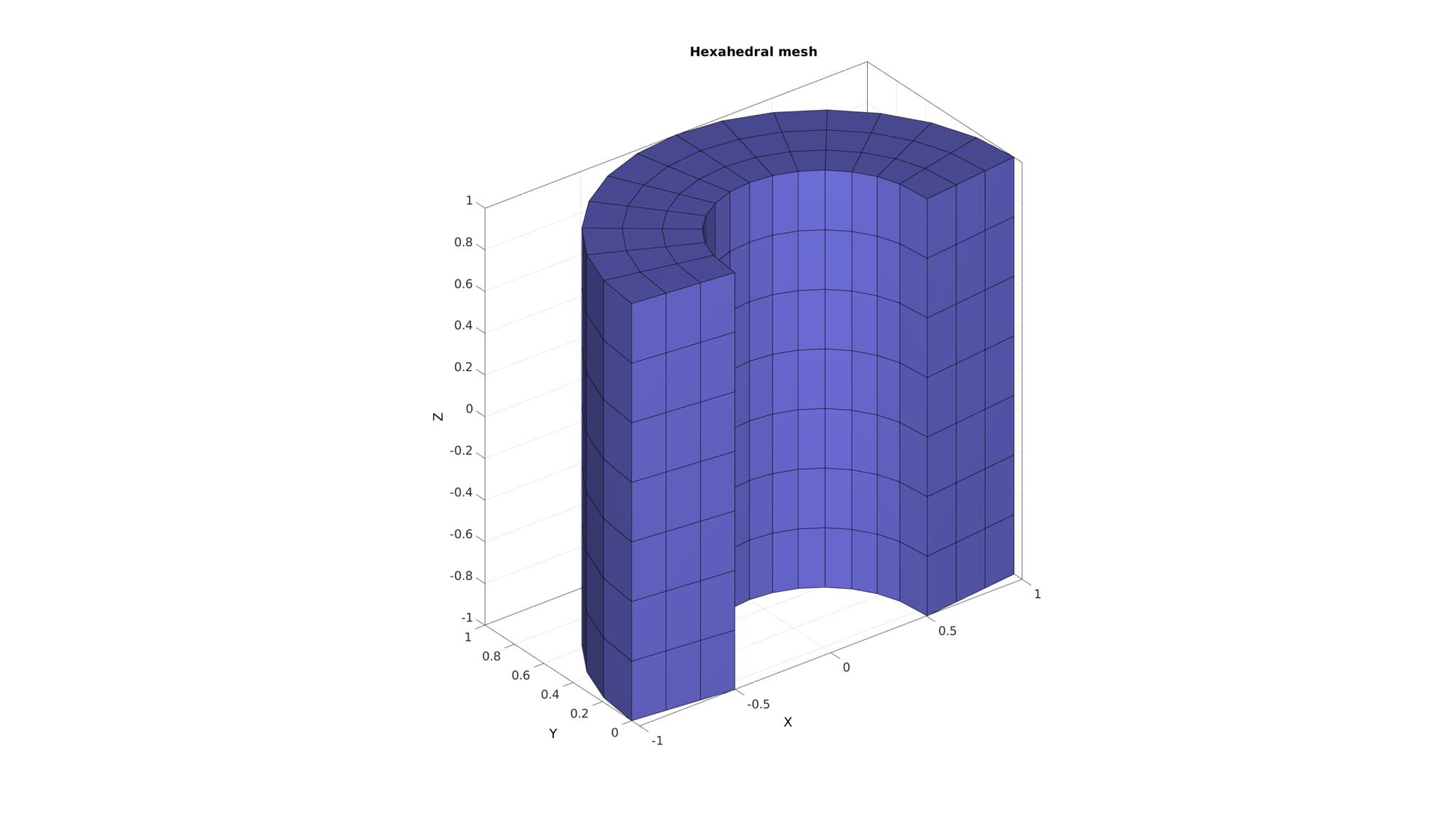

cFigure; hold on;
title('Hexahedral mesh');
gpatch(FE,VE,'bw','k',1);
axisGeom;
camlight headlight;
drawnow;

Create test data set

[F,V]=quadSphere(3,1);

Thickening quadrilaterial surface to hexahedral elements

layerThickness=0.4;
numSteps=3;
[E,VE,Fq1,Fq2]=quadThick(F,V,-1,layerThickness,numSteps);

%Use element2patch to get patch data
FE=element2patch(E);

Visualize mesh

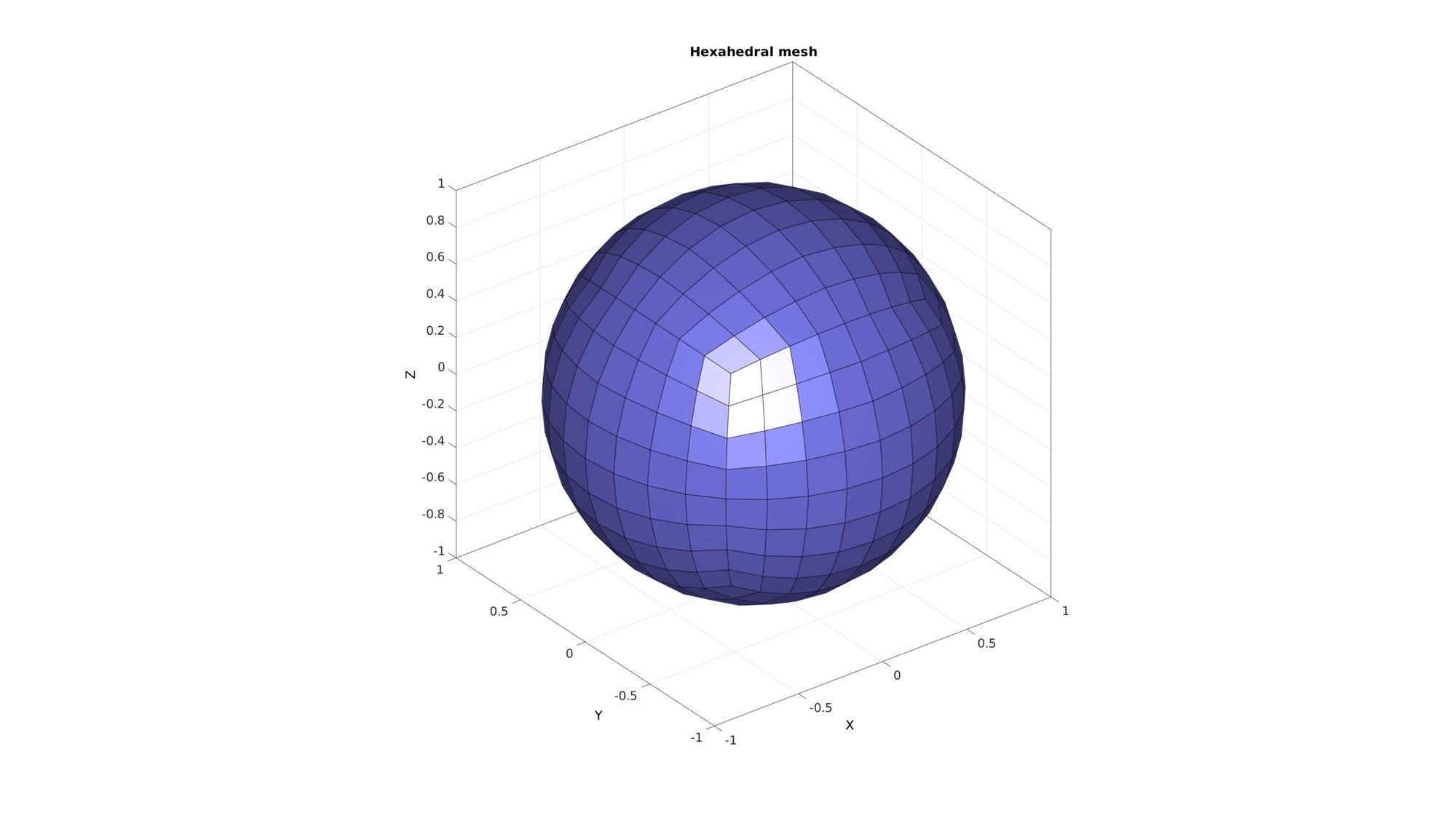

cFigure; hold on;
title('Hexahedral mesh');
gpatch(FE,VE,'bw','k',1);
axisGeom;
camlight headlight;
drawnow;

meshStruct.nodes=VE;
meshStruct.faces=FE;
meshStruct.elements=E;

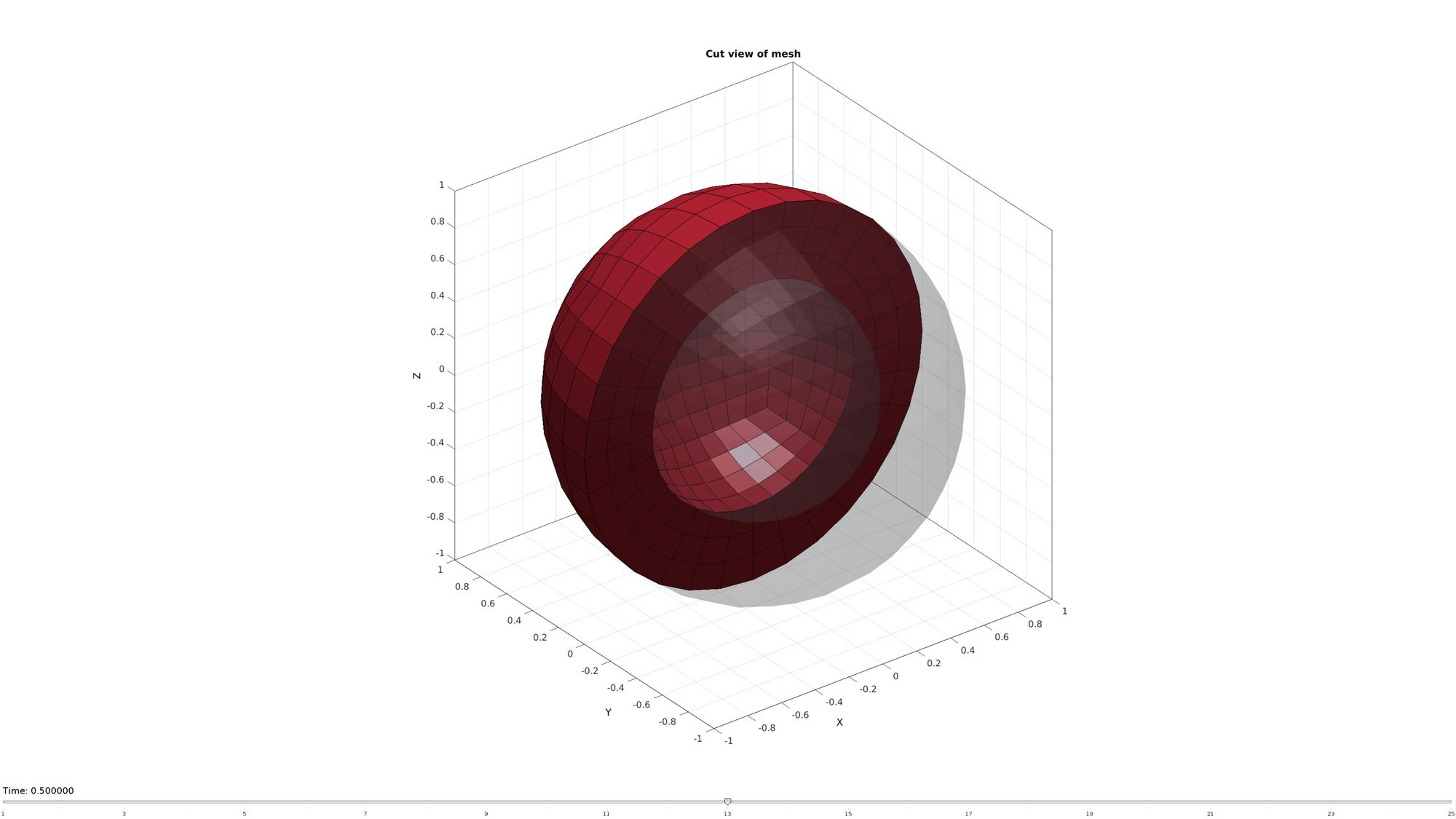

meshView(meshStruct);
