reactionDiffusionMesh

Below is a demonstration of the features of the reactionDiffusionMesh function

Contents

clear; close all; clc;

Syntax

[A,B]=reactionDiffusionMesh(F,V,controlPar);

Description

Examples

Example: Reaction diffusion on gridded mesh

Get surface data

n=75;
[X,Y]=ndgrid(linspace(-1,1,n));
Z=zeros(size(X));
[F,V]=surf2patch(X,Y,Z);

Set initial values

L=heaviside(V(:,1))>0 & heaviside(V(:,2))>0;

A=double(~L); %Initial A values
B=double(L); %Initial B values

Create control parameter structure

patternType=2;

% Kill rates
switch patternType
    case 1 %Coral
        controlPar.f=0.055;
        controlPar.k=0.062;
    case 2 %Spots
        controlPar.f=0.0367;
        controlPar.k=0.0649;
end

% Initial valus
controlPar.A=A;
controlPar.B=B;

% Diffusion rates
controlPar.da=1;
controlPar.db=0.5;

% Time stepping parameters
controlPar.timeTotal = 10000; %Final time
controlPar.dt=0.5; %Time step size

%
controlPar.waitbar=1;
controlPar.numSaveSteps=50;

Compute reaction diffusion process

[~,B]=reactionDiffusionMesh(F,V,controlPar);

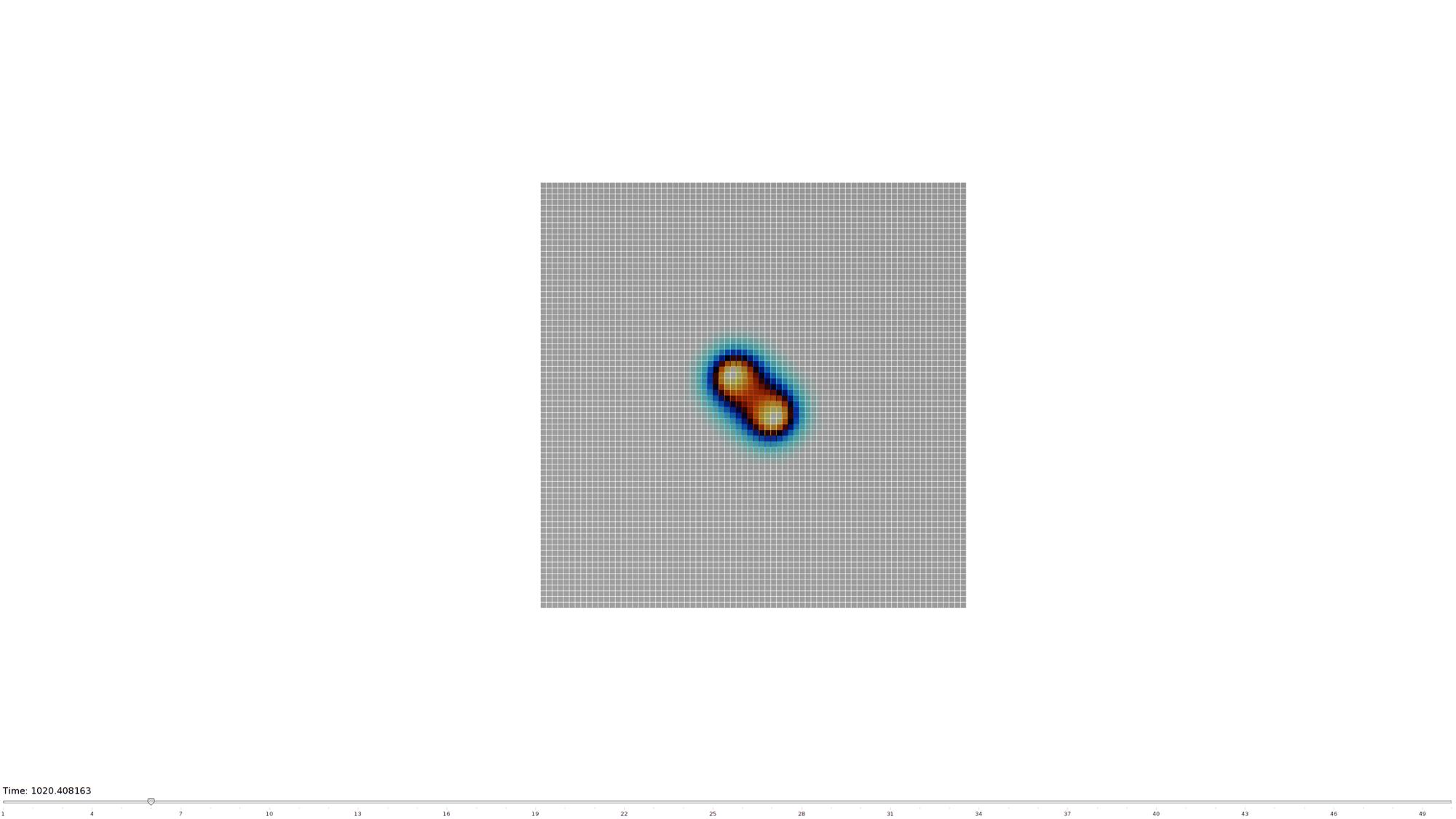

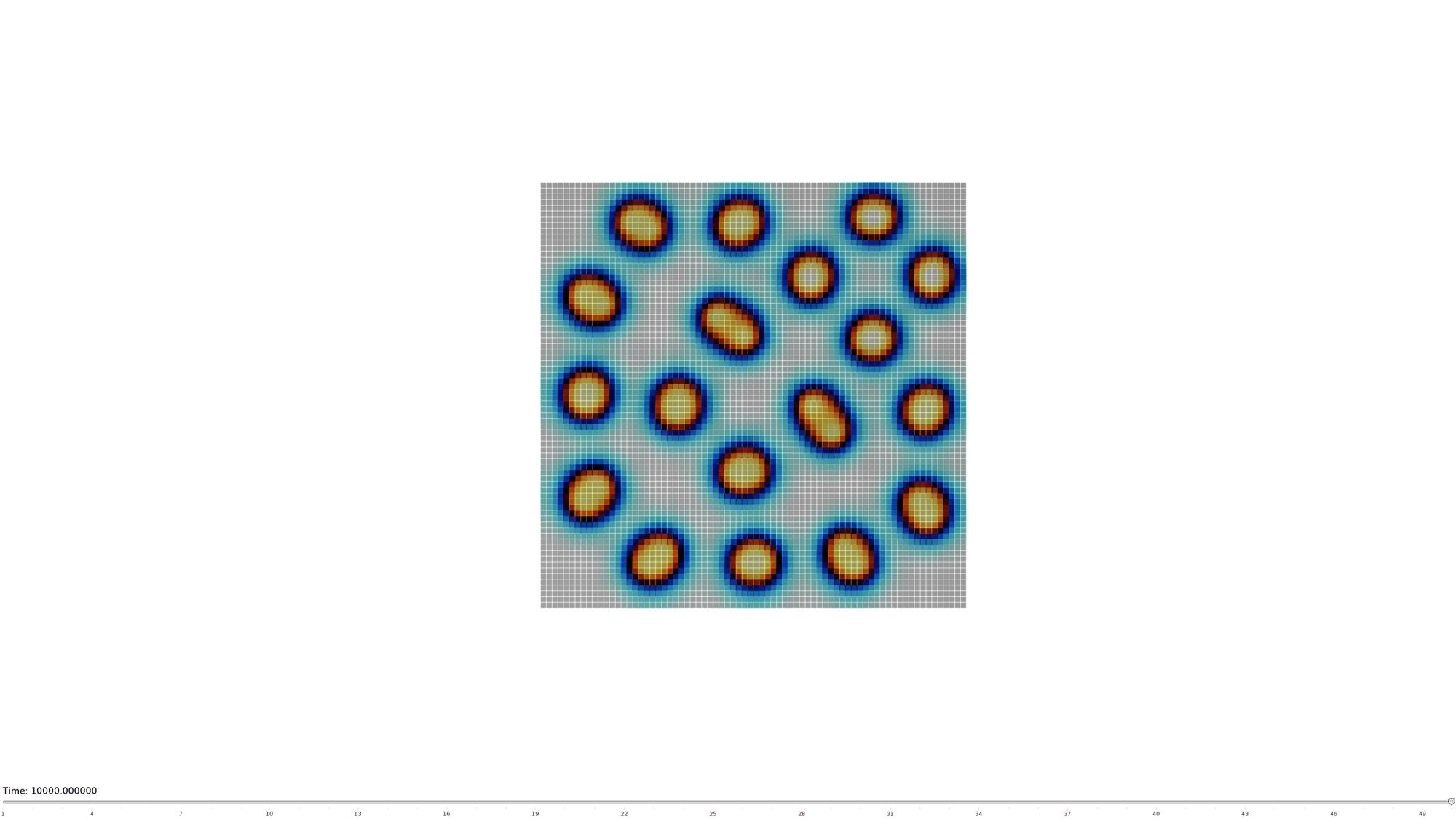

Create animated view of results

hf1=cFigure;
hp=gpatch(F,V,B(:,end),B(:,end));
% shading interp;
axisGeom;
camlight headlight;
colormap(fireice); %colorbar;
axis off; view(2);
drawnow;

%Create the time vector
animStruct.Time=linspace(0,controlPar.timeTotal,controlPar.numSaveSteps);

for q=1:1:controlPar.numSaveSteps
    %Set entries in animation structure
    animStruct.Handles{q}=[hp]; %Handles of objects to animate
    animStruct.Props{q}={'CData'}; %Properties of objects to animate
    animStruct.Set{q}={B(:,q)}; %Property values for to set in order to animate
end
anim8(hf1,animStruct);

Example: Reaction diffusion on a closed surface mesh

Get surface data

[F,V]=stanford_bunny; %Bunny mesh
[F,V]=subtri(F,V,1); %Refined version

Set initial values

X=V(:,1); Y=V(:,2); Z=V(:,3);
[zMax,indMax]=max(Z(:));
r=sqrt((X-X(indMax)).^2+(Y-Y(indMax)).^2);
L=r<0.1*max(r(:)) & Z>0.9.*max(Z(indMax));

A=double(~L); %Initial A values
B=double(L); %Initial B values

Create control parameter structure

patternType=1;

% Kill rates
switch patternType
    case 1 %Coral
        controlPar.f=0.055;
        controlPar.k=0.062;
    case 2 %Spots
        controlPar.f=0.0367;
        controlPar.k=0.0649;
end

% Initial valus
controlPar.A=A;
controlPar.B=B;

% Diffusion rates
controlPar.da=1;
controlPar.db=0.5;

% Time stepping parameters
controlPar.timeTotal = 8000; %Final time
controlPar.dt=0.5; %Time step size

%
controlPar.waitbar=1;
controlPar.numSaveSteps=50;

Compute reaction diffusion process

[A,B]=reactionDiffusionMesh(F,V,controlPar);

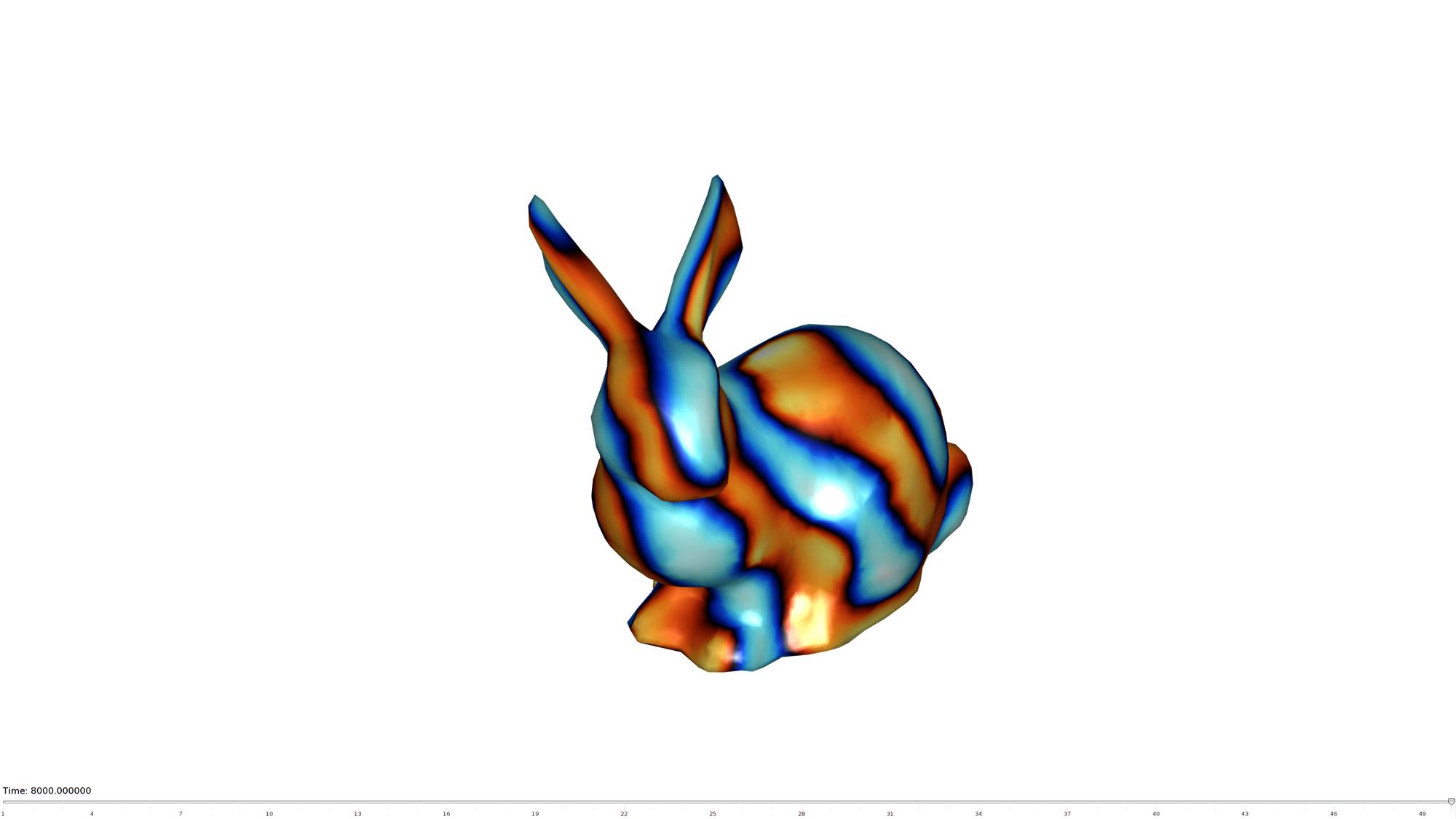

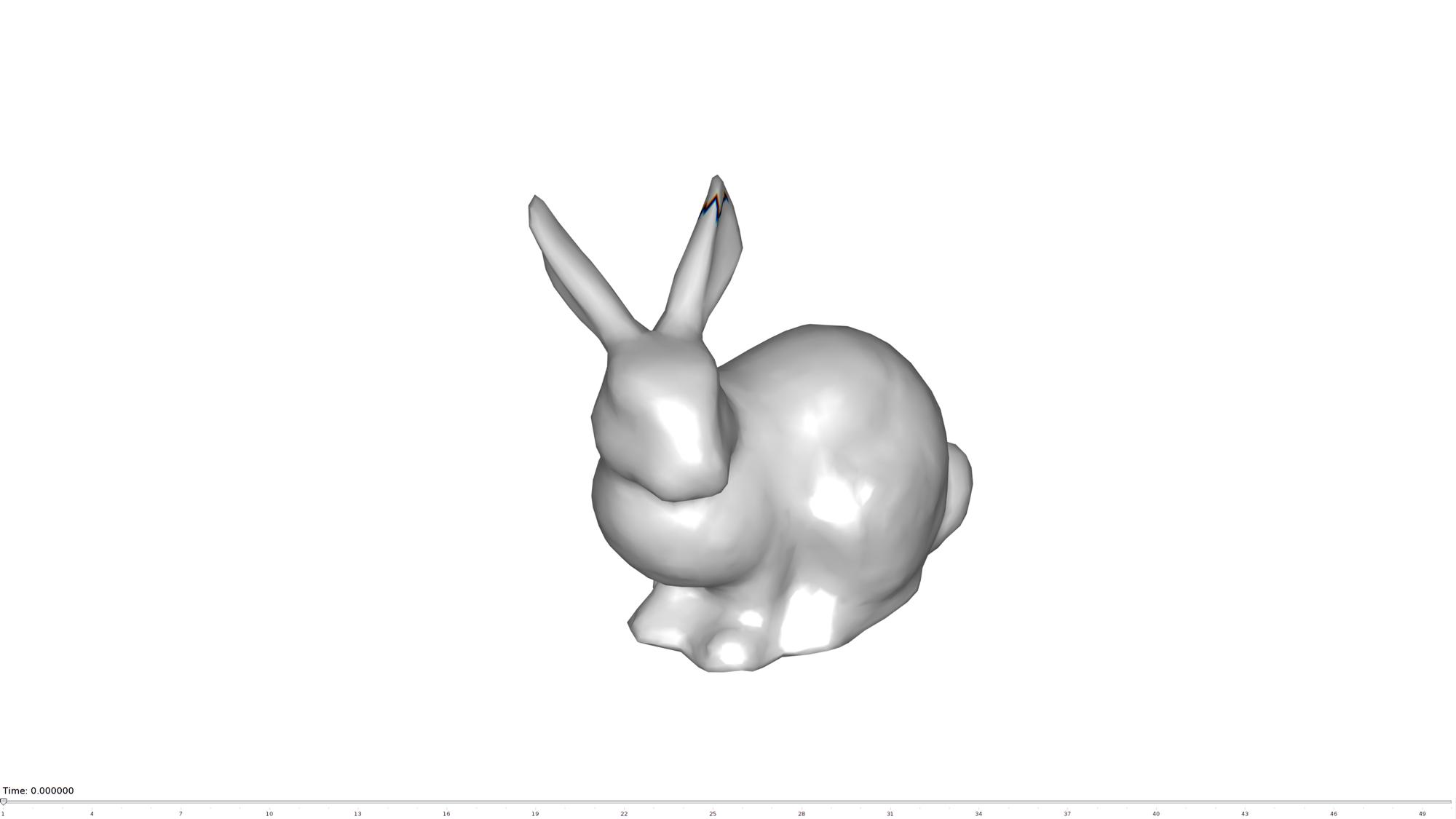

Create animated view of results

hf2=cFigure;
hp=gpatch(F,V,B(:,end),'none');
shading interp;
axisGeom;
camlight headlight; lighting gouraud;
colormap(fireice); %colorbar;
axis off;
drawnow;

%Create the time vector
animStruct.Time=linspace(0,controlPar.timeTotal,controlPar.numSaveSteps);

for q=1:1:controlPar.numSaveSteps
    %Set entries in animation structure
    animStruct.Handles{q}=[hp]; %Handles of objects to animate
    animStruct.Props{q}={'CData'}; %Properties of objects to animate
    animStruct.Set{q}={B(:,q)}; %Property values for to set in order to animate
end
anim8(hf2,animStruct);

Example: Deforming mesh based on reaction diffusion pattern

r=1;
[F,V]=geoSphere(5,r);

Set initial values

L=V(:,3)>=0.98;

A=double(~L); %Initial A values
B=double(L); %Initial B values

Create control parameter structure

patternType=2;

% Kill rates
switch patternType
    case 1 %Coral
        controlPar.f=0.055;
        controlPar.k=0.062;
    case 2 %Spots
        controlPar.f=0.0367;
        controlPar.k=0.0649;
end

% Initial valus
controlPar.A=A;
controlPar.B=B;

% Diffusion rates
controlPar.da=1;
controlPar.db=0.5;

% Time stepping parameters
controlPar.timeTotal = 10000; %Final time
controlPar.dt=0.5; %Time step size

%
controlPar.waitbar=1;
controlPar.numSaveSteps=50;

Compute reaction diffusion process

[A,B]=reactionDiffusionMesh(F,V,controlPar);

Compute vertex normals

[~,~,N]=patchNormal(F,V); %Normal vectors for each node
heightOffset=mean(patchEdgeLengths(F,V))*20;

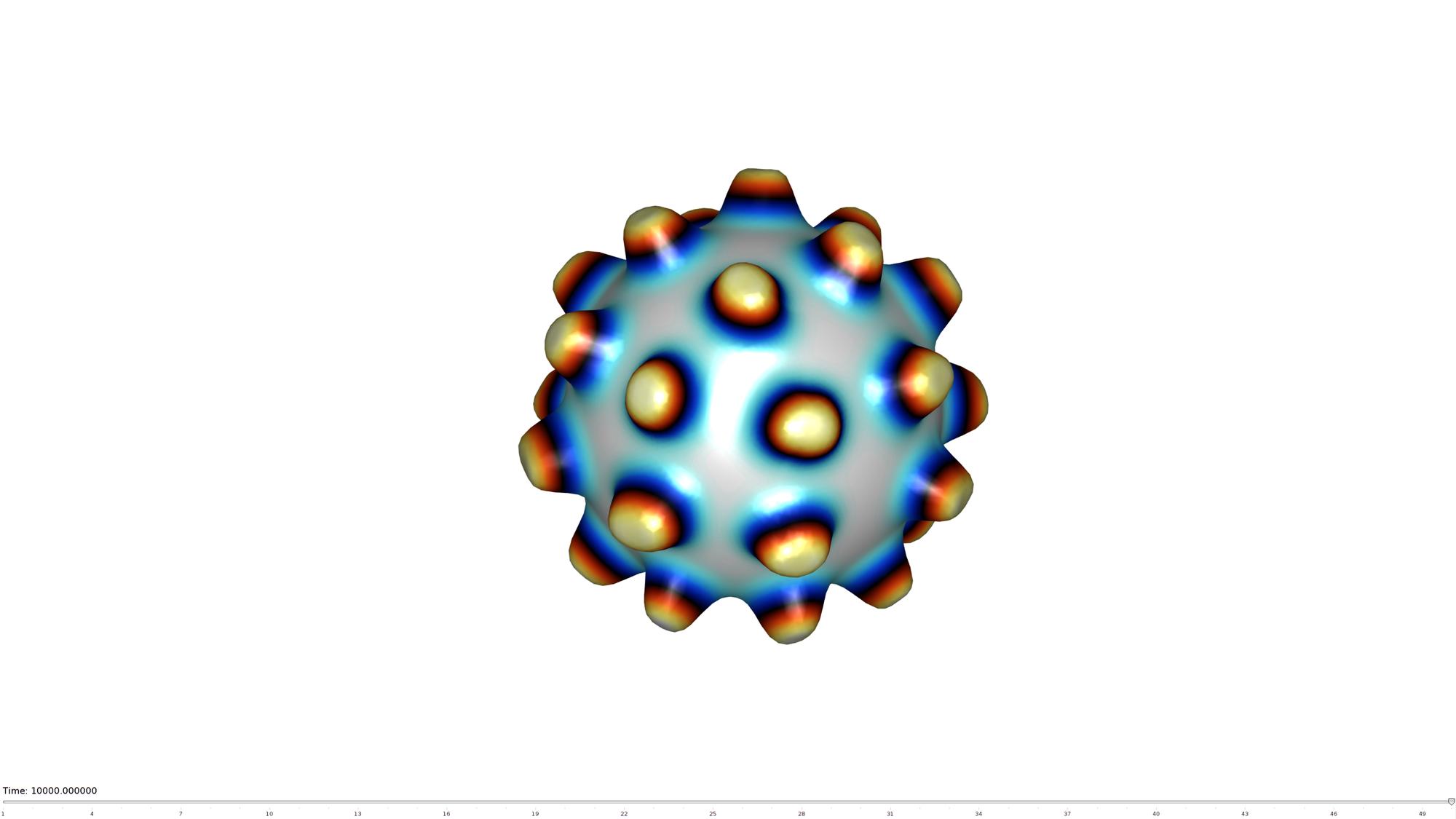

Create animated view of results

Vn=V+(B(:,size(B,2)*ones(1,3)).*N.*heightOffset); %Add offset to coordinates

hf2=cFigure;
hp=gpatch(F,Vn,B(:,end),'none');
hp.FaceColor='interp';
axisGeom;
camlight headlight; lighting gouraud;
colormap(fireice); %colorbar;
axis off;
drawnow;

%Create the time vector
animStruct.Time=linspace(0,controlPar.timeTotal,controlPar.numSaveSteps);

for q=1:1:controlPar.numSaveSteps

    Vn=V+(B(:,q*ones(1,3)).*N.*heightOffset);

    %Set entries in animation structure
    animStruct.Handles{q}=[hp,hp]; %Handles of objects to animate
    animStruct.Props{q}={'CData','Vertices'}; %Properties of objects to animate
    animStruct.Set{q}={B(:,q),Vn}; %Property values for to set in order to animate
end
anim8(hf2,animStruct);
