stochasticMicrostructure

Below is a demonstration of the features of the stochasticMicrostructure function

Contents

clear; close all; clc;

Syntax

[F,V,C]=stochasticMicrostructure(M,IND,ptype);

Description

This function generates Stochastic Bicontinuous Microstructures

Input structure and default values:

inputStruct.L=1; % characteristic length
inputStruct.Ns=80; % number of sampling points
inputStruct.Nw=120; % number of waves
inputStruct.q0=55; % wave number
inputStruct.relD=0.5; % relative density
inputStruct.anisotropyFactors=[1 1 1]; %Anisotropy factors
inputStruct.isocap=1; %Option to cap the isosurface

Based on: Soyarslan et al. "3D stochastic bicontinuous microstructures: Generation, topology and elasticity" https://doi.org/10.1016/j.actamat.2018.01.005

Original author: Sebastien Callens, September 2020

Examples

Plot settings

cMap=parula(250);
faceAlpha1=1;
faceAlpha2=0.5;
edgeColor1='none';
edgeColor2='none';
fontSize=15;

Example 1

inputStruct.L=1; % characteristic length
inputStruct.Ns=75; % number of sampling points
inputStruct.Nw=120; % number of waves
inputStruct.q0=55; % wave number
inputStruct.relD=0.55; % relative density
inputStruct.anisotropyFactors=[1 1 1]; %Anisotropy factors
inputStruct.isocap=1; %Option to cap the isosurface

Create stochastic structure

[F,V,C]=stochasticMicrostructure(inputStruct);

Using grouping to keep only largest group

groupOptStruct.outputType='label';
[G,~,groupSize]=tesgroup(F,groupOptStruct); %Group connected faces
[~,indKeep]=max(groupSize); %Index of largest group

%Keep only largest group
F=F(G==indKeep,:); %Trim faces
C=C(G==indKeep,:); %Trim color data
[F,V]=patchCleanUnused(F,V); %Remove unused nodes

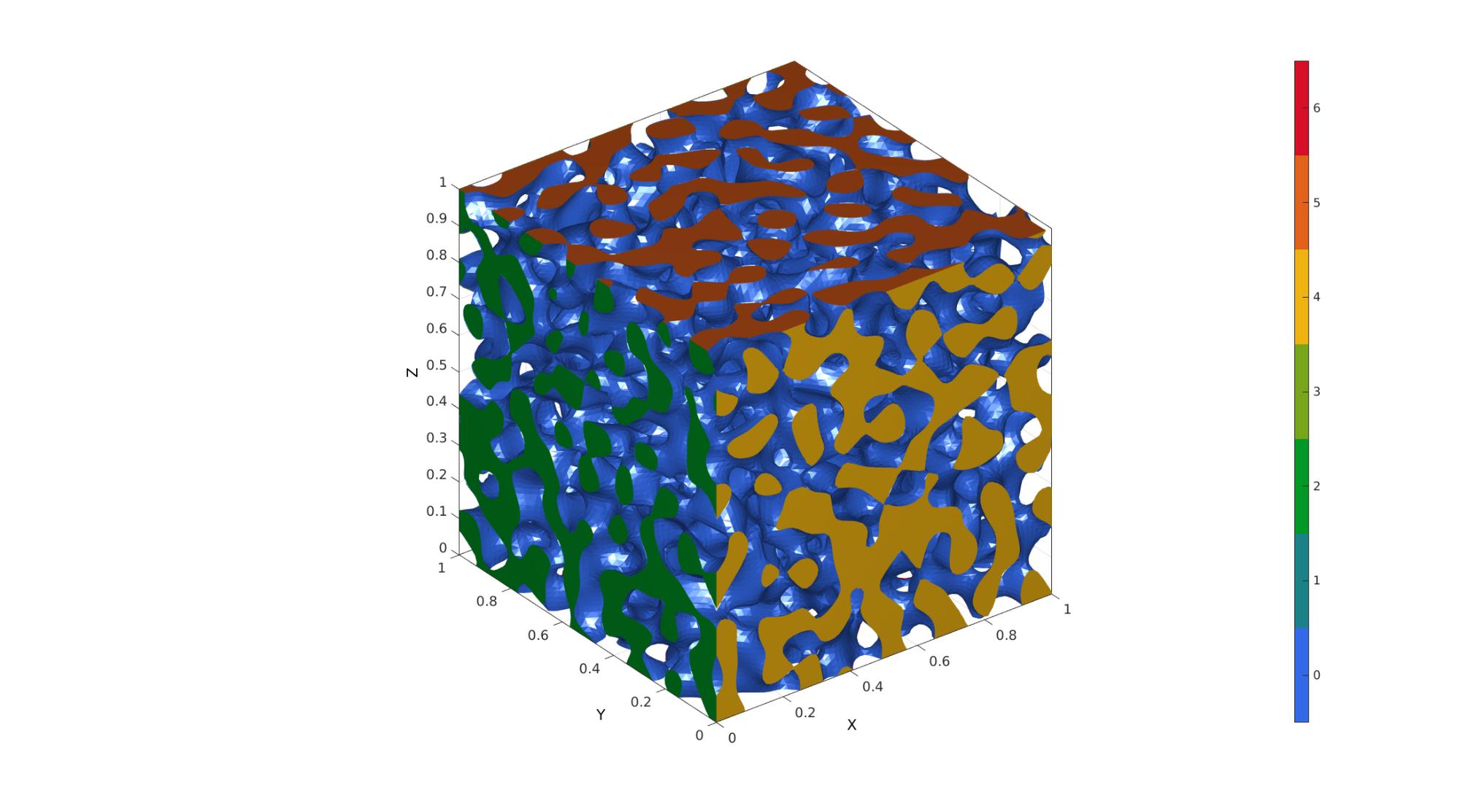

Visualize surface

cFigure;
gpatch(F,V,C,'none');
axisGeom; camlight headlight;
colormap gjet; icolorbar;
gdrawnow;
