triBox

Below is a demonstration of the features of the triBox function

Creating a triangulated mesh of a box

clear; close all; clc;

PLOT SETTINGS

fontSize=15;
faceAlpha1=0.5;

Creating a triangulated mesh of a box

Specifying dimensions and number of elements for each direction

boxDim=[4 5 6]; %Width in each direction
pointSpacing=1; %Desired point spacing

Using triBox to build the patch model

[F,V,faceBoundaryMarker]=triBox(boxDim,pointSpacing);

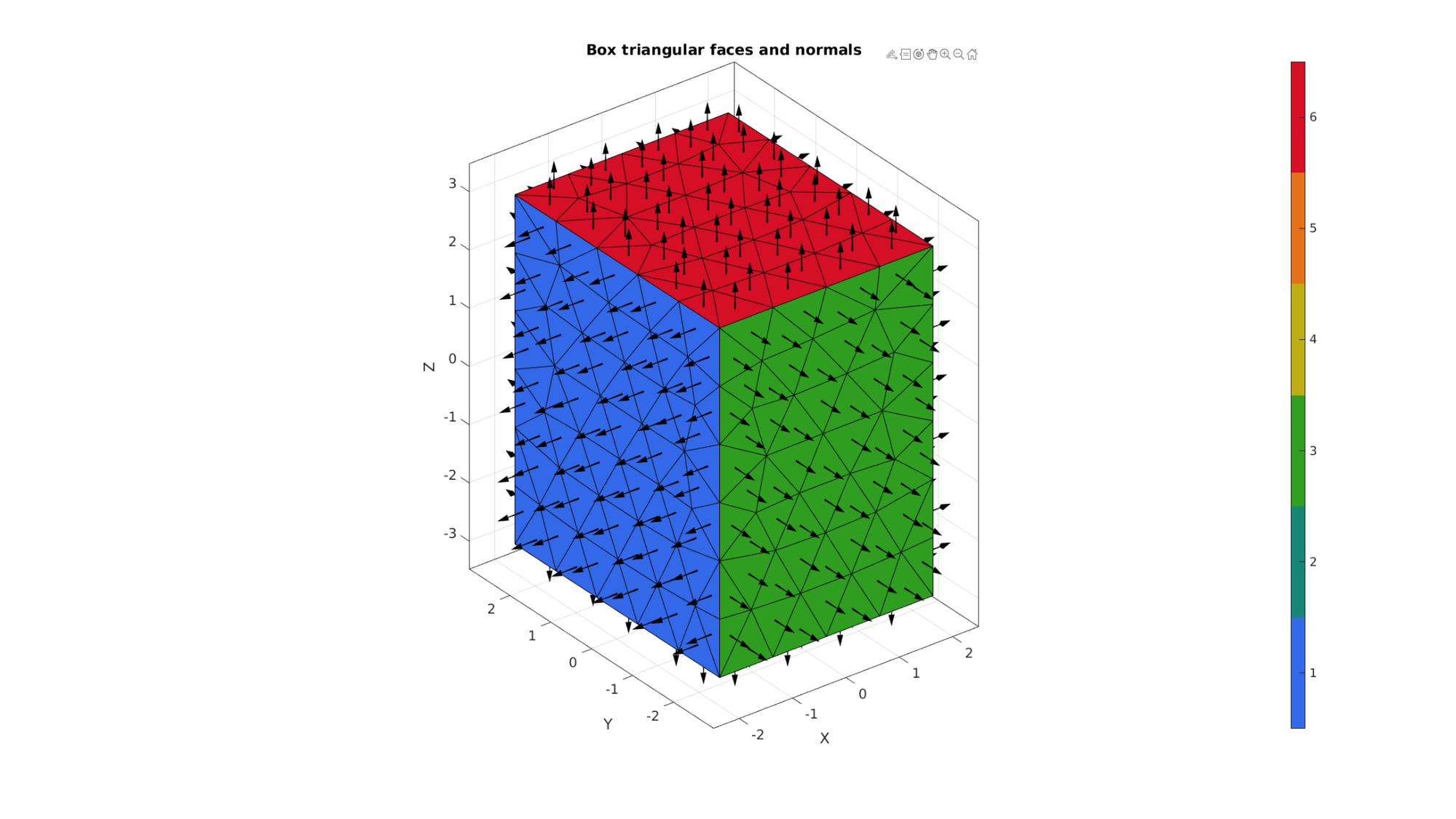

Visualisation

cFigure; hold on;
title('Box triangular faces and normals','FontSize',fontSize);

gpatch(F,V,faceBoundaryMarker,'k',1);
patchNormPlot(F,V);

axisGeom(gca,fontSize);
colormap(gjet(6)); icolorbar;
drawnow;
