triPolyDualRefine

Below is a demonstration of the features of the triPolyDualRefine function

Contents

clear; close all; clc;

Syntax

[Ft,Vt,Ct,indIni]=triPolyDualRefine(F,V);

Description

This function refines a triangulated polyhedron by first creating the dual tesselation and by then triangulating the dual tesselation by reintroducing the original point set near the centres of the dual faces.

Examples

Plot settings

fontSize=15;
faceAlpha=1;
edgeColor=0.*ones(1,3);
edgeWidth=1;
markerSize=15;

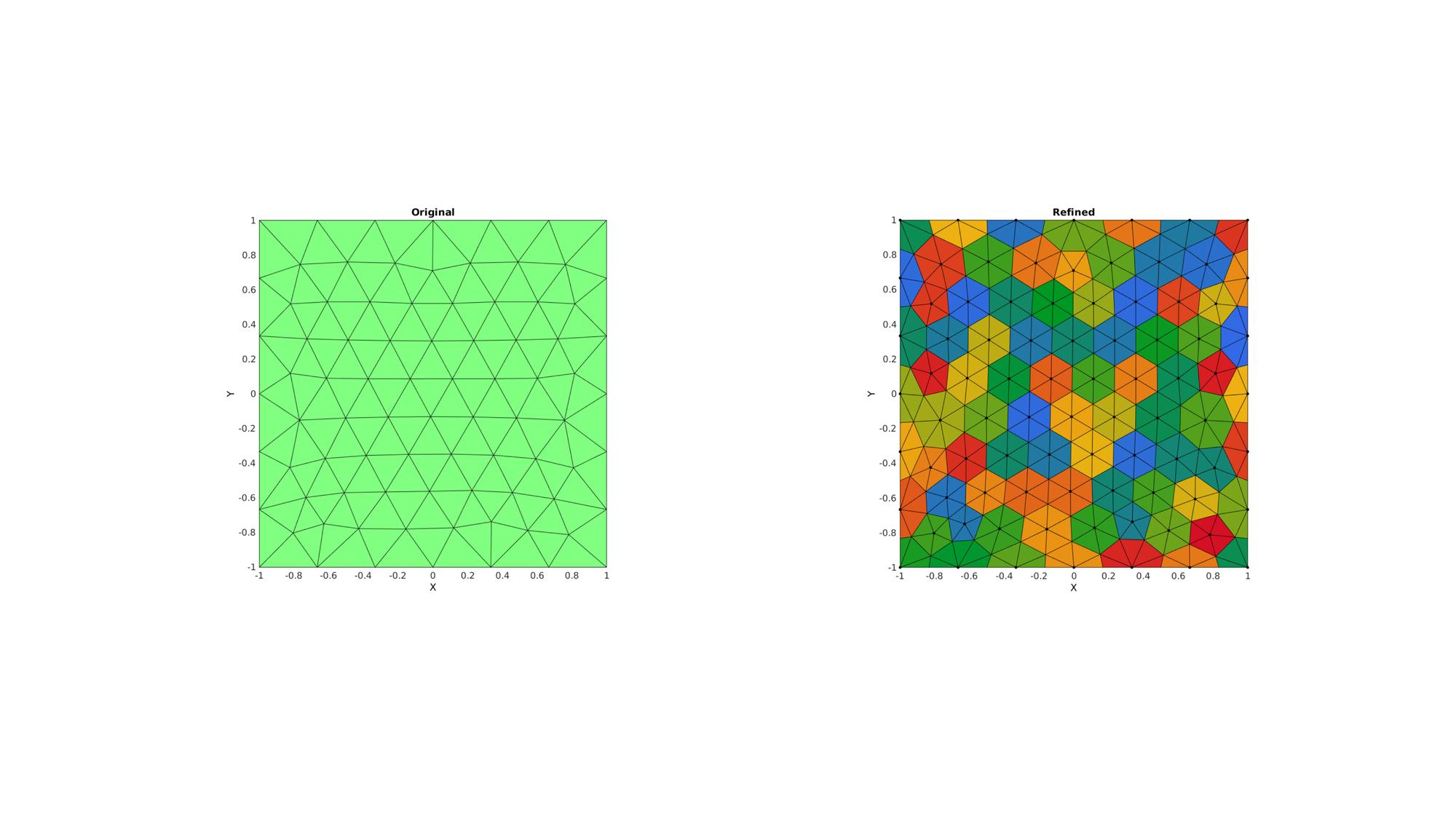

Example: Subtriangulating a triangulated surface

Building example geometry

[F,V]=regionTriMesh2D({[-1 -1; -1 1; 1 1; 1 -1]},0.25,1,0);
V(:,3)=0;

[Fq,Vq,Cq,indIni]=triPolyDualRefine(F,V);

cMap=gjet(size(Fq,1));
cMap=cMap(randperm(size(cMap,1)),:);

cFigure;
subplot(1,2,1); hold on;
title('Original','FontSize',fontSize);
gpatch(F,V,'gw','k');
axisGeom(gca,fontSize);
view(2);

subplot(1,2,2); hold on;
title('Refined','FontSize',fontSize);
gpatch(Fq,Vq,Cq,'k');
plotV(Vq(indIni,:),'k.','MarkerSize',markerSize);
axisGeom(gca,fontSize);
colormap(cMap);
view(2);
drawnow;

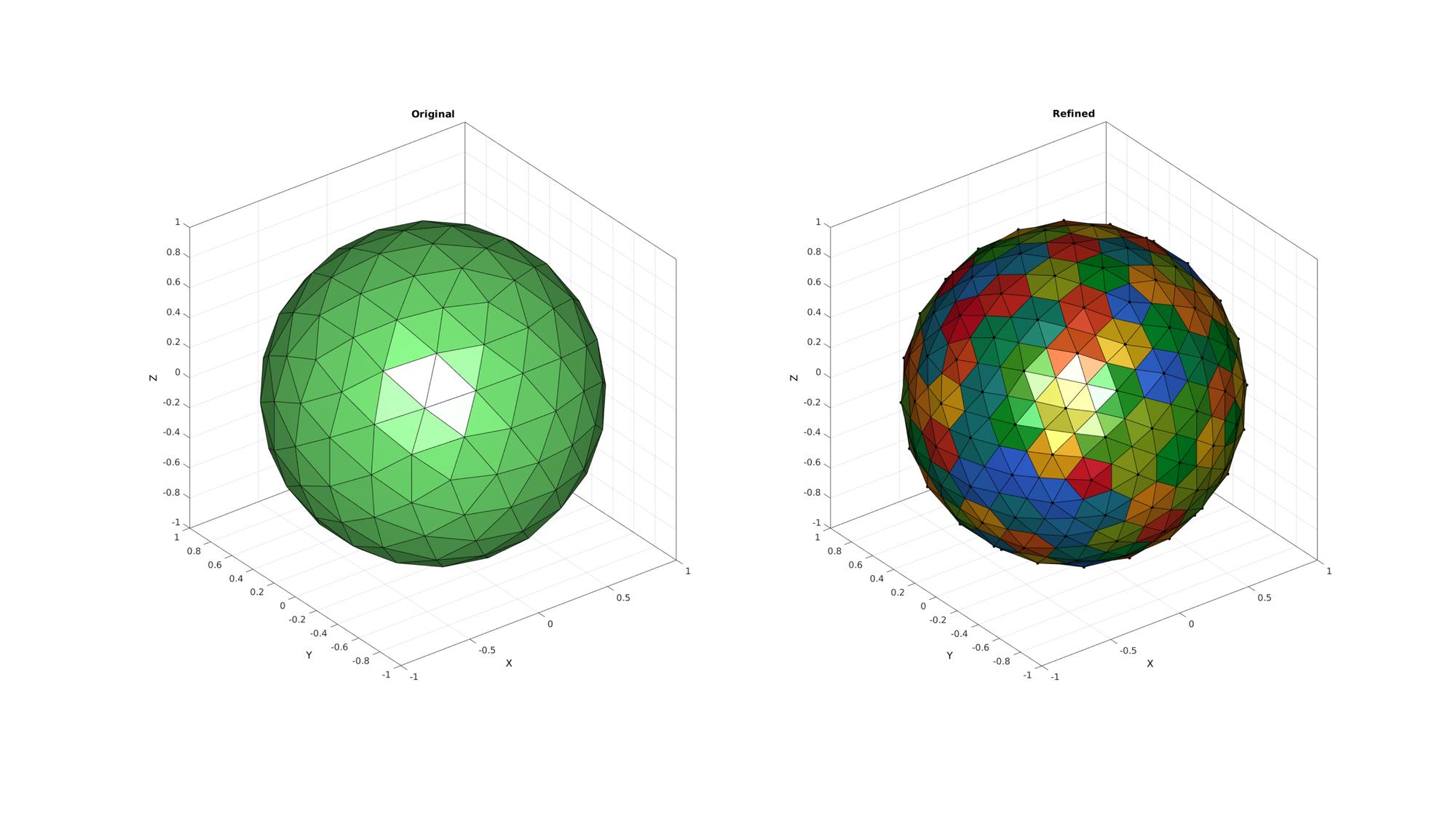

Example: Subtriangulating a closed polyhedron (sphere)

Building example geometry

%Defining geodesic dome
r=1; %sphere radius
n=2; %Refinements
[F,V,~]=geoSphere(n,r);

[Fq,Vq,Cq,indIni]=triPolyDualRefine(F,V);

cMap=gjet(size(Fq,1));
cMap=cMap(randperm(size(cMap,1)),:);

cFigure;
subplot(1,2,1); hold on;
title('Original','FontSize',fontSize);
gpatch(F,V,'gw','k');
axisGeom(gca,fontSize);
camlight headlight;

subplot(1,2,2); hold on;
title('Refined','FontSize',fontSize);
gpatch(Fq,Vq,Cq,'k');
plotV(Vq(indIni,:),'k.','MarkerSize',markerSize);
axisGeom(gca,fontSize);
camlight headlight;
colormap(cMap);
drawnow;

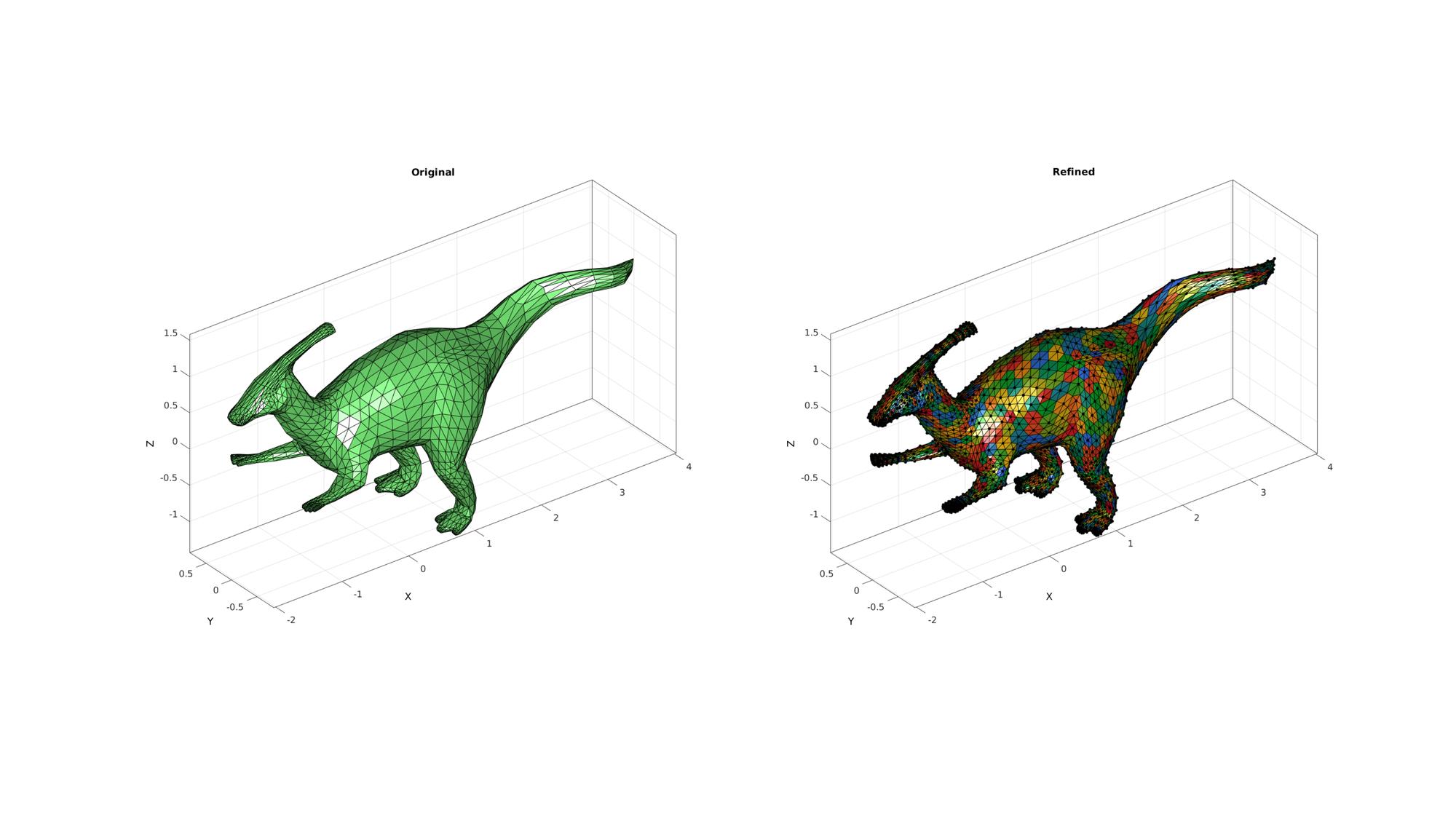

Example: Subtriangulating a closed polyhedron (dinosaur)

Building example geometry

[F,V]=parasaurolophus;

[Fq,Vq,Cq,indIni]=triPolyDualRefine(F,V);

cMap=gjet(size(Fq,1));
cMap=cMap(randperm(size(cMap,1)),:);

cFigure;
subplot(1,2,1); hold on;
title('Original','FontSize',fontSize);
gpatch(F,V,'gw','k');
axisGeom(gca,fontSize);
camlight headlight;

subplot(1,2,2); hold on;
title('Refined','FontSize',fontSize);
gpatch(Fq,Vq,Cq,'k');
plotV(Vq(indIni,:),'k.','MarkerSize',markerSize);
axisGeom(gca,fontSize);
camlight headlight;
colormap(cMap);
drawnow;
