triRemeshLabel

Below is a demonstration of the features of the triRemeshLabel function

Contents

Syntax

[Fb,Vb,Cb]=triRemeshLabel(F,V,pointSpacing);

Description

Use triRemeshLabel to resample and label triangulated surface data.

Examples

clear; close all; clc;

Set path and file name

%Set main folder
defaultFolder = fileparts(fileparts(mfilename('fullpath')));
pathName=fullfile(defaultFolder,'data','STL');

%File name for STL
fileName=fullfile(pathName,'propeller.stl');

Import STL surface model

[stlStruct] = import_STL(fileName);

% Access the data from the STL struct
F=stlStruct.solidFaces{1}; %Faces
V=stlStruct.solidVertices{1}; %Vertices

% Merging nodes
[F,V]=mergeVertices(F,V);

pointSpacing=6;
[Fb,Vb,Cb]=triRemeshLabel(F,V,pointSpacing);

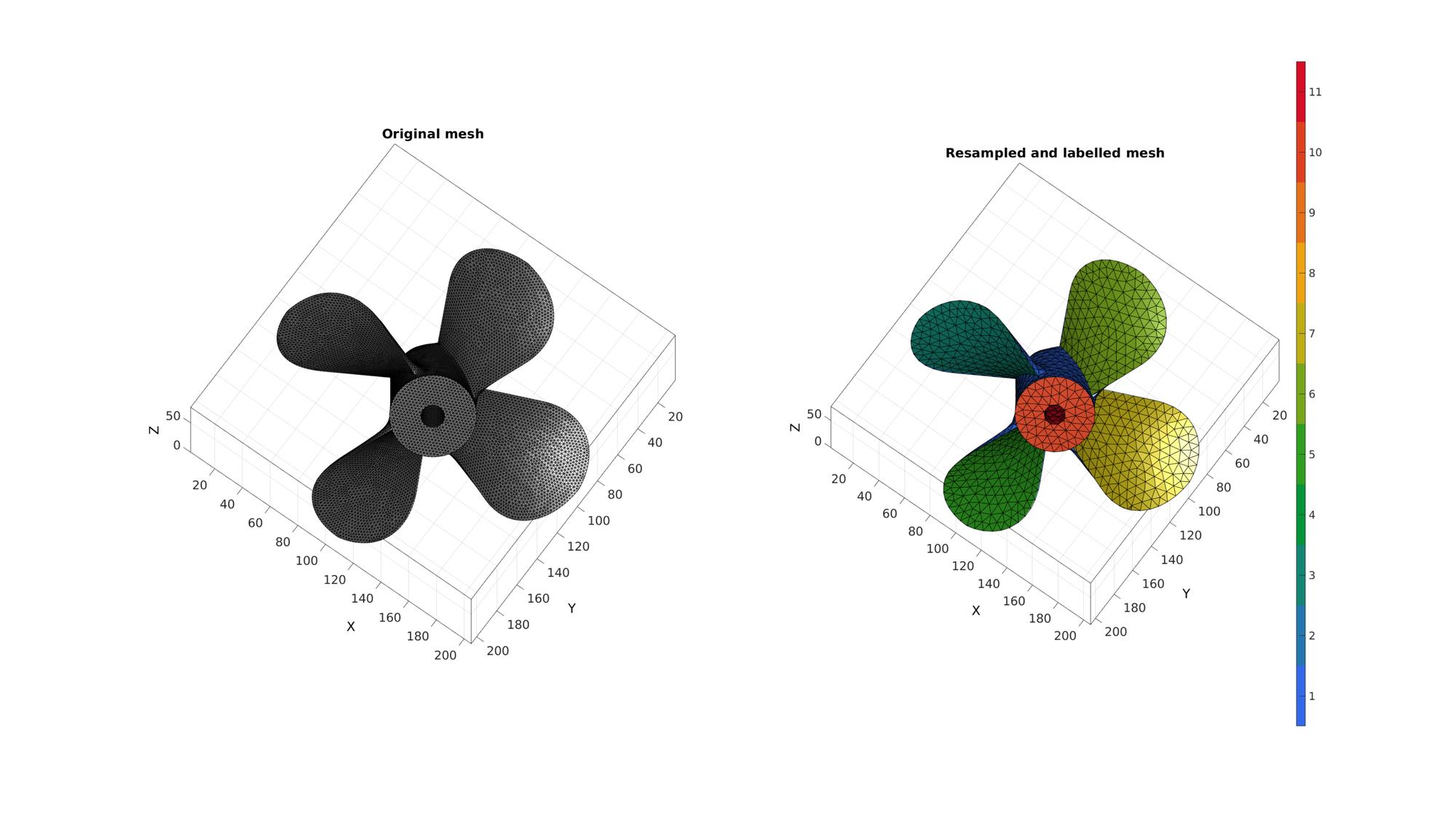

cFigure;
subplot(1,2,1); hold on;
title('Original mesh');
gpatch(F,V,'kw','k',1);
axisGeom;
view(-36,-70);
camlight headlight;

subplot(1,2,2); hold on;
title('Resampled and labelled mesh');
gpatch(Fb,Vb,Cb,'k',1);
axisGeom;
view(-36,-70);
camlight headlight;
colormap(gjet(250)); icolorbar;

drawnow;
