Below is a demonstration of the features of the vcw function

Syntax
Description
Examples
Using the preloaded view control widget (vcw) in cFigure
Use with figure
Tip
Automatically activating vcw in a script

Syntax

vcw(hf,buttonOpt);

Description

The vcw function, the view control widget, allows the user to rotate, pan and zoom a figure using key presses and mouse gestures. This makes 3D view manipulation feel like what one would expect of a CAD package.

The vcw widget is loaded by default when using cFigure but can be loaded for any other figure by using:

figure; vcw;

You can load vcw either before or after creating axes. Once vcw is added as a button based widget to a figure window, it can be activated by pressing the button or by pressing the 'v' key. Furthermore calling vcw, when the widget is already present, will activate it as well. It is recommended to activate vcw once all graphics entities and plotting objects have been created.

Once loaded users may press v key to activate widget (or press the toolbar button). Press i to show the following help information:

Examples

clear; close all; clc;

Using the preloaded view control widget (vcw) in `cFigure`

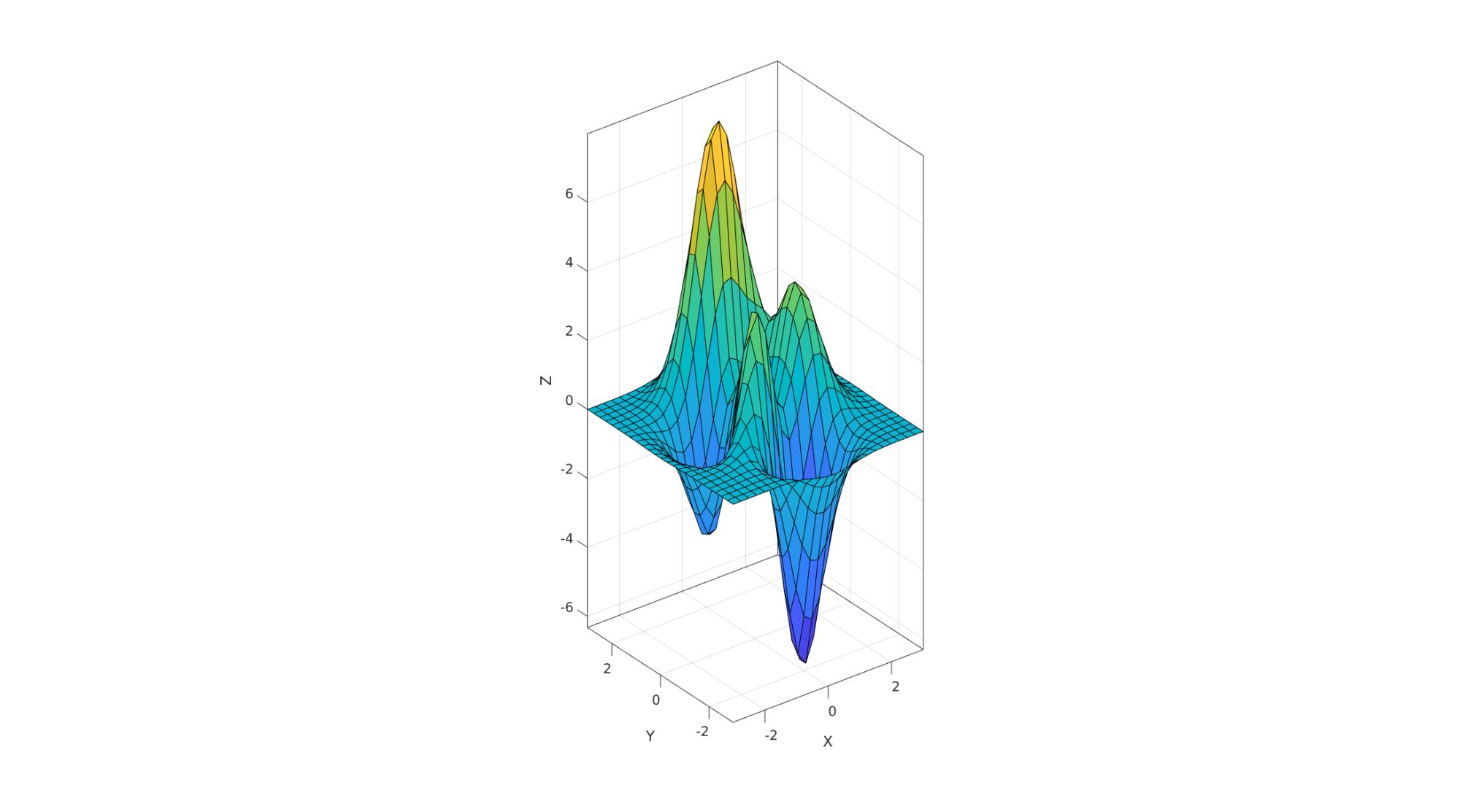

A cFigure window with the view control widget loaded by default. To activate widget press v or click on vcw button in the toolbar.

Use with `figure`

The default MATLAB figure does not contain the view control widget. To load it here the user must enter vcw; either before or after axes are created. e.g.:

figure; surf(peaks(25)); axis equal; axis tight; vcw;

which is equivalent to:

figure; vcw; surf(peaks(25)); axis equal; axis tight;

Tip

You can create your own figure function that simply contains figure; vcw; to create a standard MATLAB figure containing the view control widget.

Automatically activating vcw in a script

Below several examples are provided to automatically activate vcw in a script.

Some example data

[X,Y,Z]=peaks(25);

METHOD 1: Calling gdrawnow for a figure window with the vcw button present

cFigure; %Opens a cFigure window which contains the vcw button
surf(X,Y,Z); %Visualize something in an axis
axisGeom; %Set axis options for geometry viewing
gdrawnow; %drawnow and activate vcw

METHOD 2: Calling vcw for a figure window with the vcw button (same as calling gdrawnow)

cFigure; %Opens a cFigure window which contains the vcw button
surf(X,Y,Z); %Visualize something in an axis
axisGeom; %Set axis options for geometry viewing
vcw; %Activate vcw

METHOD 3: By manually changing button state

The vcw button can be accessed from the figure UserData structure. E.g. if hf is the figure handle then the state for the button is found at: hf.UserData.vcw.buttonHandle.State

hf=cFigure; %Opens a cFigure window which contains the vcw button
surf(X,Y,Z); %Visualize something in an axis
axisGeom; %Set axis options for geometry viewing
drawnow;

%Manually toggle to button
hf.UserData.vcw.buttonHandle.State='On'; %Activate vcw
